Removing and Installing/Replacing Starter Motor

12 41 020 - Removing and installing/replacing starter motor (N62, N62TU)





Necessary preliminary tasks:
- Switch off ignition
- Follow instructions for disconnecting and connecting battery
Disconnect battery negative lead and cover
- Remove reinforcement plate Service and Repair
- E60/E63/64/E65/E66 only: Remove right exhaust manifold Removing and Installing / Replacing Right Exhaust Manifold

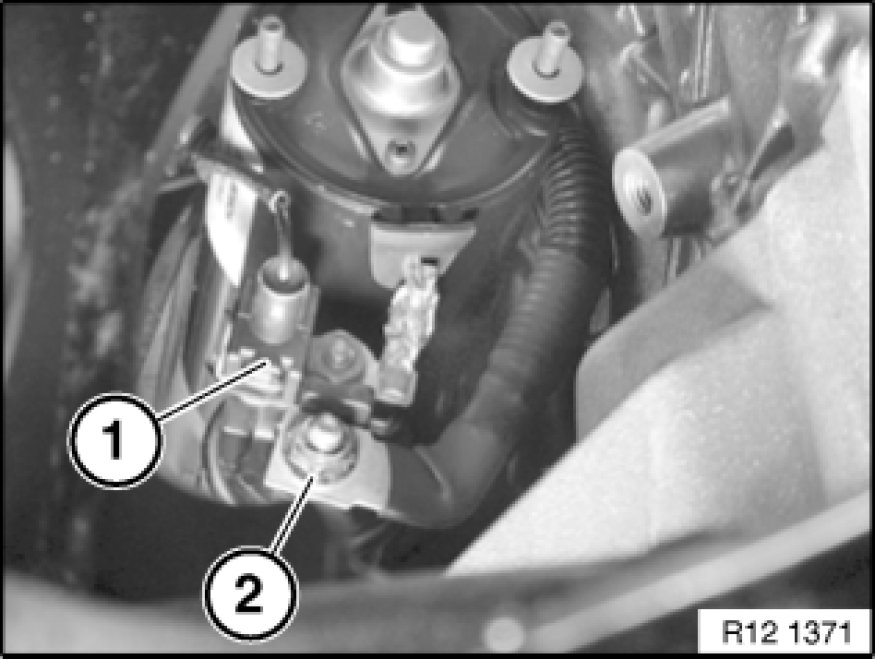

Release screw and nut.
Remove heat shield (1).





Unfasten nut.
Tightening torque 12 41 4AZ 12 41 Starter and Mounting Parts.
Unlock plug (1) and remove.





Release screws and pull starter motor out of transmission mounting and remove.
Tightening torque 12 41 1AZ 12 41 Starter and Mounting Parts.





Installation Note:
Check starter pinion and ring gear for damage, replace damaged parts if necessary.
