Ignition Coil: Service and Repair

12 13 511 - Replacing ignition coil (N62TU)





Necessary preliminary tasks:
- Switch off ignition
- Remove intake filter housing Service and Repair

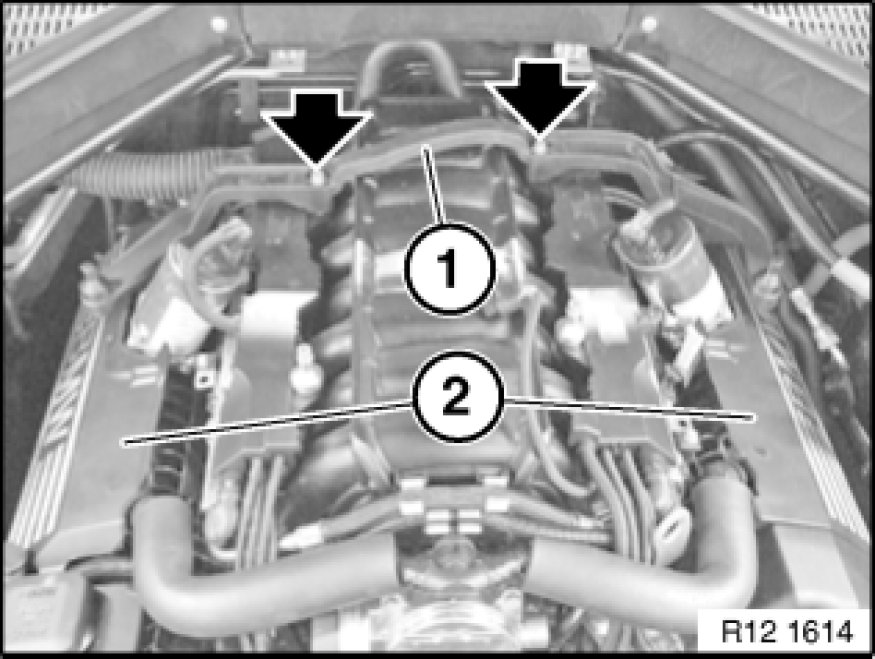

Release screws and remove holder (1).

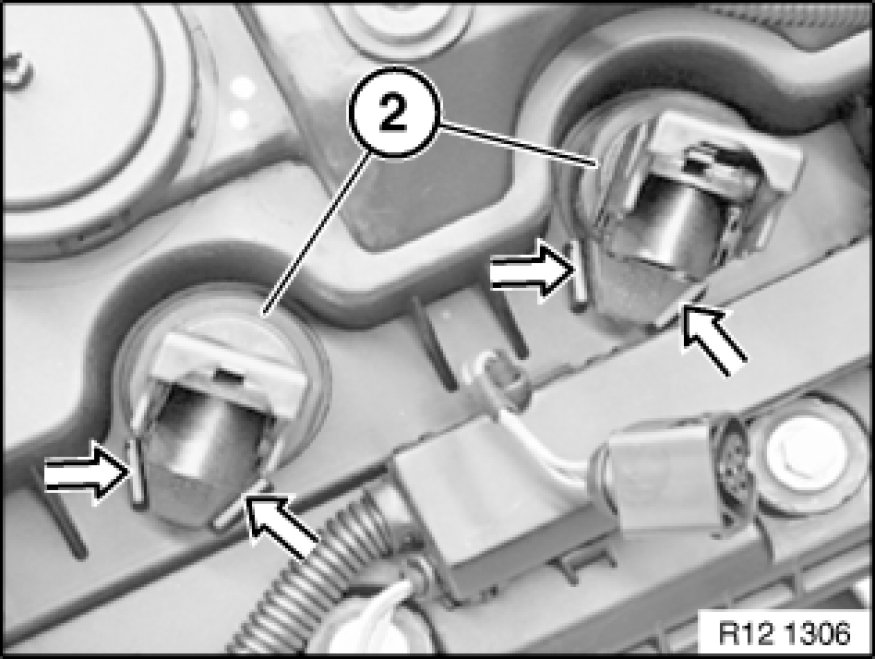

Pull ignition coil covers (2) out of rubber grommets.

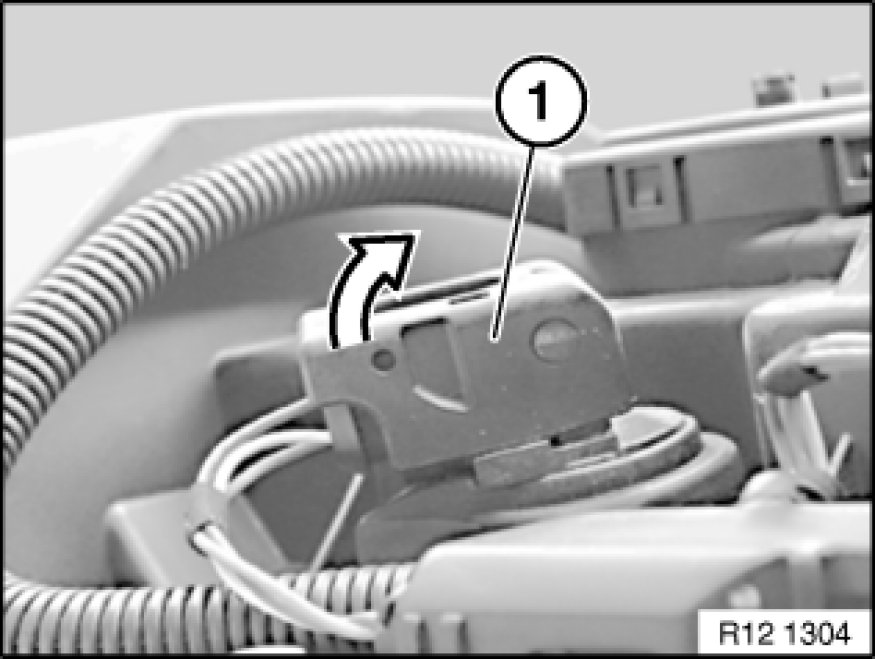

Unlock plug fastener (1) of ignition coil.

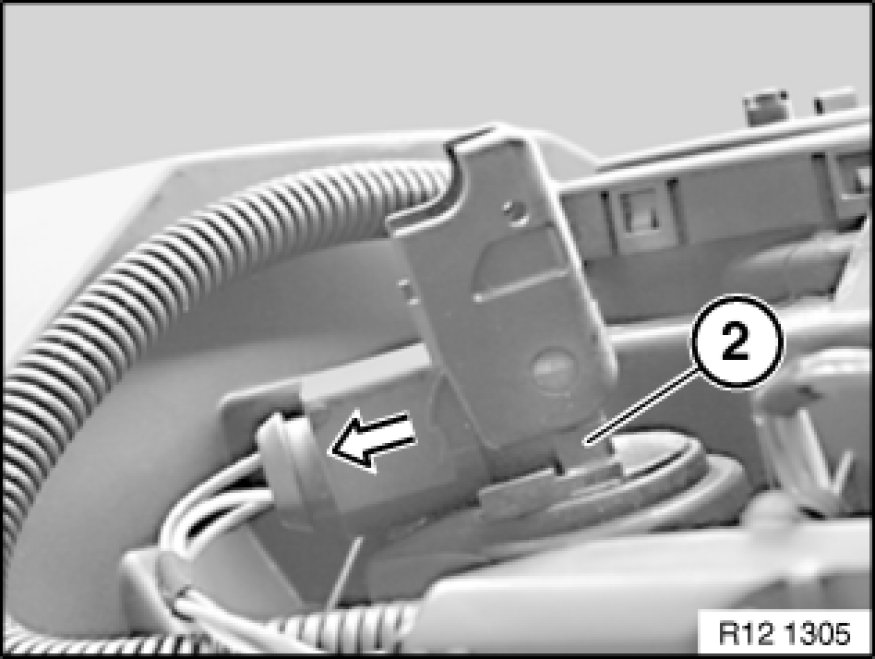

Detach ignition coil connector in direction of arrow.
Pull out ignition coil (2).
This procedure is applicable to all ignition coils.





Installation Note:
Insert rubber seal on ignition coils (2) between guides.





Assemble engine.

Note:
Read out DME fault memory.
Check function of DME.
