Removing and Installing/Replacing Vibration Damper (N62/N62TU)

11 23 010 - Removing and installing/replacing vibration damper (N62/N62TU)





Necessary preliminary tasks:
- Remove alternator drive belt Replacing Alternator Drive Belt
- Remove A/C compressor drive belt
- Remove fan cowl

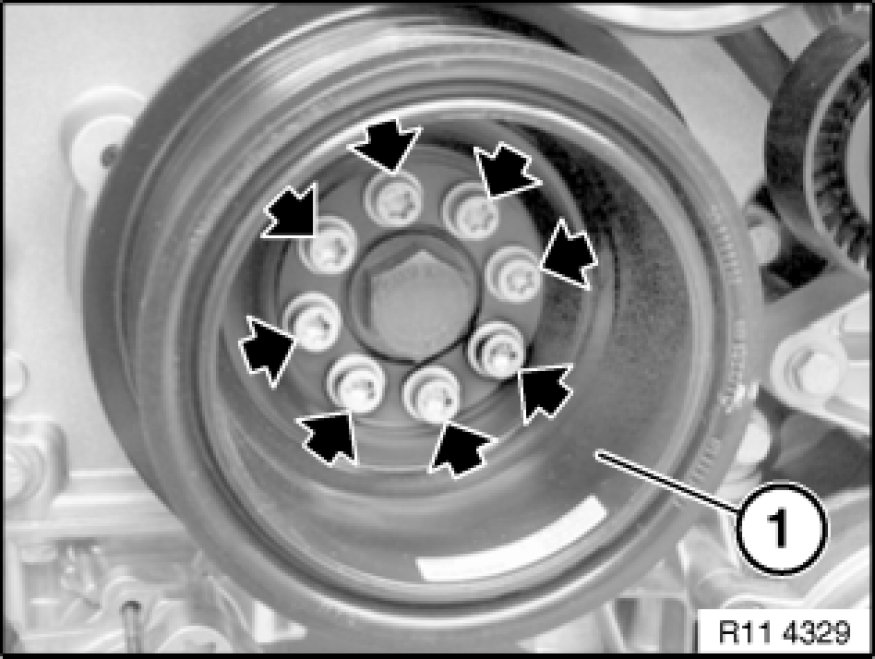

Release bolts and remove vibration damper (1).

Note:
On BMW ALPINA B7 vehicles, the additional radial compressor belt pulley must be removed as well.
When replacing the bolts, bear in mind the altered bolt length in BMW ALPINA B7 vehicles.





Installation:

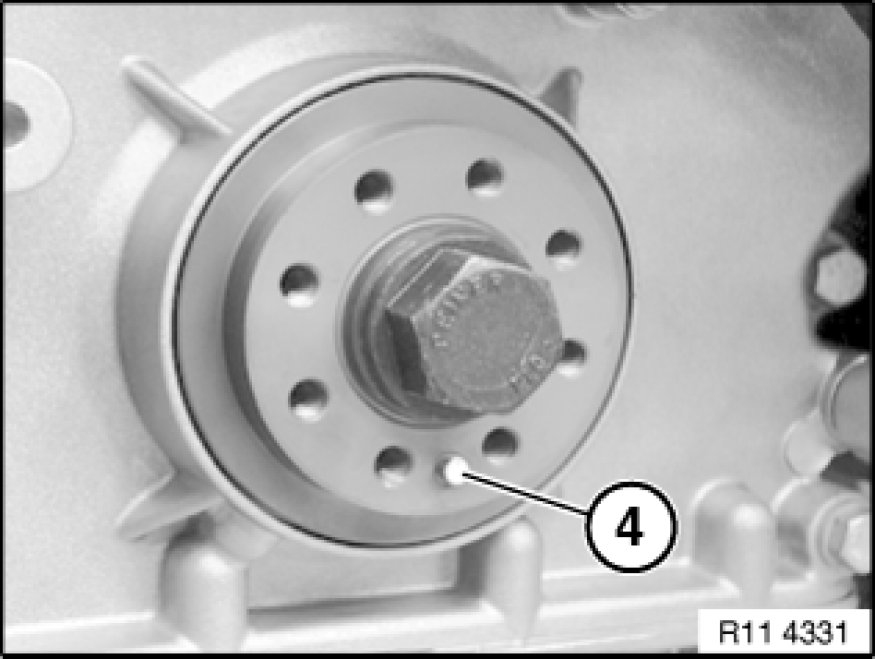

Vibration damper is secured on hub with an alignment pin (4).





Installation:

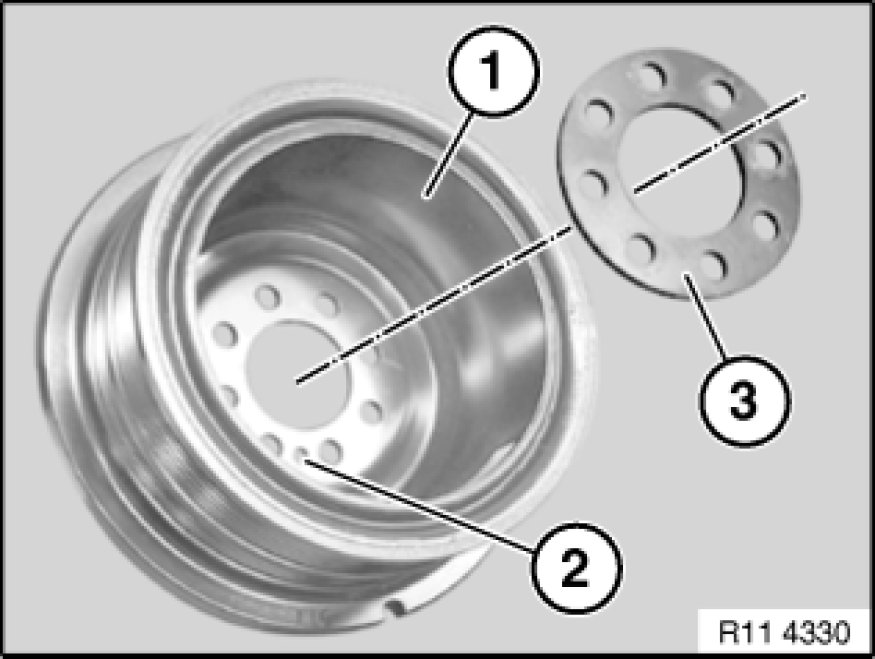

Fit bore (2) in vibration damper (1) on alignment pin in hub.

Fit disk (3).

Replace screws.
Tightening torque 11 23 3AZ 11 23 Vibration Damper.
