Replacing Pressure Line for Power Steering (N52/N53/AWD)

32 41 332 - Replacing pressure line for power steering (N52/N53/AWD)





Warning!
Danger of poisoning 00 .. ... Danger of Poisoning If Oil Is Ingested/Absorbed Through the Skin if oil is ingested/absorbed through the skin!
Risk of injury 00 .. ... Risk of Injury If Oil Comes Into Contact With Eyes and Skin if oil comes into contact with eyes and skin!

Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.





Recycling:
Catch and dispose of hydraulic fluid in a suitable container.
Observe country-specific waste-disposal regulations





Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Remove front underbody protection Removing and Installing / Replacing Front Underbody Protection
- Partially remove steering gear cover





N52:
Release union screw and detach pressure line from vane pump.

Installation Note:
Replace sealing ring.
Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.
Tightening torque 32 41 3AZ Pump and Oil Supply.





N53:

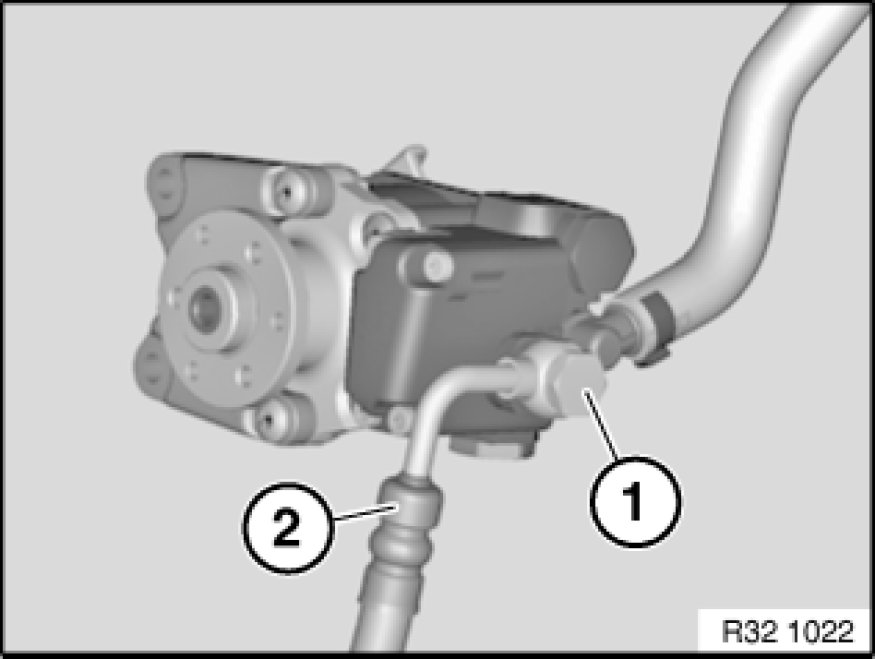

Release banjo bolt (1) and detach pressure line (2) from vane pump.

Installation Note:
Replace all sealing rings.
Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.
Tightening torque 32 41 3AZ Pump and Oil Supply.

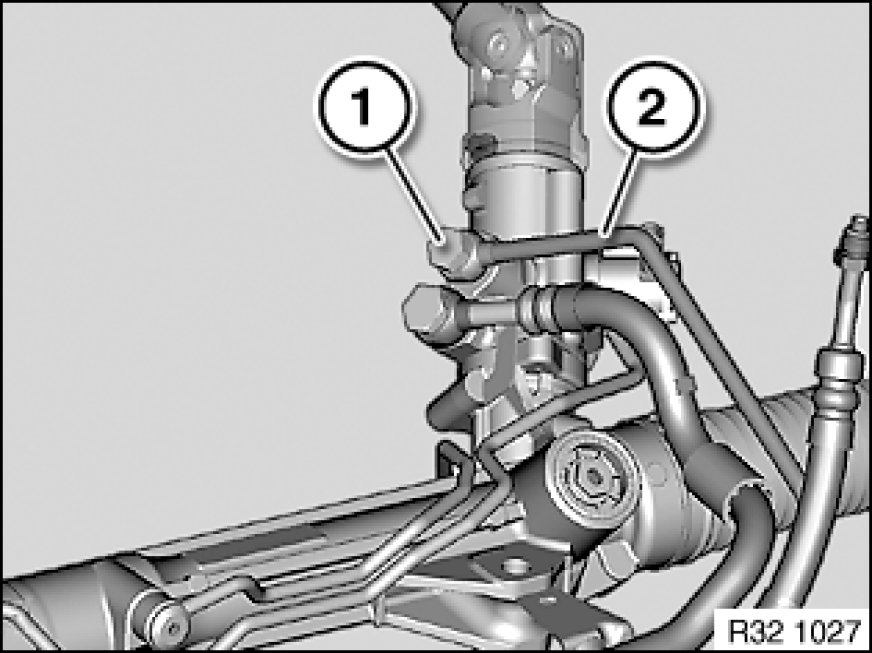

Expose pressure line up to connection on power steering gear.





Release banjo bolt (1) and remove pressure line (2).

Installation Note:
Replace all sealing rings.
Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.
Tightening torque 32 41 3AZ Pump and Oil Supply.





After installation:
- Fill and bleed hydraulic system Service and Repair
- Check pipe connections for leaks
