51 34 160 Removing and Installing/Replacing Housing Cover on Inner Left or Right Door Window Frame

51 34 160 - Removing and installing/replacing housing cover on inner left or right door window frame





Necessary preliminary tasks:
- Open door window.
- Remove rear door trim panel

Security version:
Cover is designed as armor plating and bonded to door window frame, replacement is not possible.





Version with roller sun blind on rear door:

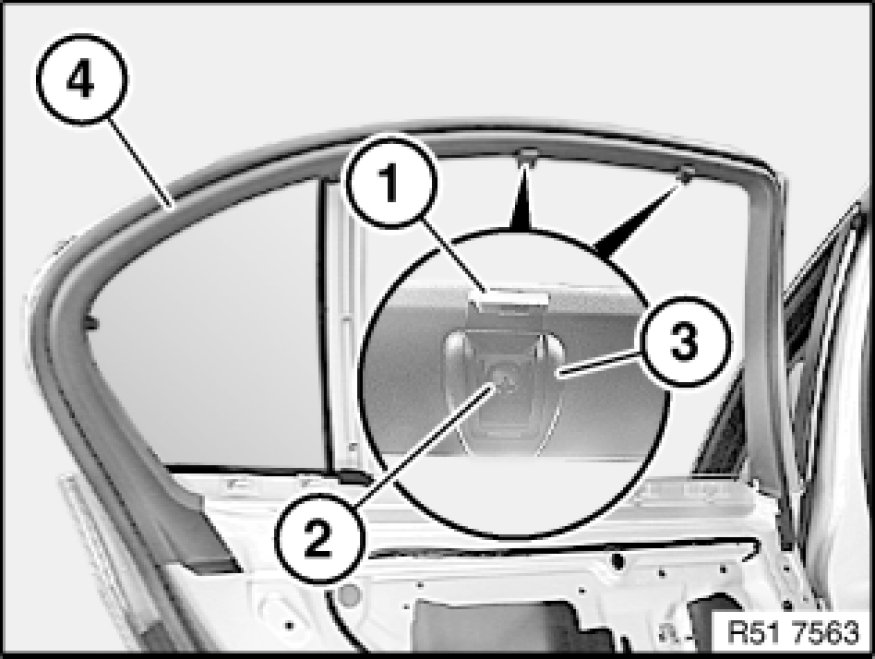

If necessary, unclip cover (1) and release screw (2) underneath.

Remove hook (3) on cover (4).





Replacement:

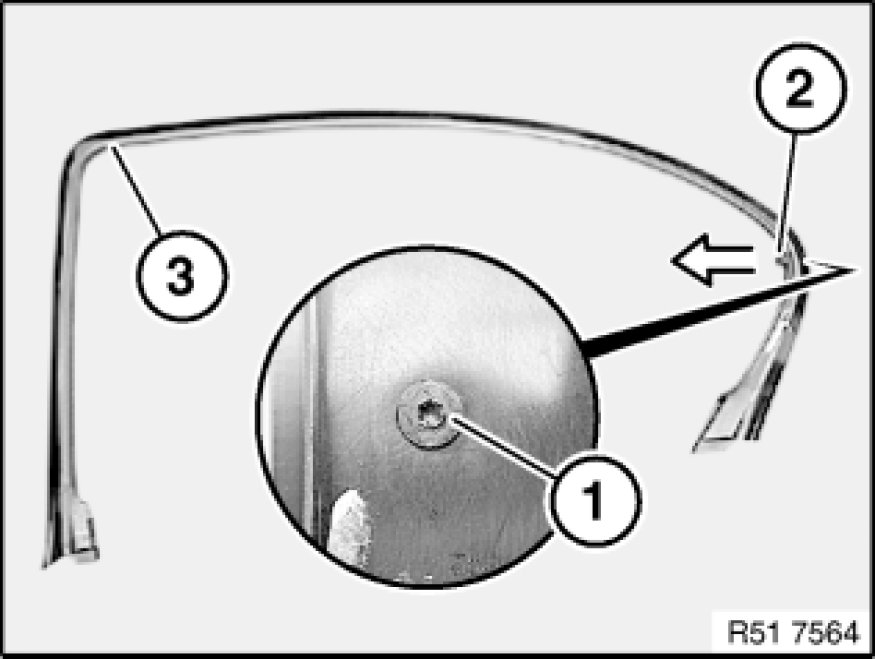

If necessary, release screw (1) on hook (2).

Remove hook (2) in direction of arrow from cover (4).





Version without roller sun blind:

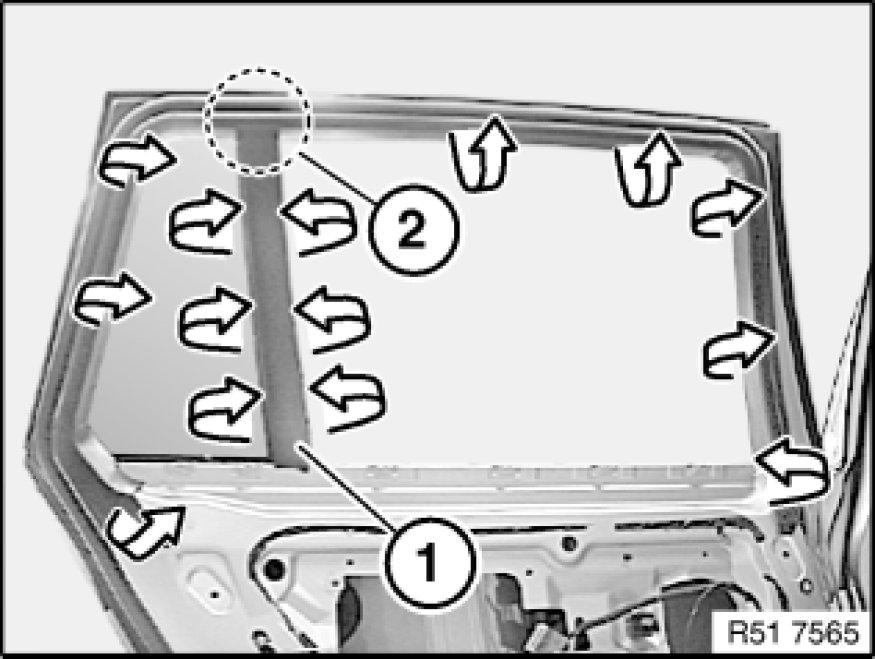

If necessary, lever out cover (1) in direction of arrow.

Note:
Do not tear off cover (1) in area (2).





Installation:
Following parts of cover (1) must not be damaged:

2 - All-round guide
3 - Connection point
