51 14 110 Removing and Installing/Replacing Rear Model Designation

51 14 110 - Removing and installing/replacing rear model designation





Important!
The "Instructions for number/letter combination cementing 51 14 ... Instructions For Attaching Number/Letter Designation Combination" serve as the basis for these repair instructions and must be followed without fail.

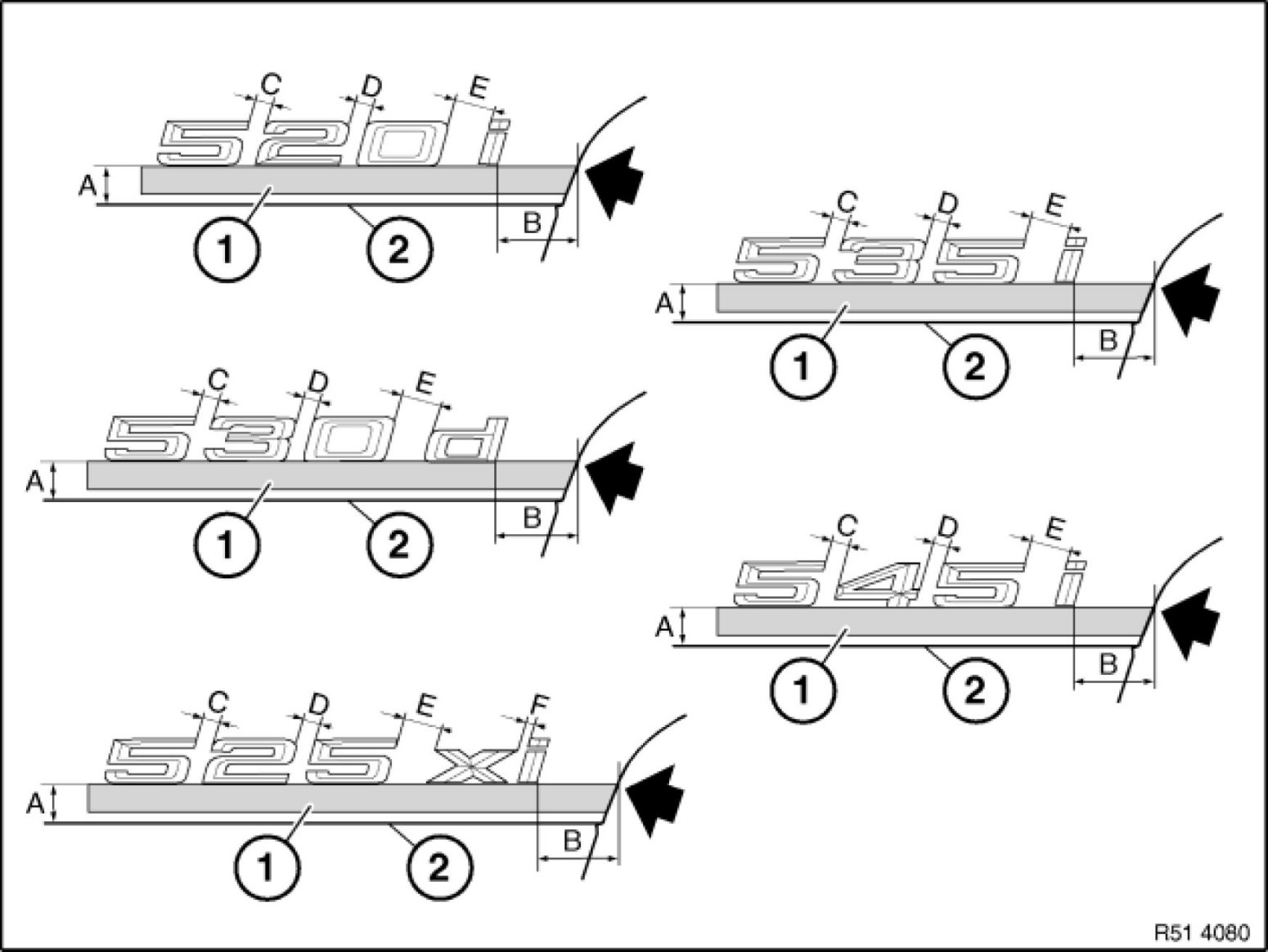

Fitting dimensions (E60, E61):





Stick on adhesive tape (1) between edge of rear lid (2) and top edge "A". Mark measurement "B" from top edge "A" to outer edge of rear lid on adhesive tape (1).
Dimensions:





Note:
Measurements C, D and E are for information purposes only, as determined by carrier film.

520 i...540 i, 550 i: C = 7 mm, D = 7 mm, E = 20 mm

545 i: C = 4 mm, D = 5 mm, E = 20 mm

520 d...535 d: C = 7 mm, D = 7 mm, E = 20 mm

525 xi...535 xi: C = 7 mm, D = 7 mm, E = 20 mm, F = 5 mm

525 xd...530 xd: C = 7 mm, D = 7 mm, E = 20 mm, F = 5 mm

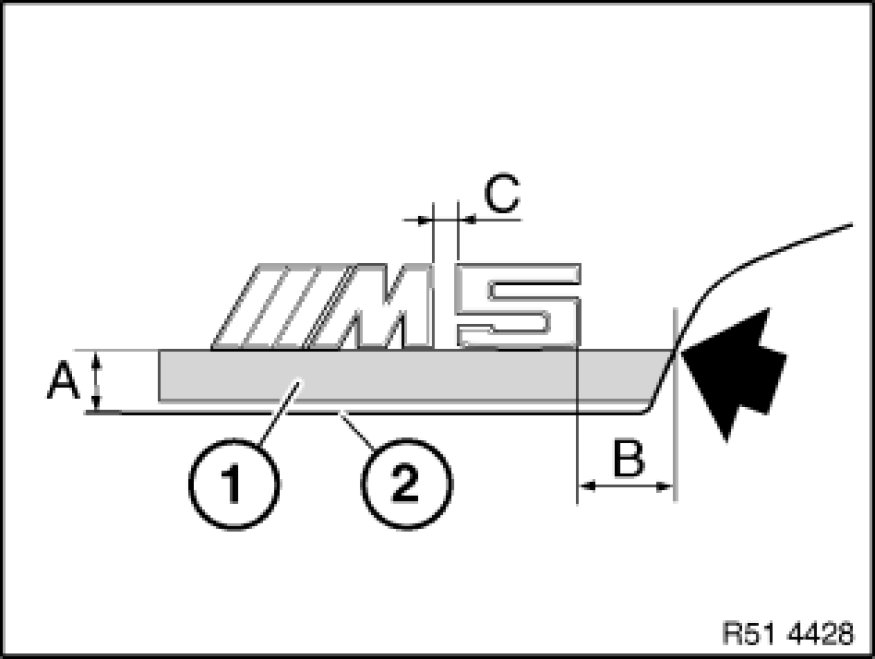

M5 only
Attach adhesive tape (1) between edge of rear lid (2) and top edge measurement "A".
Mark out measurement "B" from top edge "A" to outer edge of rear lid on adhesive tape (1).

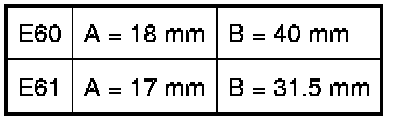

Measurements E60:
A = - 24 mm
B = - 33 mm
E61 dimensions:
A = - 22 mm
B = - 20 mm

Note:
Measurement C is for information purposes only, as it is determined by carrier film.
C = - 9 mm
