Removing and Installing/Replacing Left Mounting Bracket (N52/N52K/N53/N54)

22 11 130 - Removing and installing/replacing left mounting bracket (N52/N52K/N53/N54)





Necessary preliminary tasks:
- Secure engine in installation position Securing Engine In Installation Position (N52, N53).
- Remove front underbody protection.
- Remove left engine support arm Replacing Left Engine Support Arm (N52/N52K/N53).
- Remove left engine mount Replacing Left Engine Mount (N52/N52K/N53).
- Observe safety instructions on raising the vehicle 00 .. ... Lifting Vehicle With A Lifting Platform.

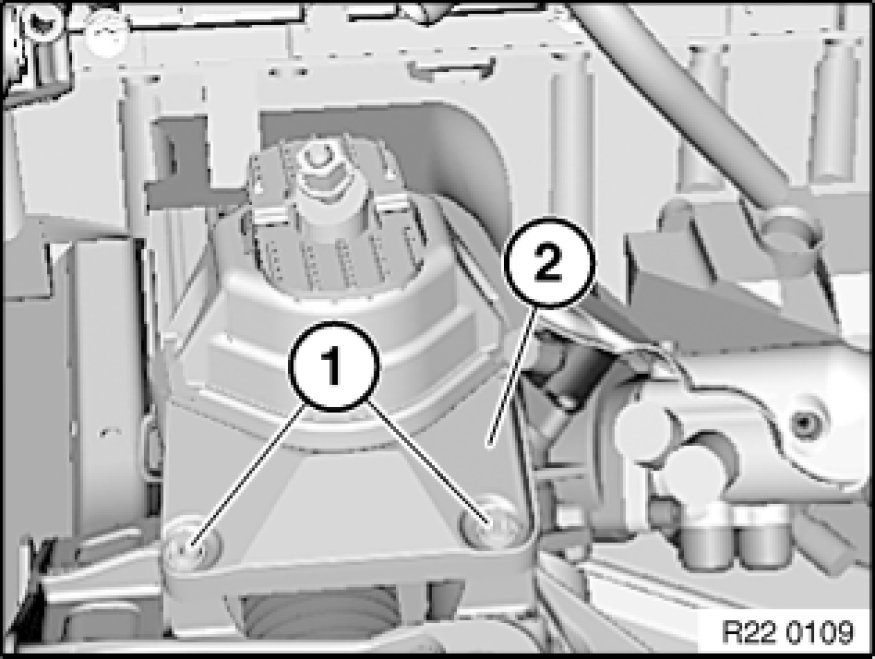

Release screws (1) and remove mounting bracket (2).
Tightening torque 22 11 5AZ Specifications.

Note:
Illustration shows installed engine mount.
