51 12 ... Removing and Installing/Replacing Lower Cover on Rear Bumper




51 12 ... - Removing and installing/replacing guide for bumper at rear bottom middle

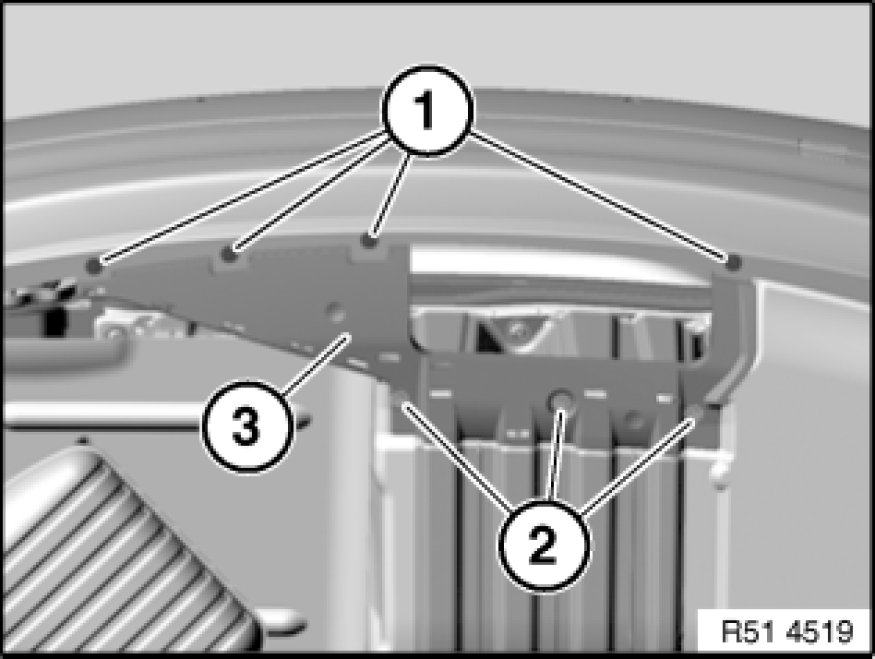

Release screws (1 and 2) and remove guide (3).
