Quarter Window Glass Weatherstrip: Service and Repair

51 37 242 - Replacing outer window cavity cover strip for rear left or right side window





Special tools required:






Important!
Window cavity cover strip must be replaced after every removal.





Note:

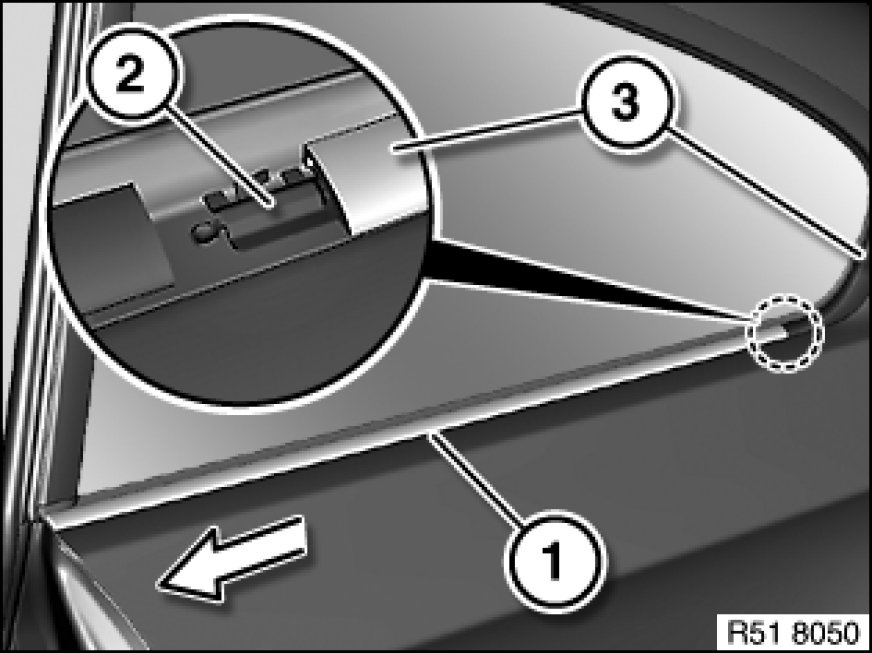

Window cavity cover strip (1) is attached with retaining clip (2) to trim strip (3).

Pull window cavity cover strip (1) in direction of arrow off side window glass.

If necessary, position special tool 00 9 317 on window cavity cover strip (1) and knock off from retaining clip (2).

Installation Note:
Make sure clip (2) is correctly seated.
