25 16 056 Removing and Installing/Replacing Shift Tower (Steptronic)

25 16 056 - Removing and installing/replacing shift tower (AWD) (Steptronic)





Necessary preliminary tasks:
- Remove rear underbody protection.
- Remove centre console 51 16 200 Removing and Installing Storage Compartment.





Move selector lever to parking position "P".
Release screw (1).
Tightening torque 25 16 2AZ Specifications.
Remove clamp (2).
Release shift cable head (3) using a screwdriver from ball head of shift cable lever.

Installation Note:
Adjust selector lever Adjustments

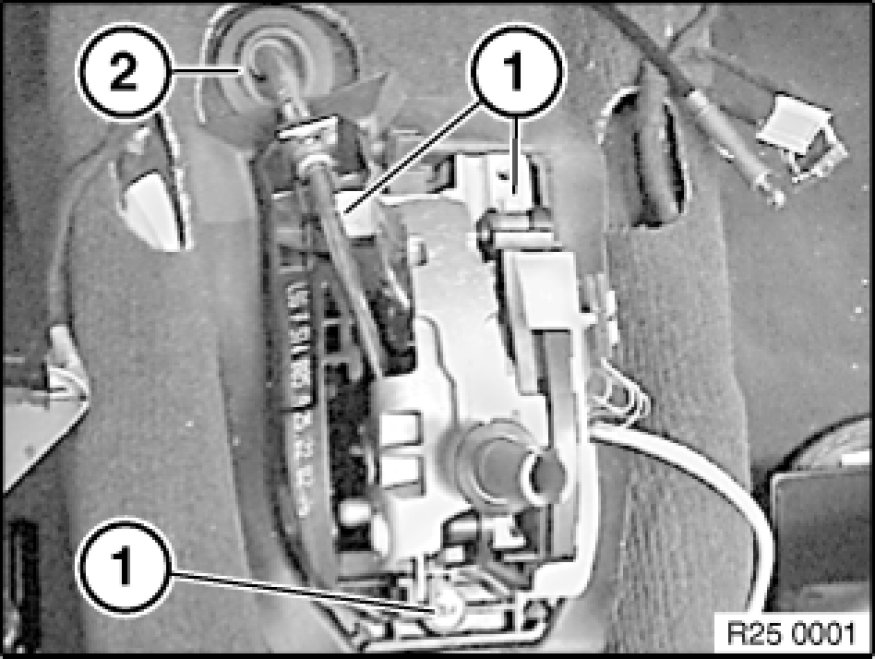

Release screws (1).
Tightening torque: 25 16 3AZ Specifications.
Feed sleeve (2) out of body.
Lift shift tower out of centre console.






Installation:

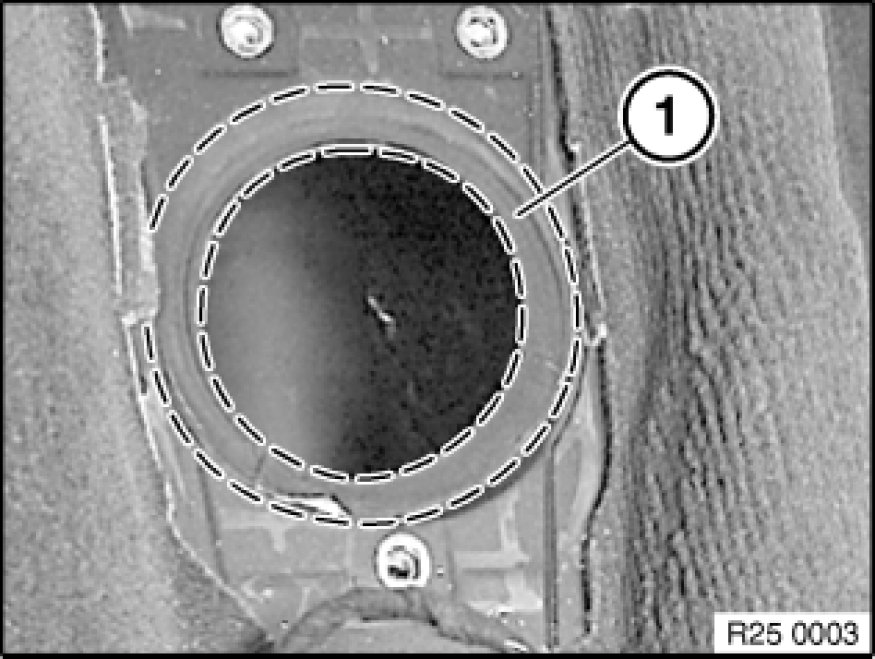

Seal must not be damaged.
