Removing and Installing/Replacing Complete Ceiling Light (Rear)

63 31 003 - Removing and installing/replacing complete ceiling light (rear)





Special tools required:
- 00 9 317






Important!
Follow instructions for handling light bulbs (interior lights) [1][2]63 99 ... Instructions For Replacing Light Bulbs (Interior Lights).





Important!
Ceiling light (1) and roofliner must not be damaged.

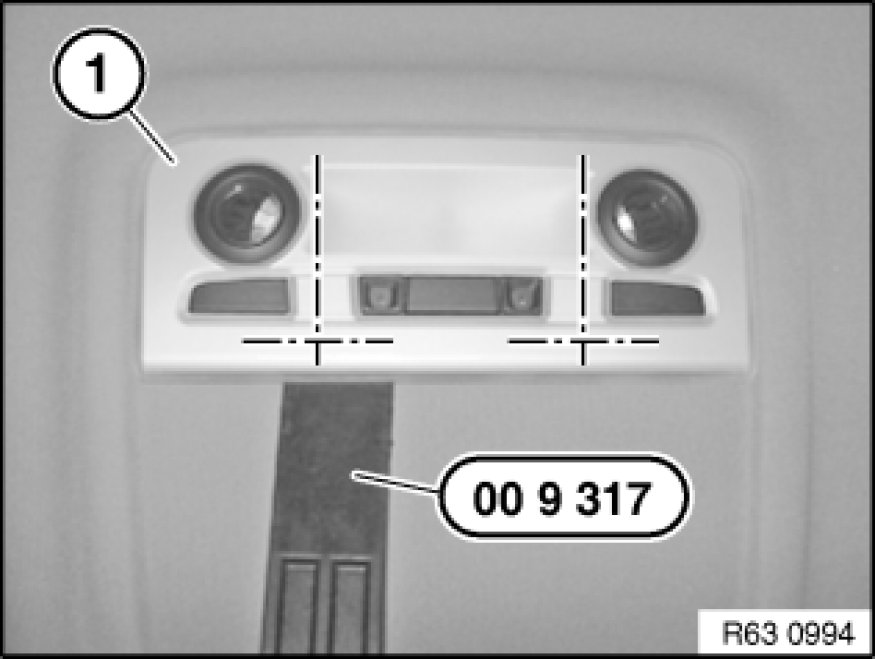

Carefully unlock both retaining clips with special tool 00 9 317 and lever ceiling light (1) out of roofliner.

Disconnect plug connection underneath and remove ceiling light (1).

Replacement:

If necessary, remove bulbs Replacing Bulb for Rear Ceiling Light.
