Replacing Right Engine Mount

22 11 001 - Replacing right engine mount (N54) AWD





Necessary preliminary tasks:
- Secure engine in installation position Securing Engine In Installation Position
- Remove underbody protection
- Remove reinforcement plate Service and Repair

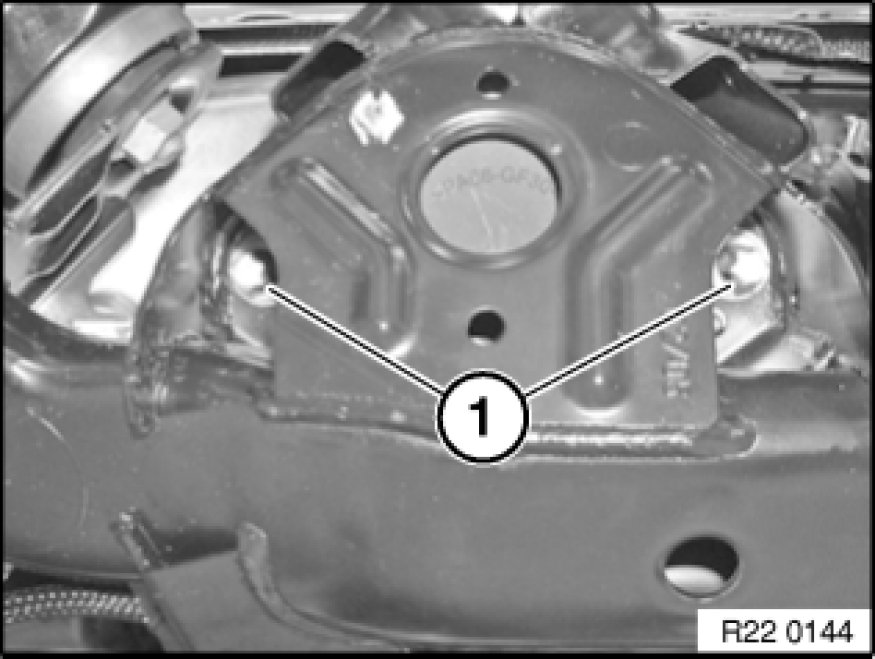

Release screws (1) and remove engine mount.
Tightening torque 22 11 1AZ Specifications.






Installation:
Rubber section (1) of engine mount must point to middle of vehicle.
Engine mount designations:
Right engine mount
- With heat cap.
Illustration similar
