25 16 056 Removing and Installing/Replacing Shift Tower (Steptronic)

25 16 056 - Removing and installing or replacing shift tower (Steptronic)





Necessary preliminary tasks:
- Remove rear underbody protection.
- Remove centre console.





Note:
Version 1:

Move selector lever to parking position "P".

Grip clamping sleeve (1) and slacken nut (2).

Installation Note:
Adjust selector lever.





Note:
Version 2:

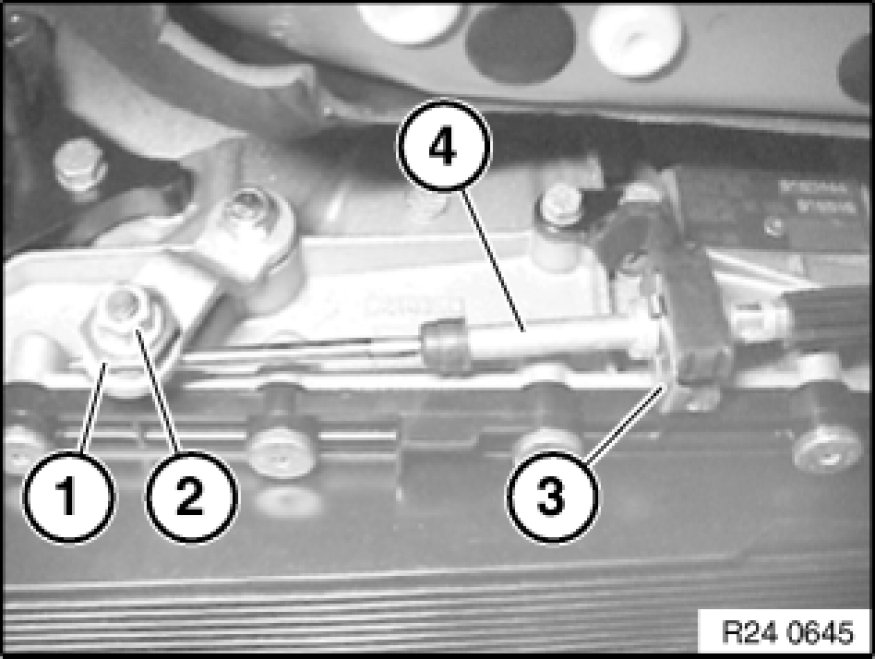

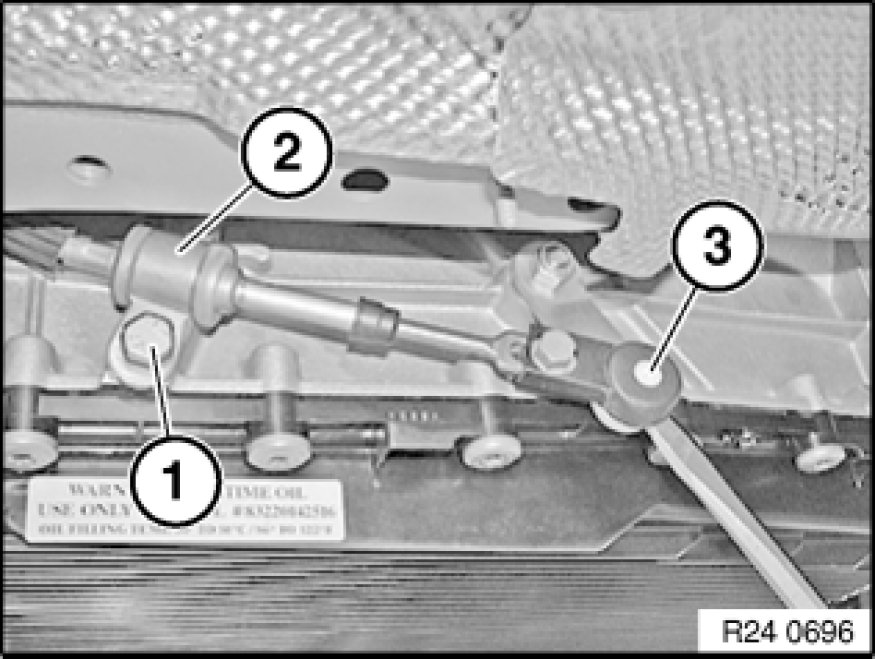

Grip clamping sleeve (1) and slacken nut (2).

Detach retainer (3) downwards using a screwdriver.
Pull cable (4) out of holder.

Installation:
Adjusting shift lever 24 00 018 Adjusting Selector Lever (A5S 360R / 390R, A4S 200R, 6HP26Z/19Z)





Note:
Version 3:

Move selector lever to "P" position.

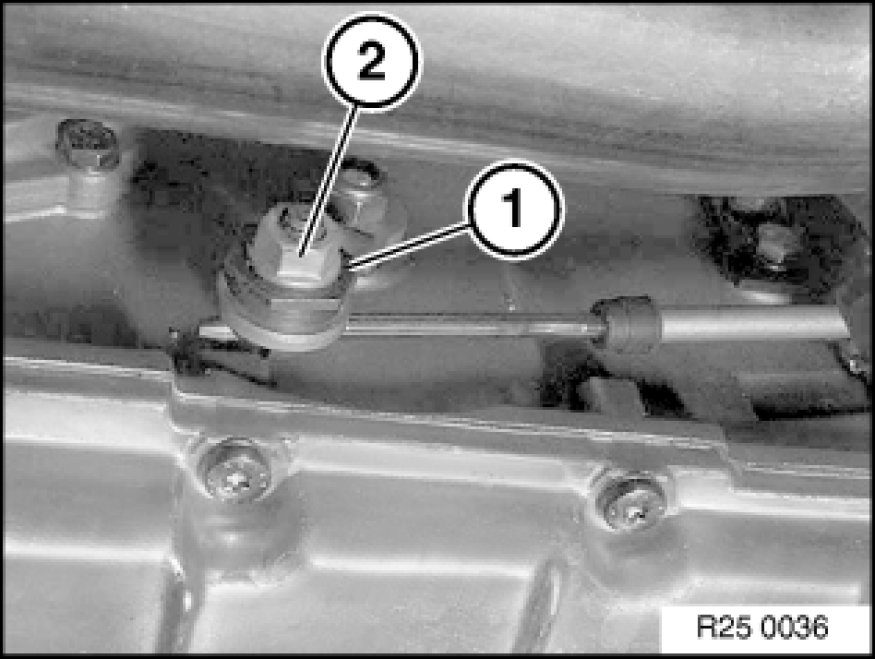

Release screw (1).
Tightening torque 25 16 2AZ. Specifications
Remove clamp (2).
Release shift cable head (3) using a screwdriver from ball head of shift cable lever.

Installation:
Adjust selector lever.





Note:
Version 4:

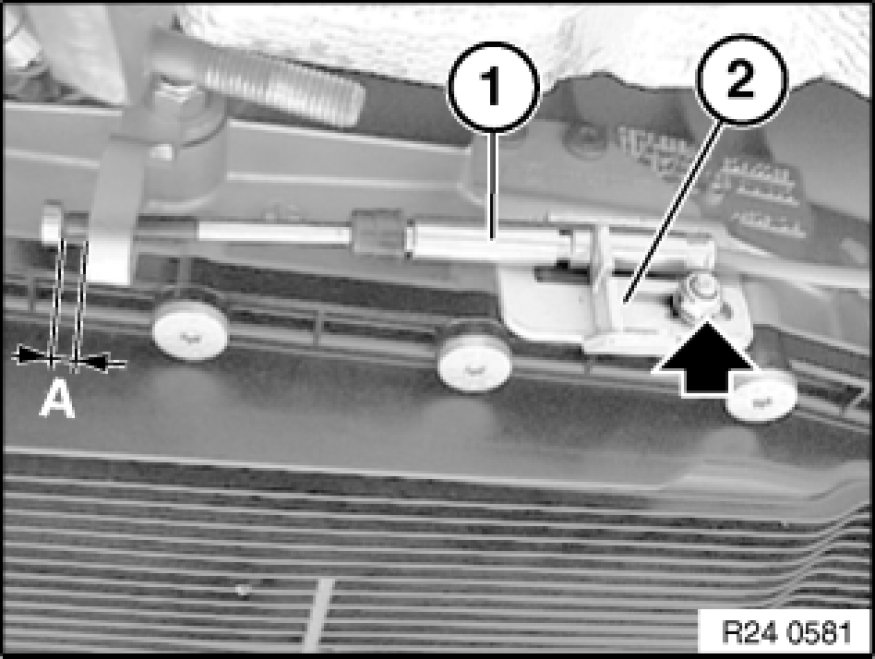

Release nut and disengage cable (1).

Installation:
Unfasten nut.
Adjust cable by means of holder (2) until spacing A = 1 mm is obtained
Tighten nut.





Note:
Version 4:

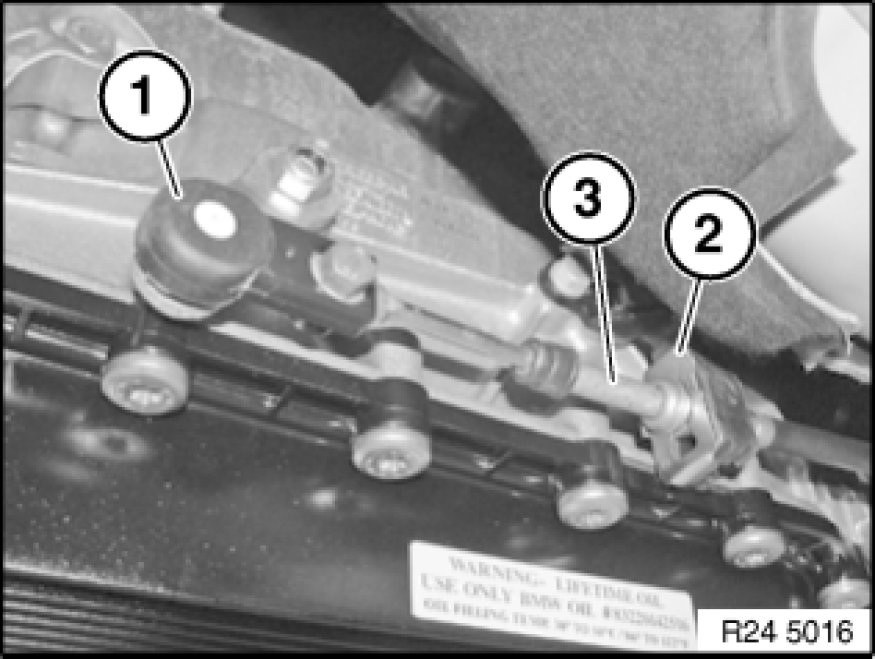

Move selector lever to "Park".

Release shift cable head (1) using a screwdriver from ball head of shift lever.
Detach retainer (2) downwards using a screwdriver.
Slide cable (3) towards rear and disengaged in downward direction.

Installation:
Adjusting shift lever 24 00 018 Adjusting Shift Lever

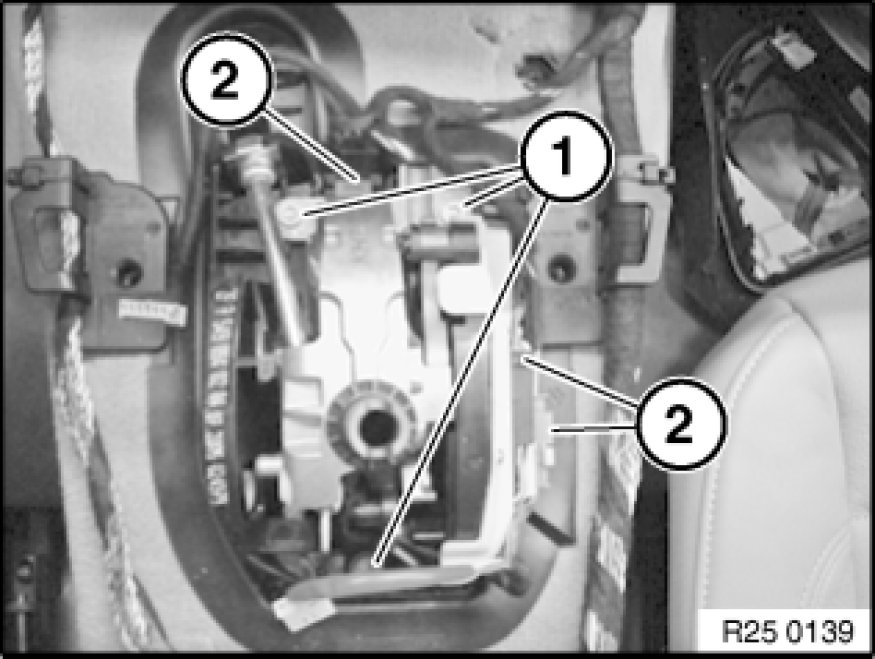

Release screws (1).
Tightening torque: 25 16 3AZ Specifications.
Disconnect plug connections (2).
Remove cables from holders.
Lift shift tower out of centre console.
