Air Door Actuator / Motor: Description and Operation

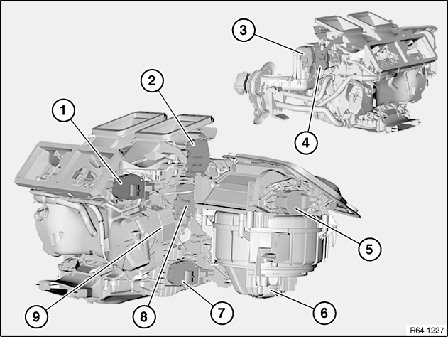

64 11 .. Overview Of Actuator Drives On Heater/Air Conditioner







1 Stepping motor, ventilating flap
2 Stepping motor, defrosting flap
3 Stepping motor, stratification, front
4 Stepping motor, air blending, left 9
5 Stepping motor, fresh air/recirculated air
6 Fan motor
7 E9x only: Stepping motor, rear compartment
8 Stepping motor, air blending, right
9 Stepping motor, footwell
