Home >> BMW >> 2009 >> 328xi Wagon AWD (E91) L6-3.0L (N52K) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Specifications >> Pressure, Vacuum and Temperature Specifications >> E87, E90, E91, E92, E93, E82, E88 / Except S65

E87, E90, E91, E92, E93, E82, E88 / Except S65

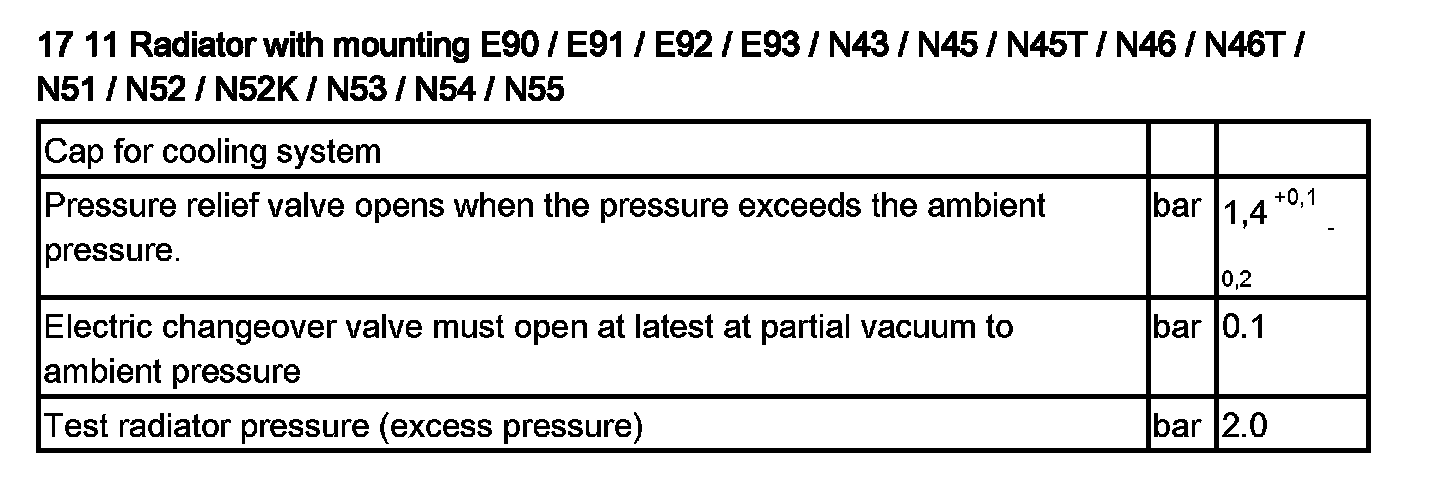

17 11 Radiator and Mounting Parts E87 / E90 / E91 / E92 / E93 / E82 / E88 / N52 / N52K / N51 / N54 / N53
