Antenna, TV: Service and Repair

65 24 030 - Removing and installing or replacing a TV amplifier





Necessary preliminary tasks:
- Remove panel for roof pillar Removing and Installing/Replacing Trim Panel For Left or Right Rear Roof Pillar (C-Pillar) at rear
- Remove capping in luggage compartment on left or right





Note:

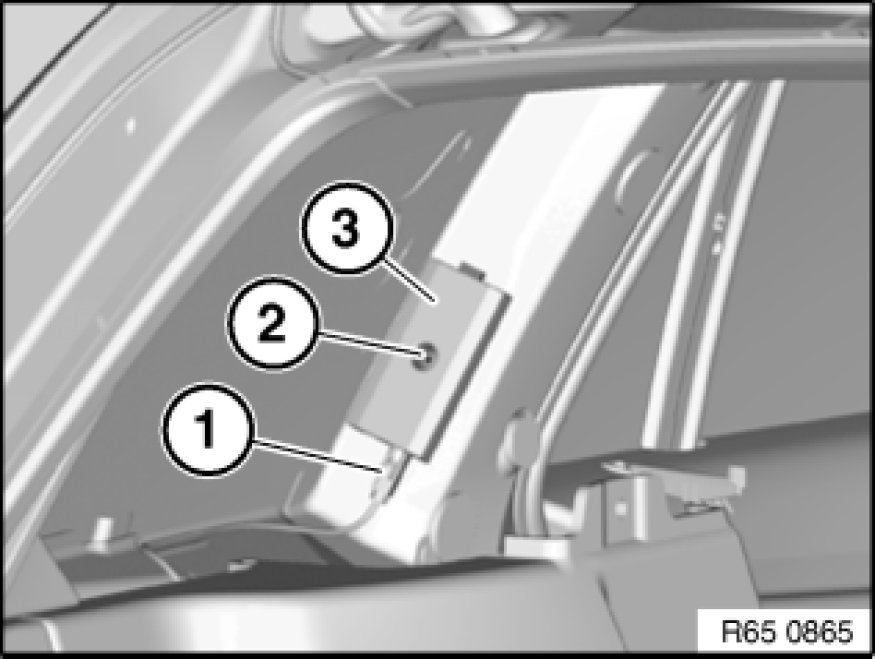

Illustrations show removal of the TV amplifier on the left side. The TV amplifier on the right side is removed in the same way.

Disconnect plug connection (1).

Release screw (2).
Remove TV amplifier (3).
