Without iDrive

65 50 055 - Removing and installing/replacing central information display





Necessary preliminary tasks:
- Remove centre fresh air grille 64 22 162 Removing and Installing/Replacing Center Fresh-Air Grill
- Remove Car Communication Computer 65 83 010 Removing and Installing/Replacing Car Communication Computer

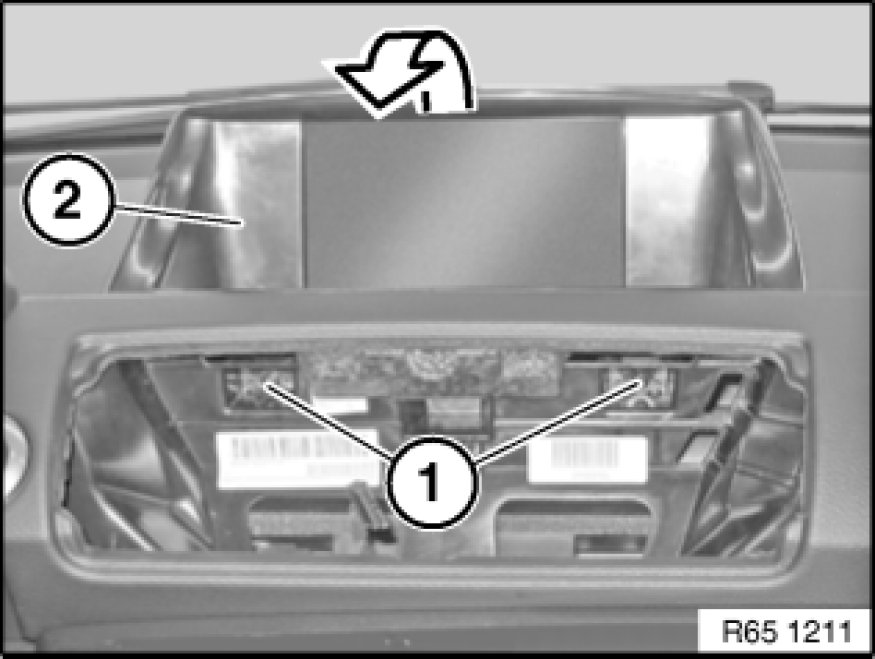

Release bolts (1).
Lever out central information display (2) in direction of arrow.

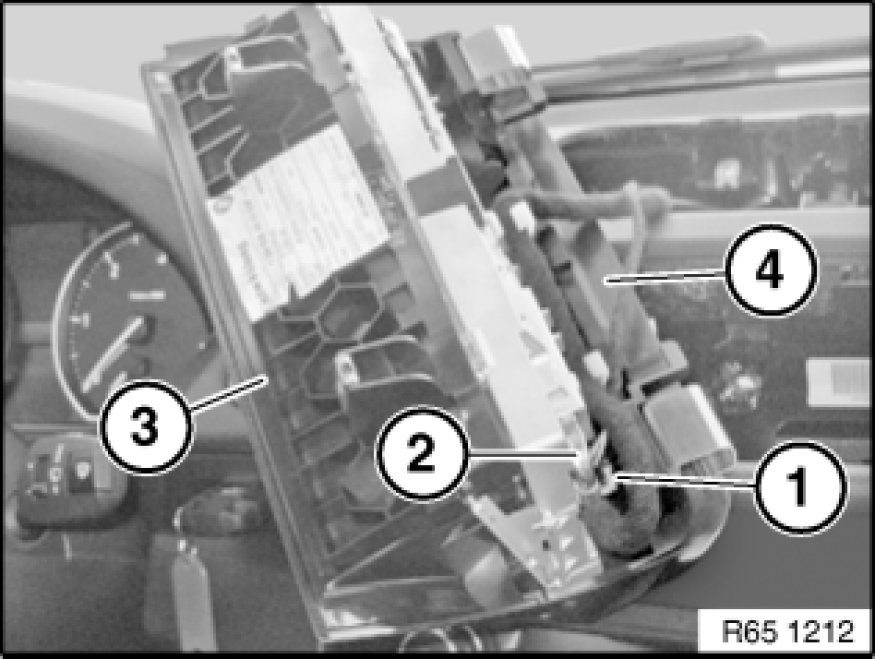

Unfasten plug connection (1) and disconnect.
Disconnect plug connection (2) and release associated wiring harness.

Installation:
Make sure wiring harness is correctly laid and secured.

Remove central information display (3).

Installation:
Trim (4) must be correctly engaged.
