Amplifier: Service and Repair

65 12 072 - Removing and installing (replacing) amplifier (Top hi-fi system)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove rear left side trim panel Removing and Installing Rear Left or Right Side Trim Panel

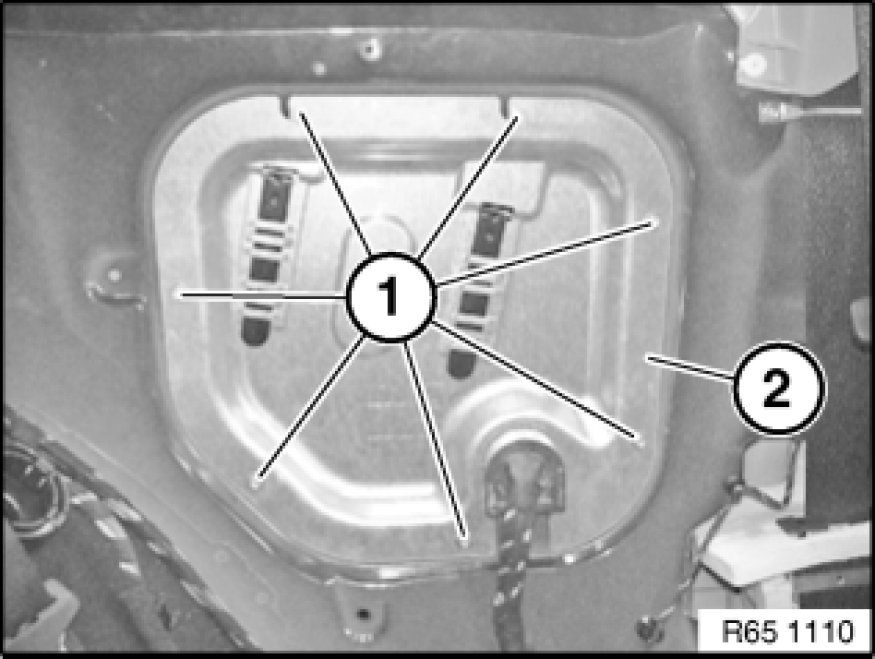

Release screws (1) and remove retaining plate (2).

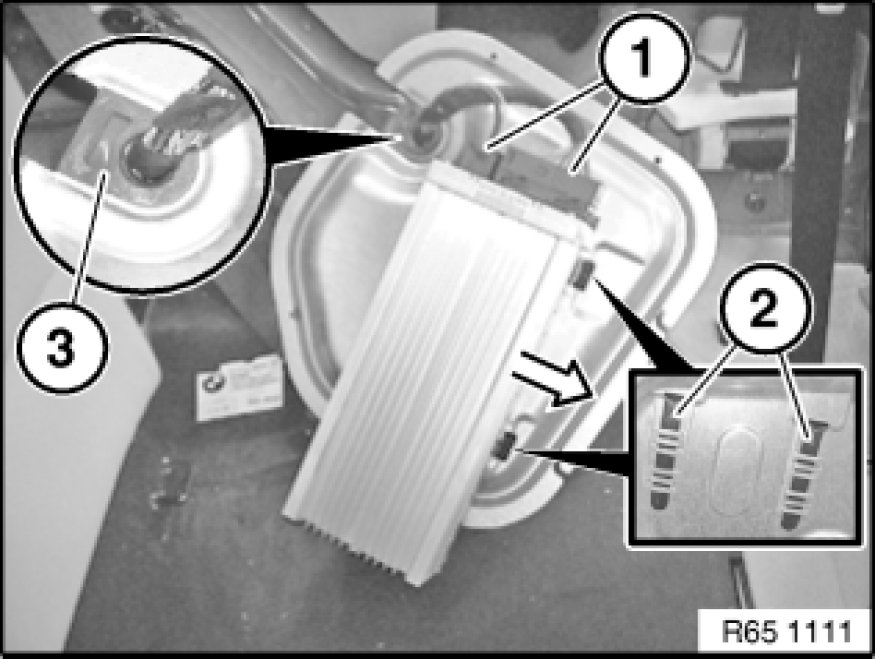

Disconnect plug connection (1).
Detach retaining plates (2) in direction of arrow.

Installation Note:
Make sure retaining plates (2) and grommet (3) are correctly seated.





Replacement:
Carry out programming/coding Programming and Relearning.
