65 24 020 Removing and Installing/Replacing Blocking Circuit

65 24 020 - Removing and installing/replacing left or right blocking circuit





Necessary preliminary tasks:
- Remove panel for roof pillar at rear Removing and Installing/Replacing Trim Panel For Left or Right Rear Roof Pillar

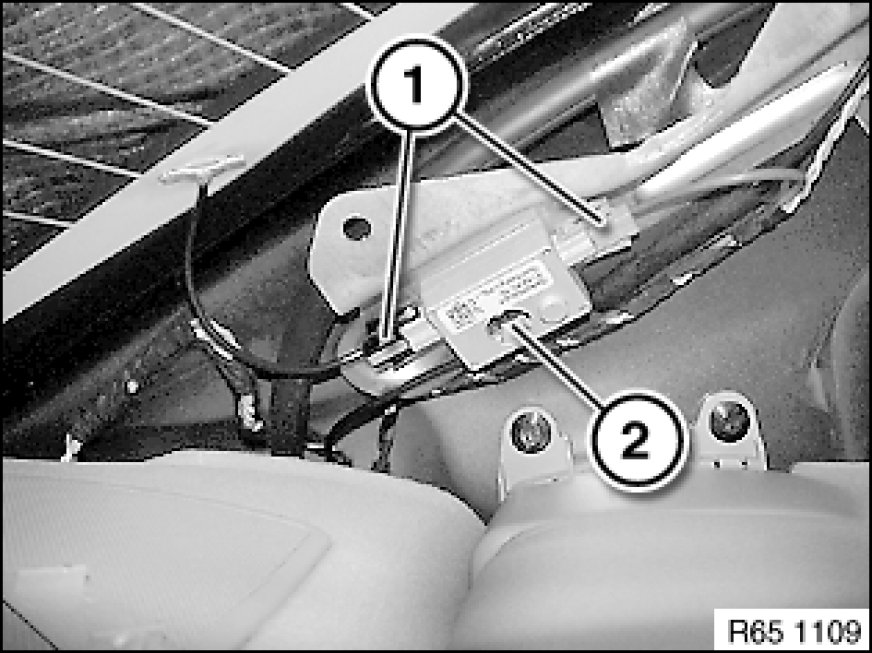

Disconnect plug connection (1).
Unfasten screw (2) and remove blocking circuit.





Installation:

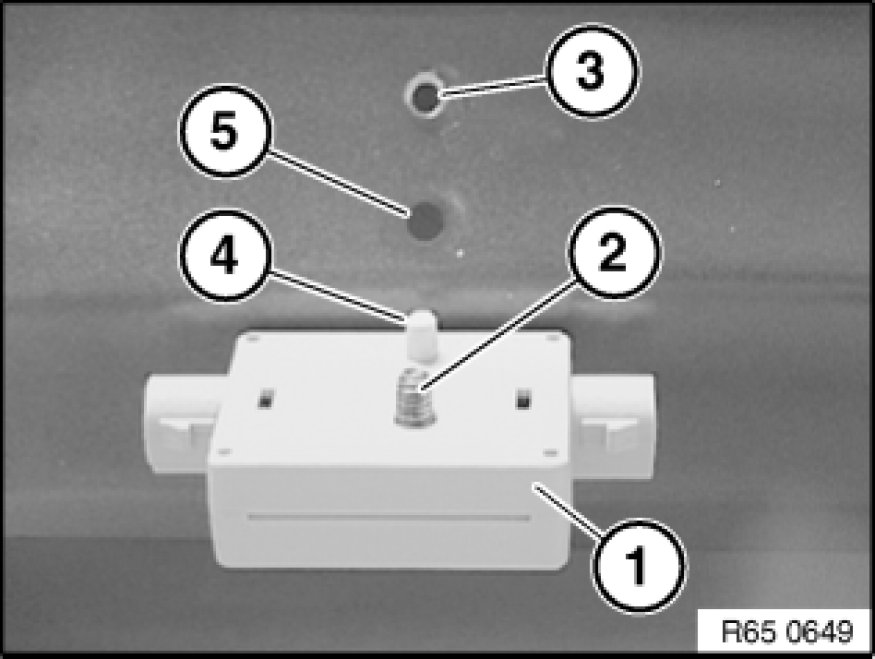

Fit blocking circuit (1) so that screw (2) engages thread (3) and locating pin (4) engages bore (5).
