23 12 510 Replacing Radial Shaft Seal For Drive Shaft (GS6-53BZ/DZ)

23 12 510 - Replacing radial shaft seal for drive shaft (GS6-53BZ/DZ)





Special tools required:
- 23 3 200 23 3 200 Extractor
- 23 3 220 23 3 220 Drift





Important!
After completion of work, check transmission fluid level Service and Repair.

Use only approved transmission oil.

Failure to comply with this requirement will result in serious damage to the automatic transmission!





Necessary preliminary tasks:
- Remove transmission 23 00 018 Removing and Installing Transmission (GS6-53BZ).
- Remove clutch release unit and release lever Service and Repair from guide tube.





Release screws.

Tightening torque: 23 11 2AZ Mechanical Specifications.

Remove guide tube (1).

Installation Note:
Clean guide tube.

Do not grease guide tube.





Release screw on special tool 23 3 200 23 3 200 Extractor.

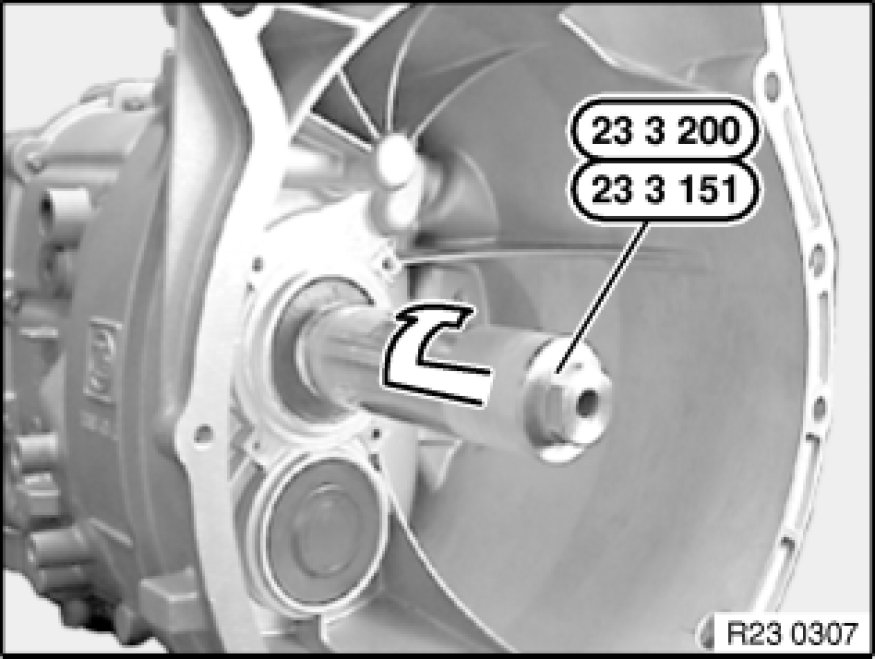

Push special tool onto drive shaft and screw into sealing ring.

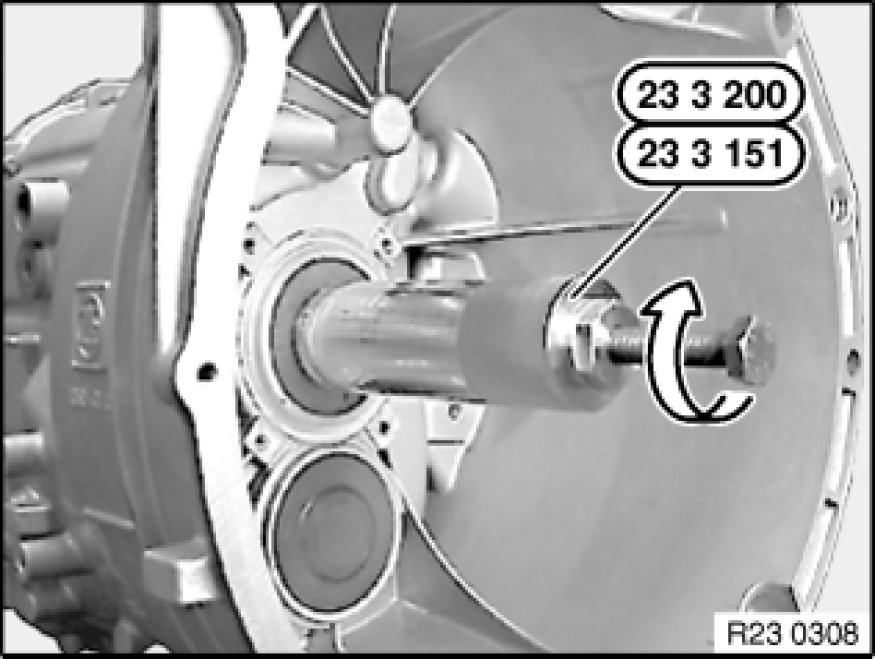

Insert screw into special tool 23 3 200 23 3 200 Extractor again and continue turning until sealing ring is pulled out of transmission housing.





Installation Note:
Coat sealing lips of radial seal with gear oil.

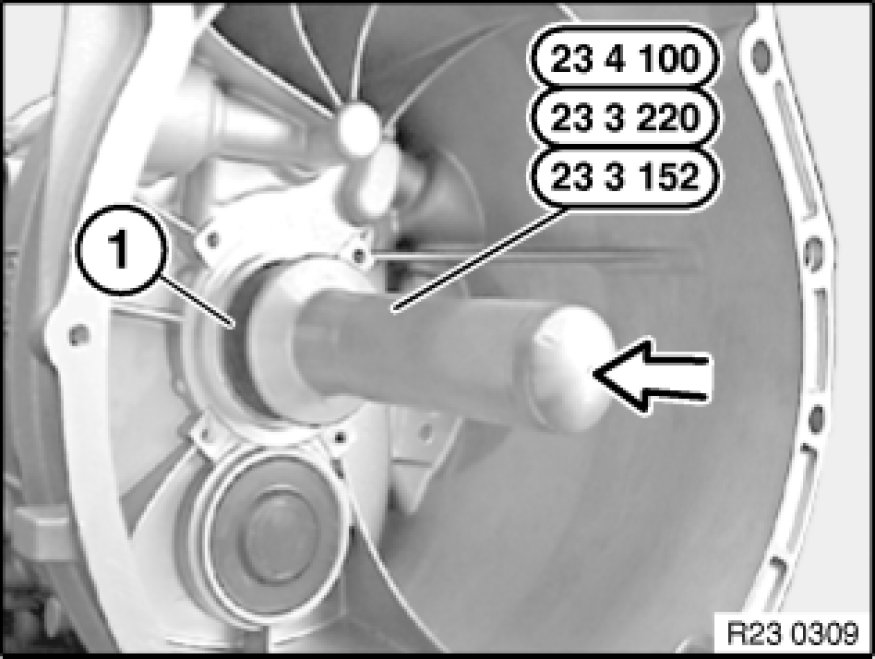

Push radial seal (1) onto drive shaft up to housing.

Drive in radial seal (1) as far as it will go with special tool 23 3 220 23 3 220 Drift and plastic hammer.
