22 32 050 Replacing Crossmember For Transmission Mounting

22 32 050 - Replacing cross-member for transmission mounting





Necessary preliminary tasks:
- Remove underbody protection
- Support transmission with lifter.

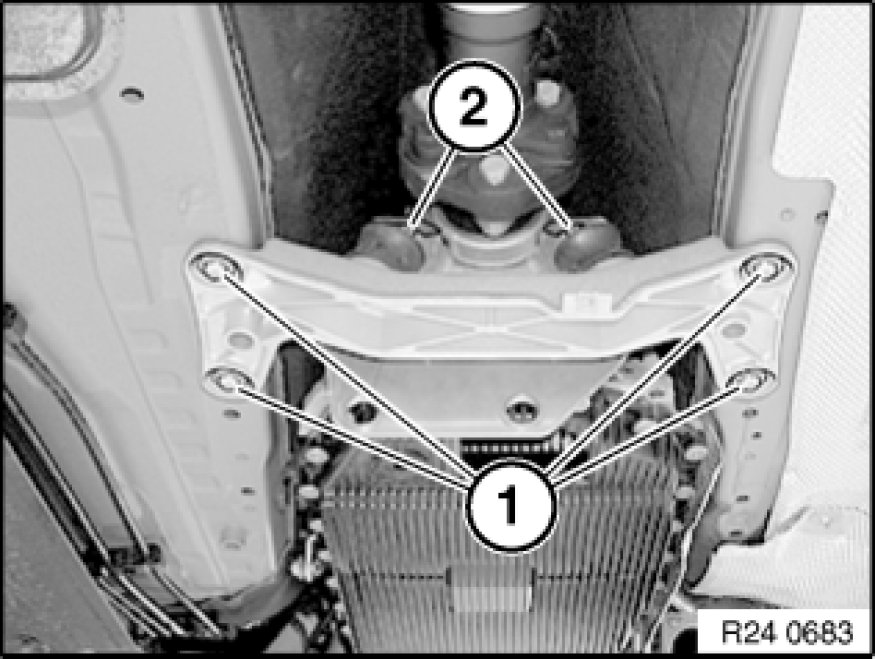

Unfasten screws (1) and nuts (2).
Remove transmission cross-member.
Tightening torque 24 71 1AZ/2AZ 24 71 Transmission Mounts.

Note:
Illustration similar.
