24 00 050 Installing Exchange Transmission (GA6HP19Z)

24 00 050 Installing Exchange Transmission (GA6HP19Z)







Drain automatic transmission fluid at oil drain plug.
Tightening torque: 24 11 6AZ.

IMPORTANT: After completion of work, program transmission control unit.







Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations







IMPORTANT:
- Before installing exchange transmission, always flush transmission oil cooler together with lines.
- After completion of repair work, check transmission oil level.
Exchange transmission is supplied filled with transmission oil.
Use only the approved transmission oil.
Failure to comply with this instruction will result in serious damage to the transmission.







Necessary preliminary work:
- Remove automatic transmission.






NOTE: If necessary Release screws.

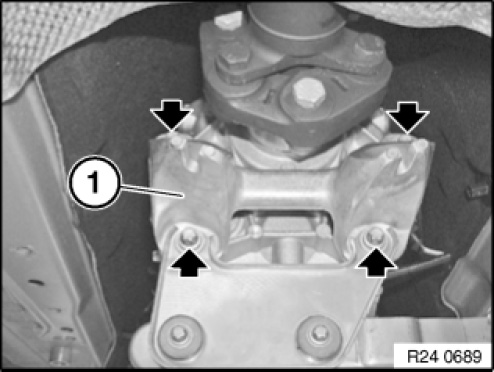

Remove and convert transmission bearing block (1).

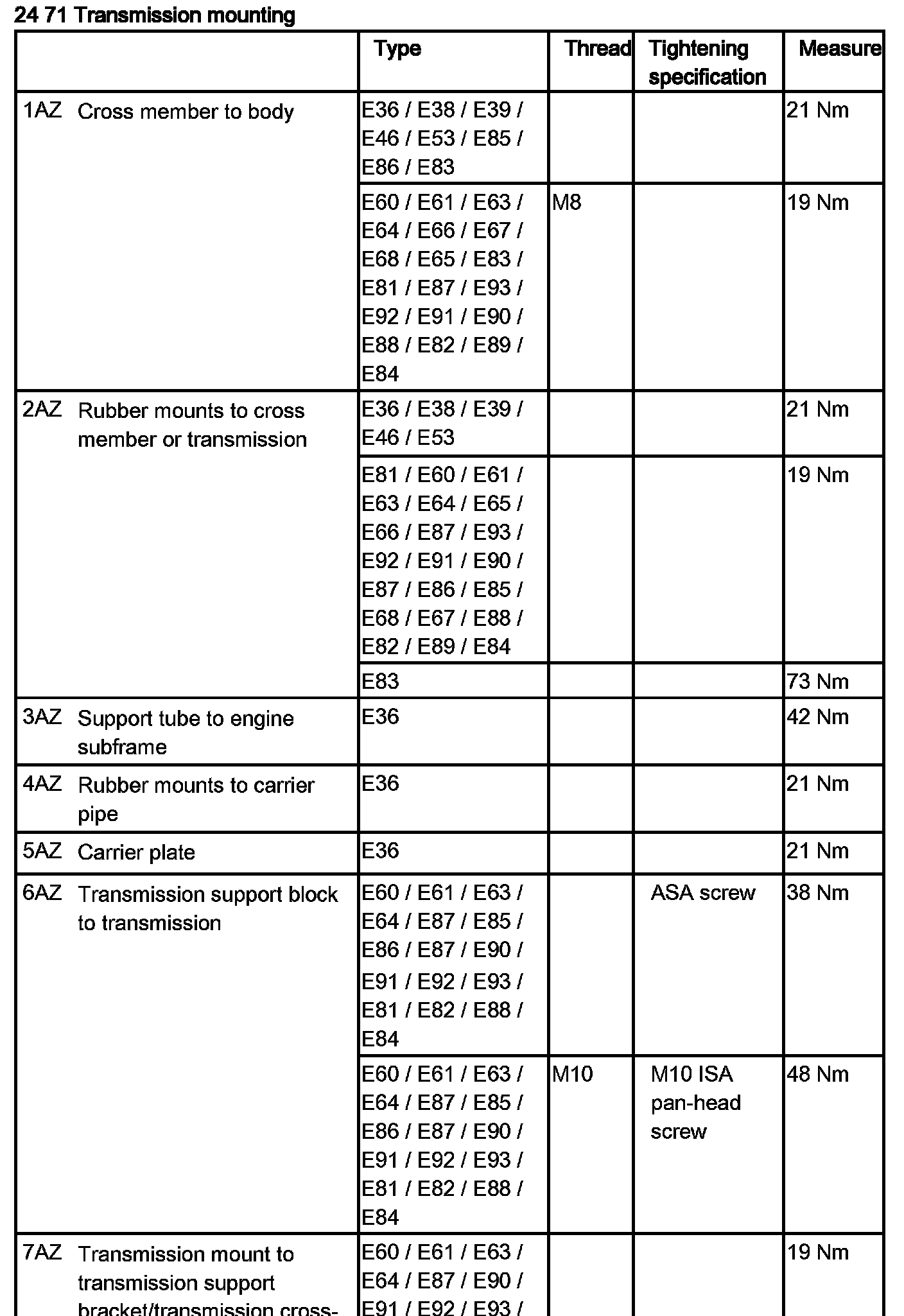

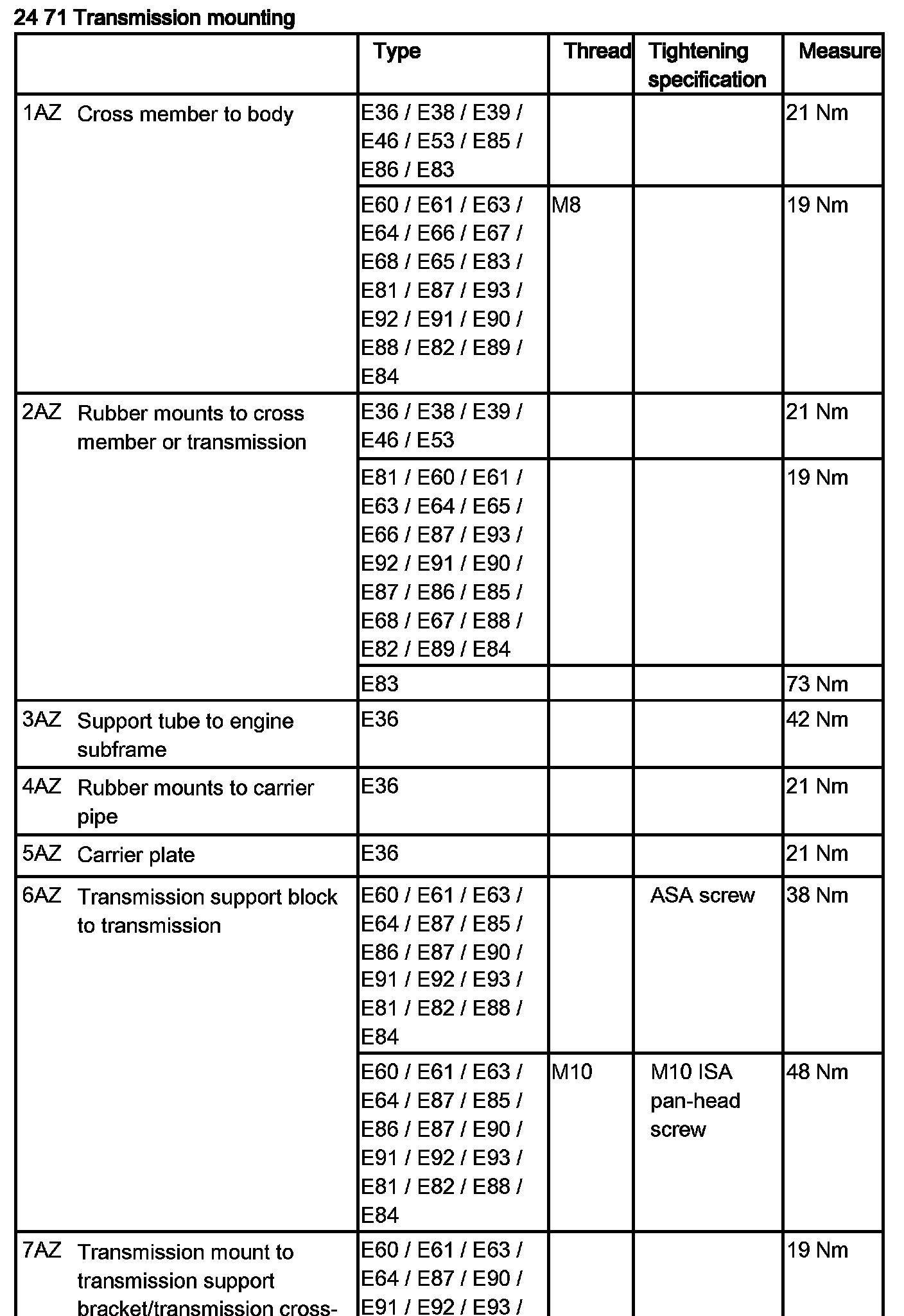

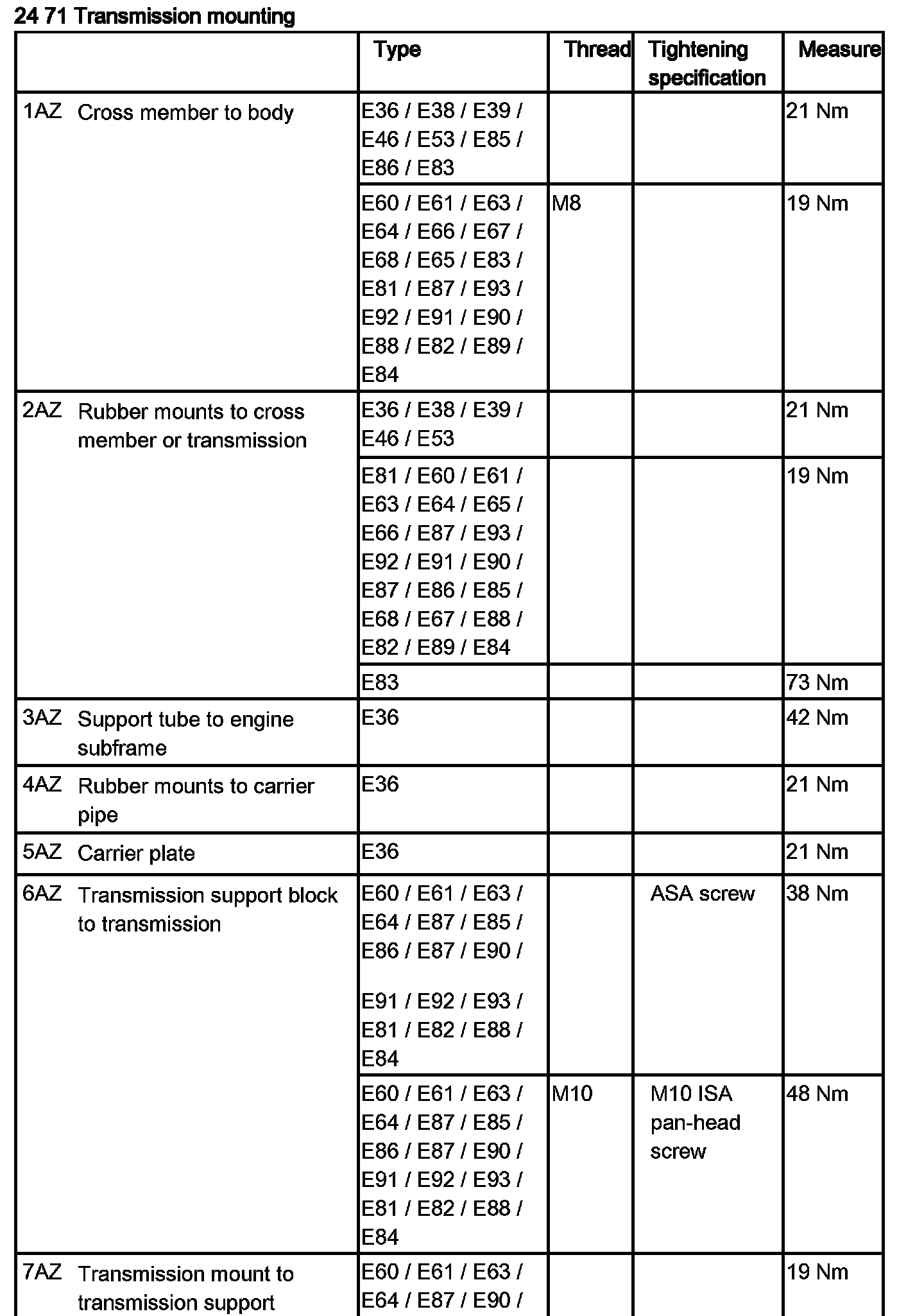

Tightening torque 24 71 6AZ.

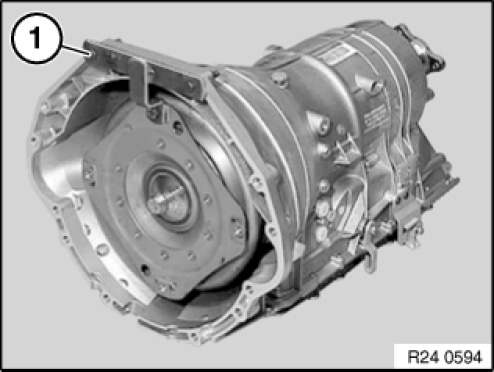

Convert transportation retainer (1).
Convert all cable clips.
Convert all seal plugs.
Convert protective cap on output shaft.

IMPORTANT: After removing transportation retainer, secure torque converter against slipping out.

Transmission identification:
- refer to BMW Parts Department.
- On type plate
