65 83 560 Removing and Installing/Replacing Front Trim For Car Communication Computer

65 83 560 - Removing and installing/replacing front trim for Car Communication Computer





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove Car Communication Computer 65 83 010 Removing and Installing/Replacing Car Communication Computer





Release screws (1).
Fold down front panel for Car Communication Computer (2) and set down.

Installation Note:
Make sure retaining lugs (3) of front panel for Car Communication Computer (2) are correctly seated.





Note:
"LIF" stands for Low Insertion Force.

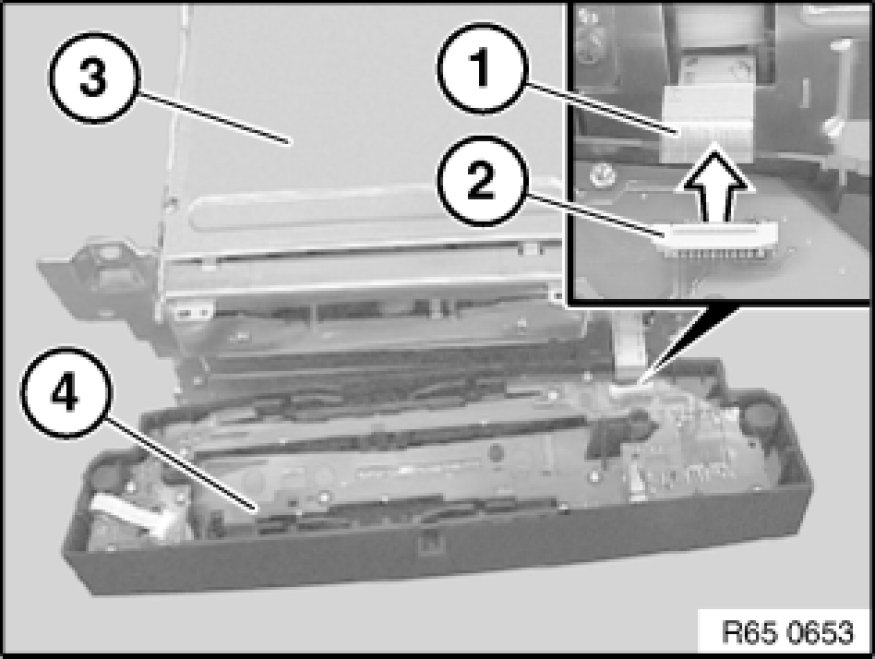

Open catch of LIF plug (2) in direction of arrow and feed out LIF cable (1).

Remove front trim for Car Communication Computer (4) from Car Communication Computer (3).
