Removing and Installing/Replacing Left Headlight Vertical Aim Adjuster

67 16 010 Removing And Installing/replacing Left Headlight Vertical Aim Adjuster







NOTE: Headlight removed for purposes of clarity.

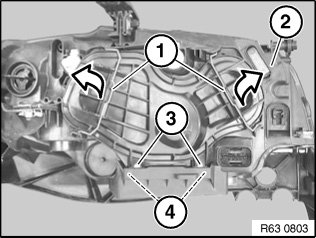

Unlock spring wire clips (1) in direction of arrow.

Remove cover from headlight (2).

Installation:
Make sure cover is correctly seated on headlight (2).

Guides (3) must be exactly seated in associated locators (4).

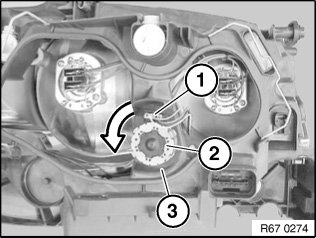

Disconnect plug connection (1).

Turn headlight vertical aim adjuster (2) in direction of arrow and remove from headlight (3).







Feed headlight vertical aim adjuster (1) upwards out of headlight (2) and remove.

Installation:
Make sure ball head (3) is correctly seated in locator (4).







After Installation:
Adjust headlights .
