64 11 906 Removing and Installing/Renewing Ventilation Temperature Sensor

64 11 906 - Removing and installing/replacing ventilation temperature sensor





Necessary preliminary tasks:
- Remove centre fresh air grille 64 22 162 Removing and Installing/Replacing Center Fresh-Air Grill

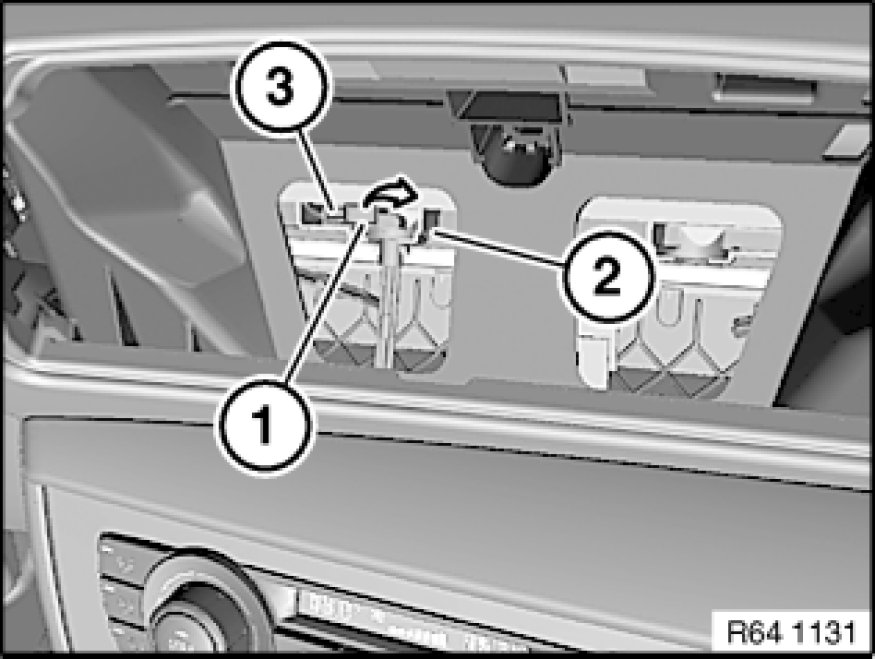

Turn ventilation temperature sensor (1) in direction of arrow and pull up and out of mounting (2).
Disconnect plug connection (3).

Installation:
Make sure ventilation temperature sensor (1) is correctly seated in mounting (2).
