Blower Motor: Service and Repair

64 11 213 Removing And Installing/replacing Heater/air Conditioner Fan







Necessary preliminary tasks:
- Remove trim for instrument panel at bottom right







Detach right footwell heating duct (1) in direction of arrow from retaining lug (3) and lay to one side slightly.

Installation:
Make sure clip (2) is correctly seated.

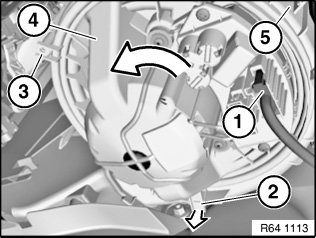

Unfasten plug connection (1) and disconnect.

Raise plastic lug (2) slightly and turn fan (4) in direction of arrow.

Remove fan (4) from fan shell (5).

Installation:
If necessary, raise lug (3) slightly and screw in fan (4) counterclockwise.

Make sure fan (4) is correctly seated in fan shell (5).

Check exact position of lug (2).
