Power and Ground Distribution
>>
System Diagram
>>

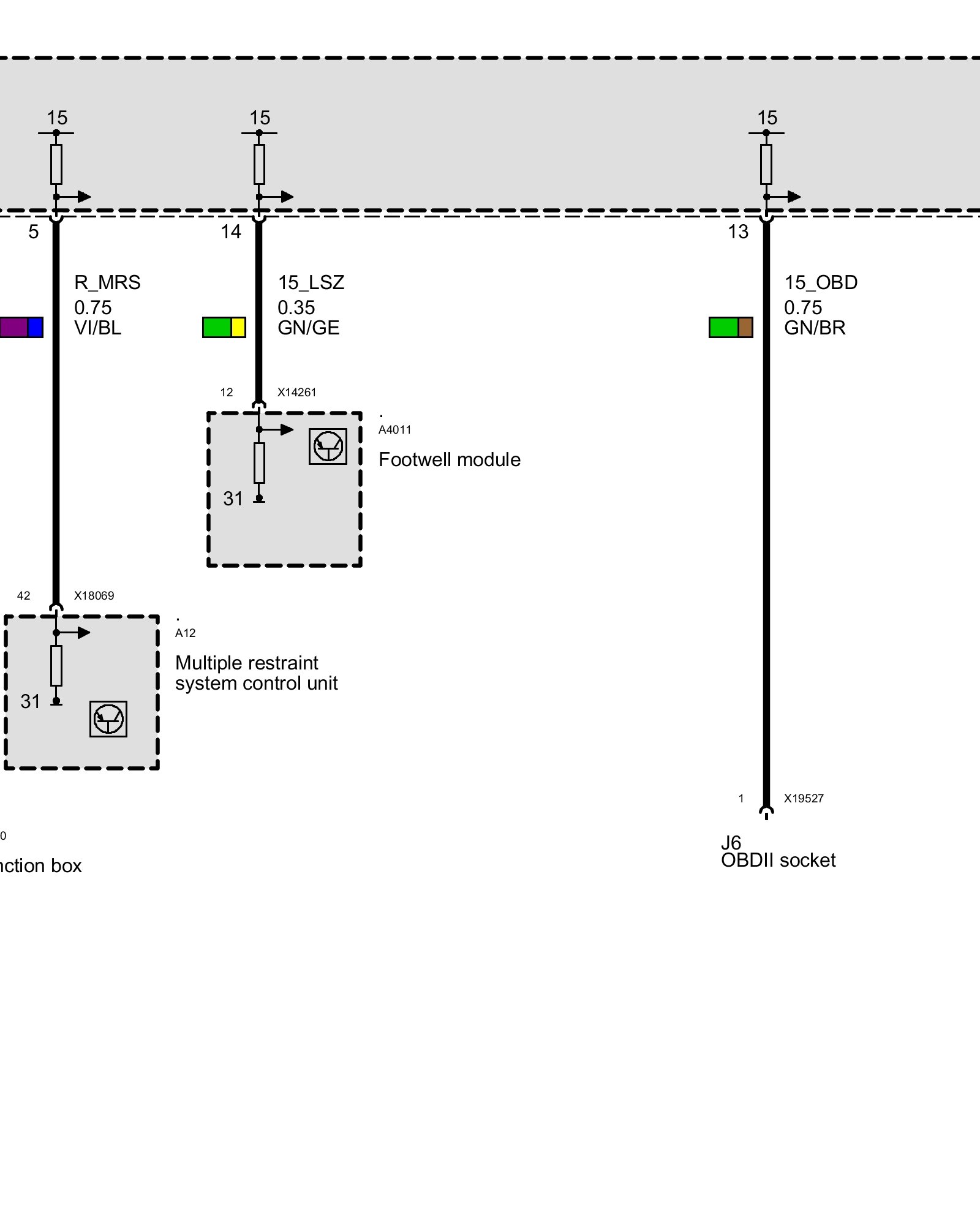

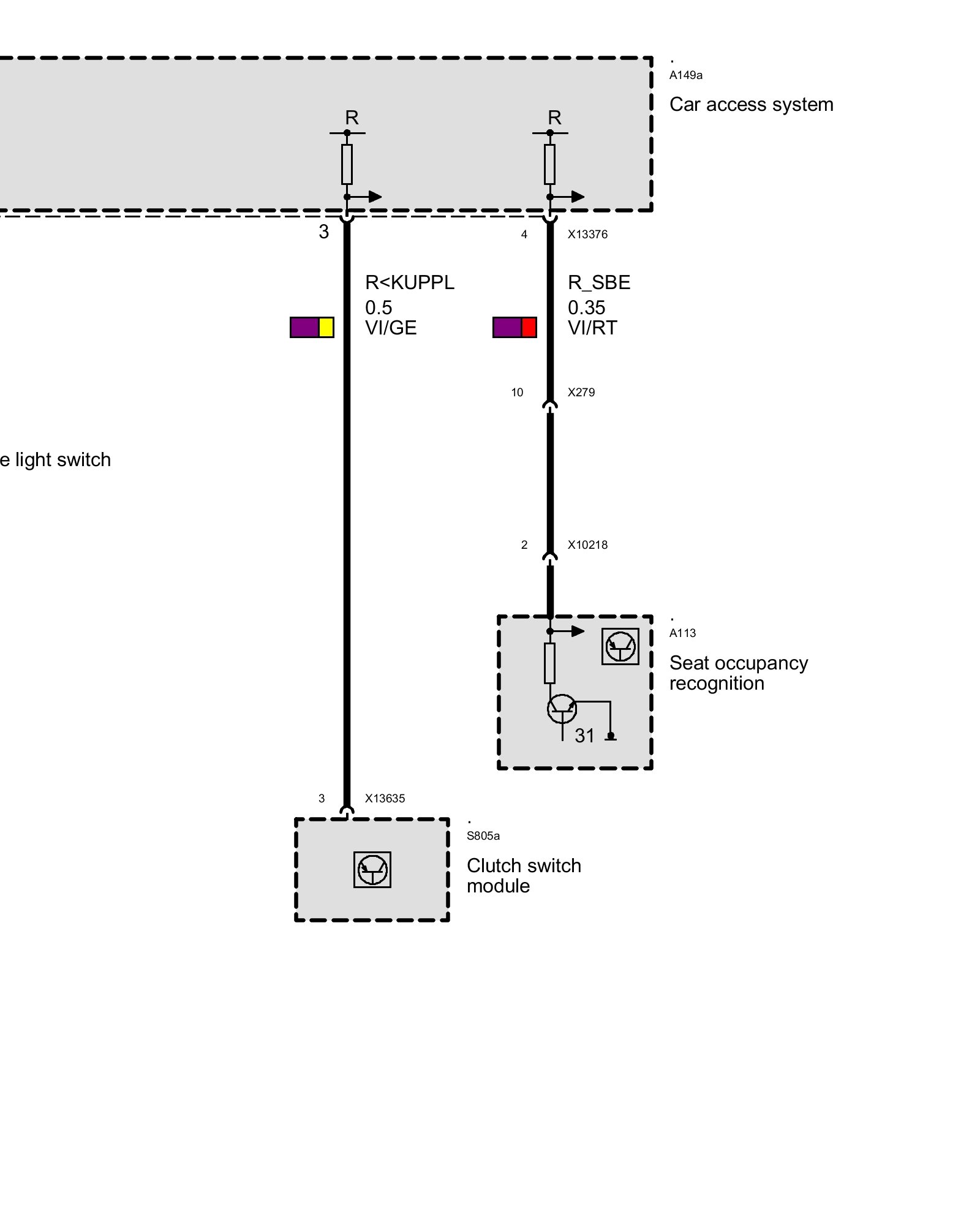

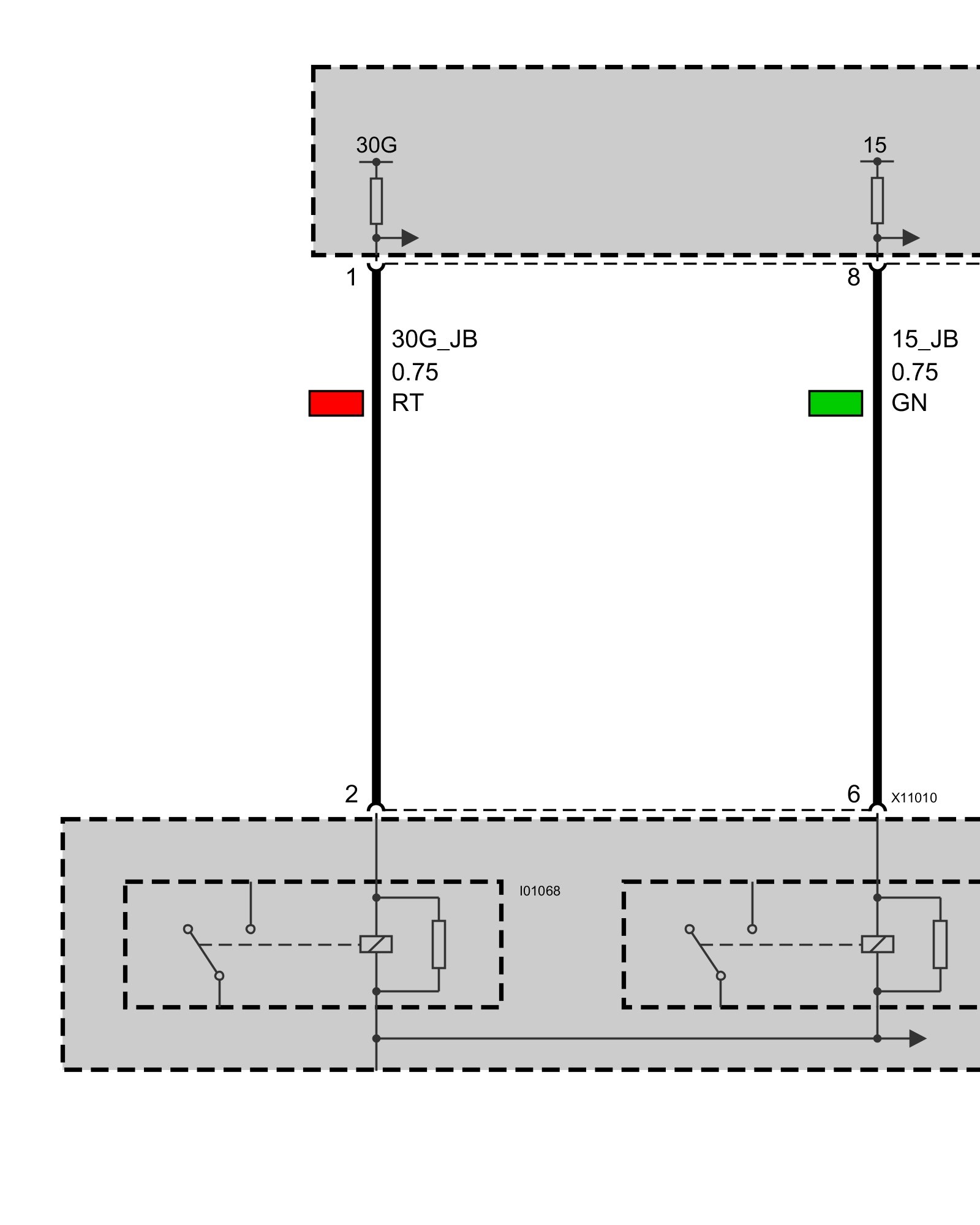

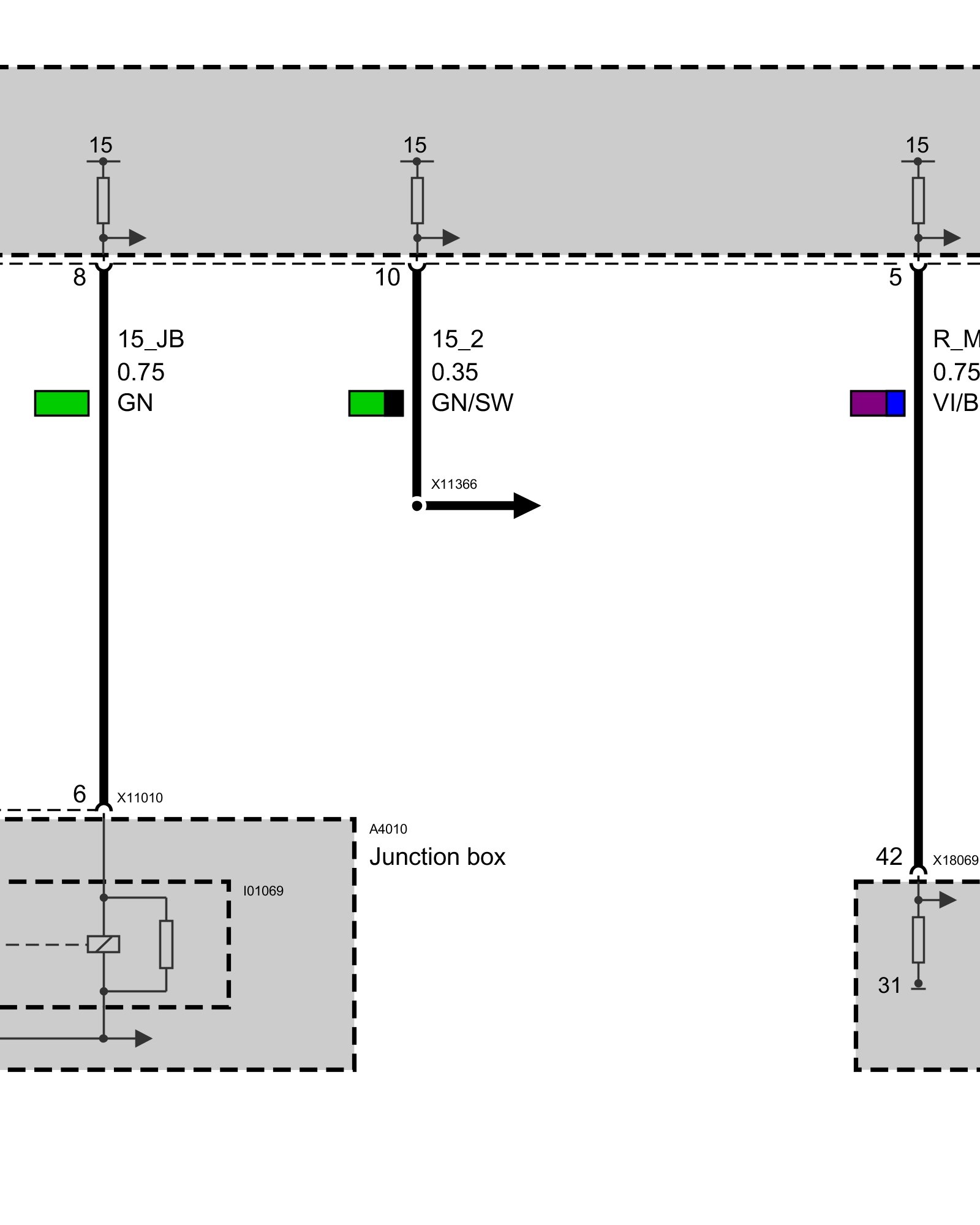

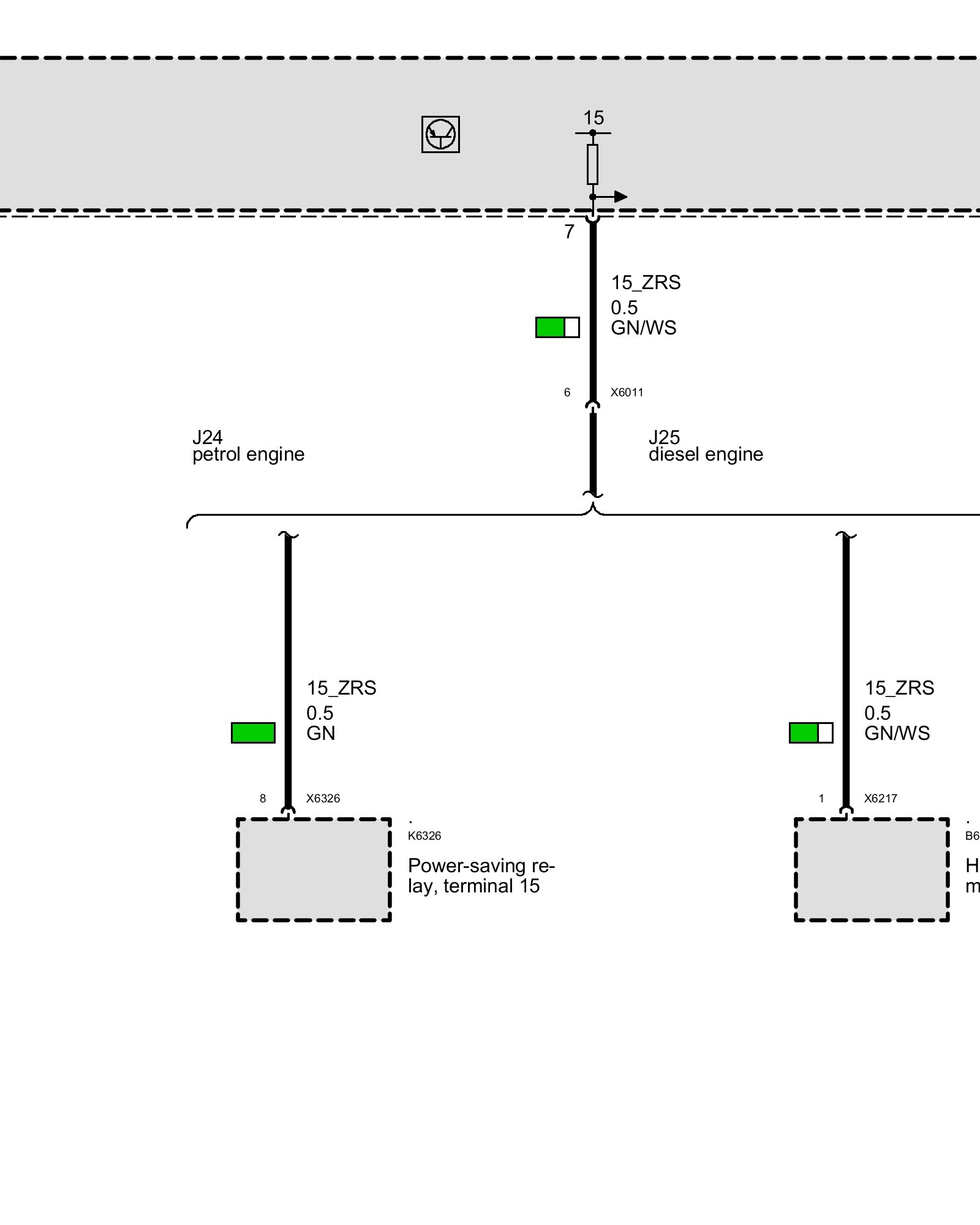

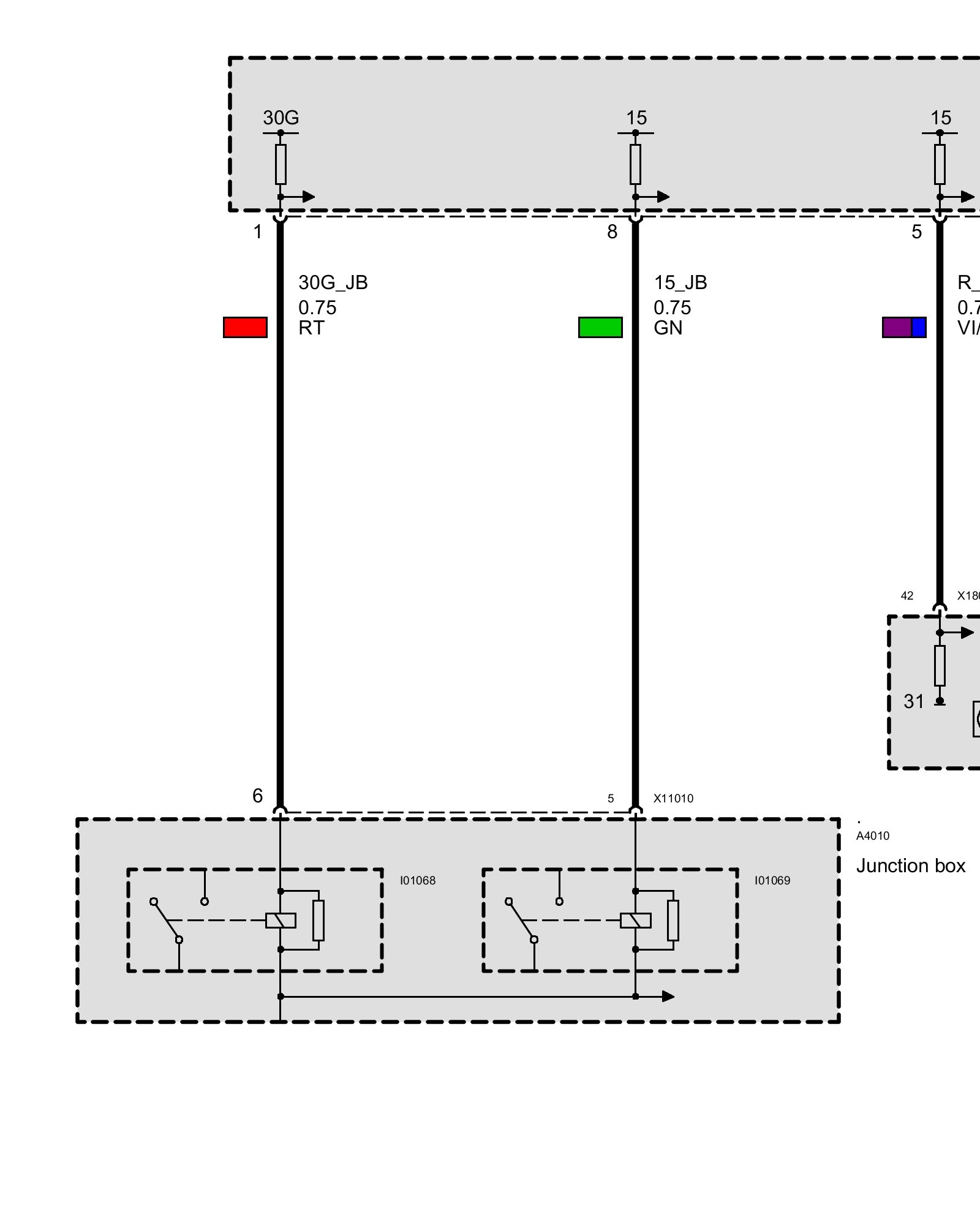

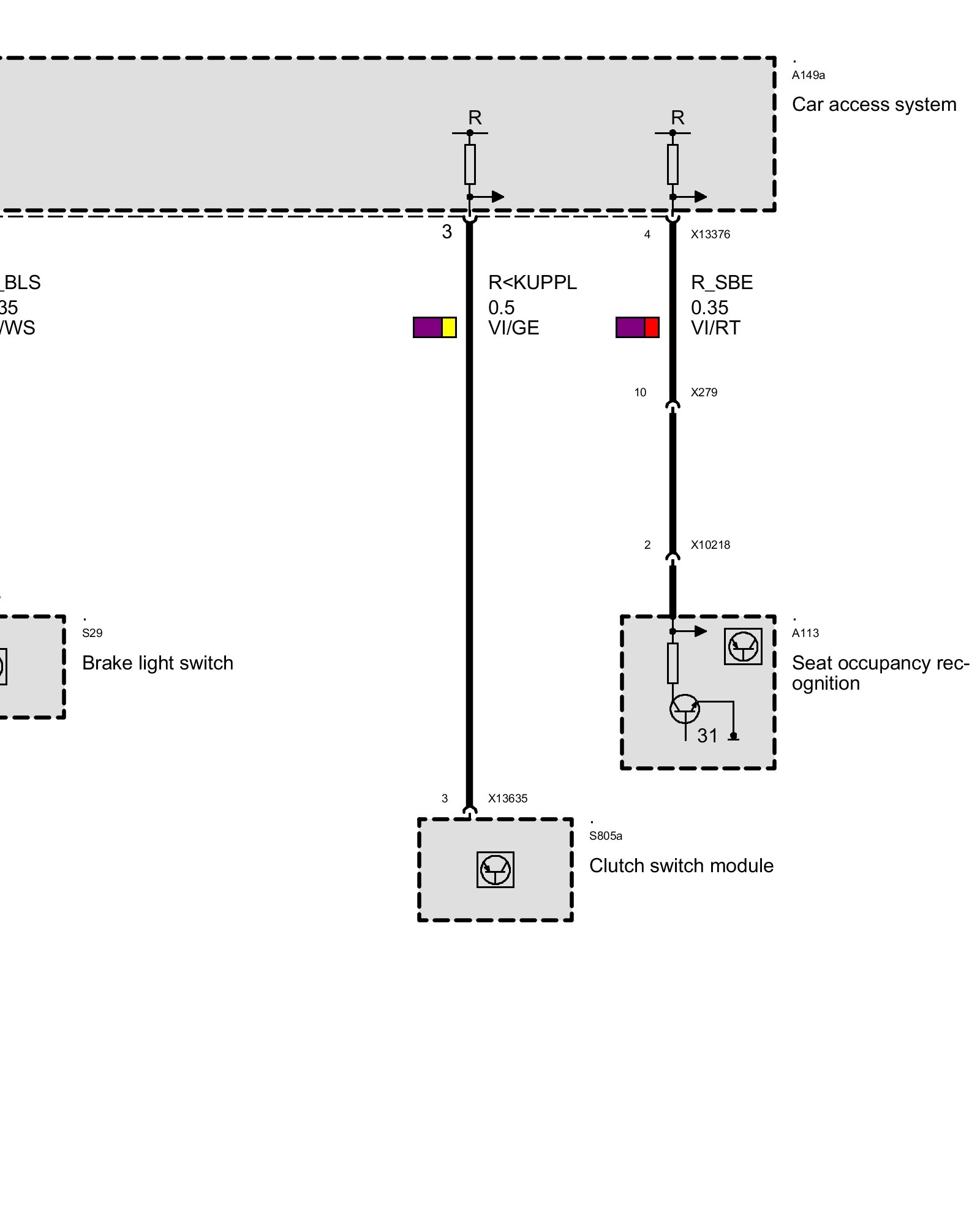

Terminal Control

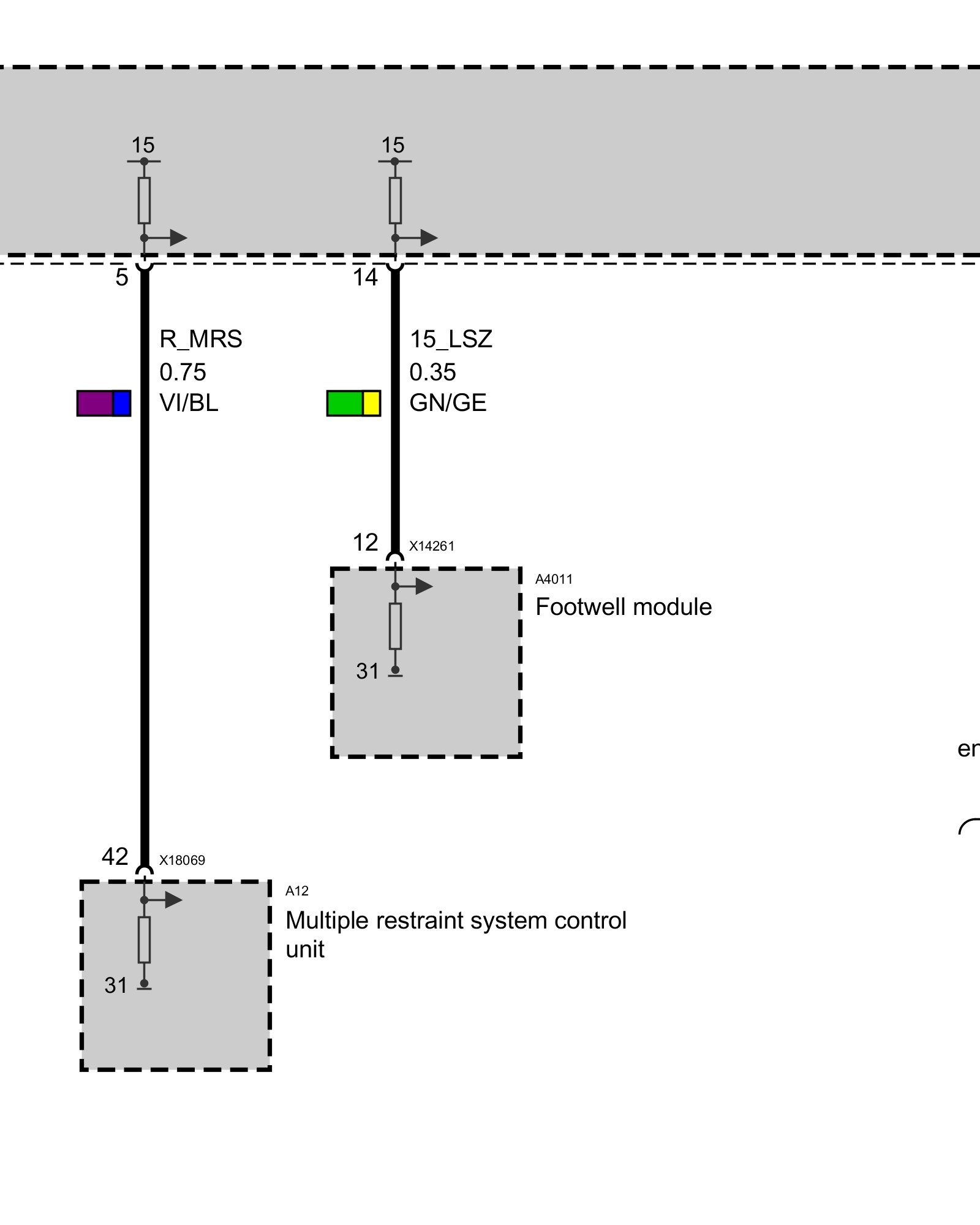

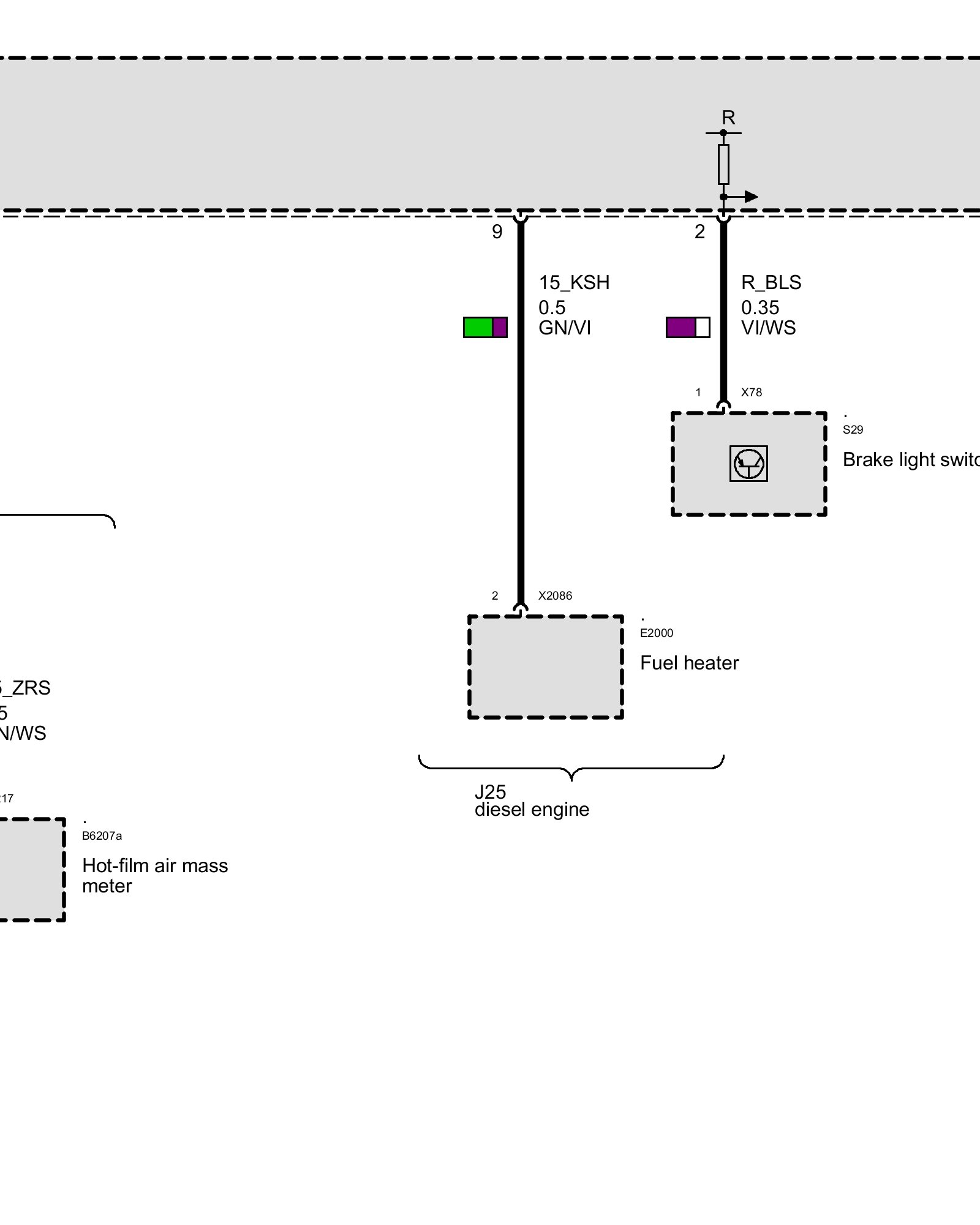

Terminal Control

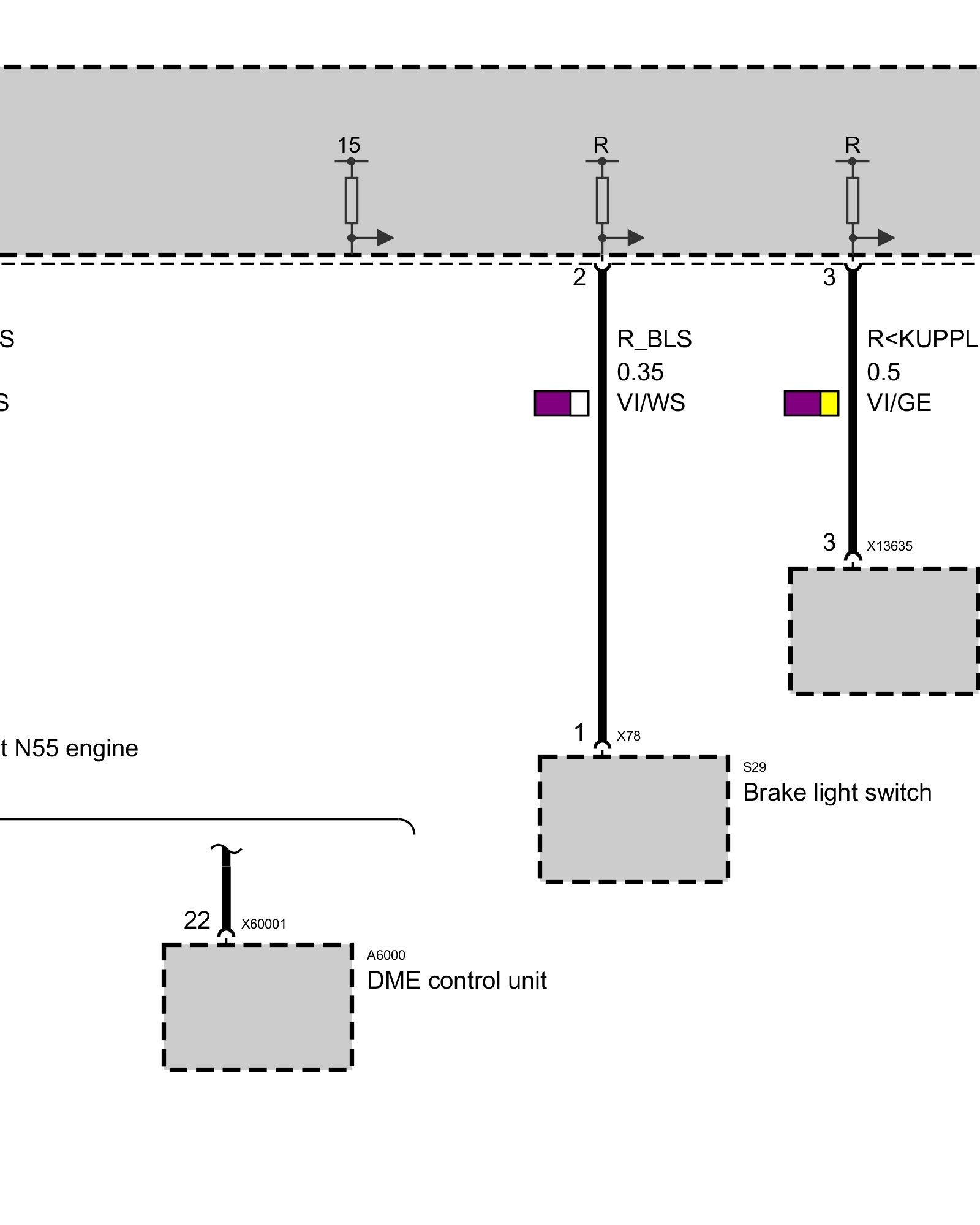

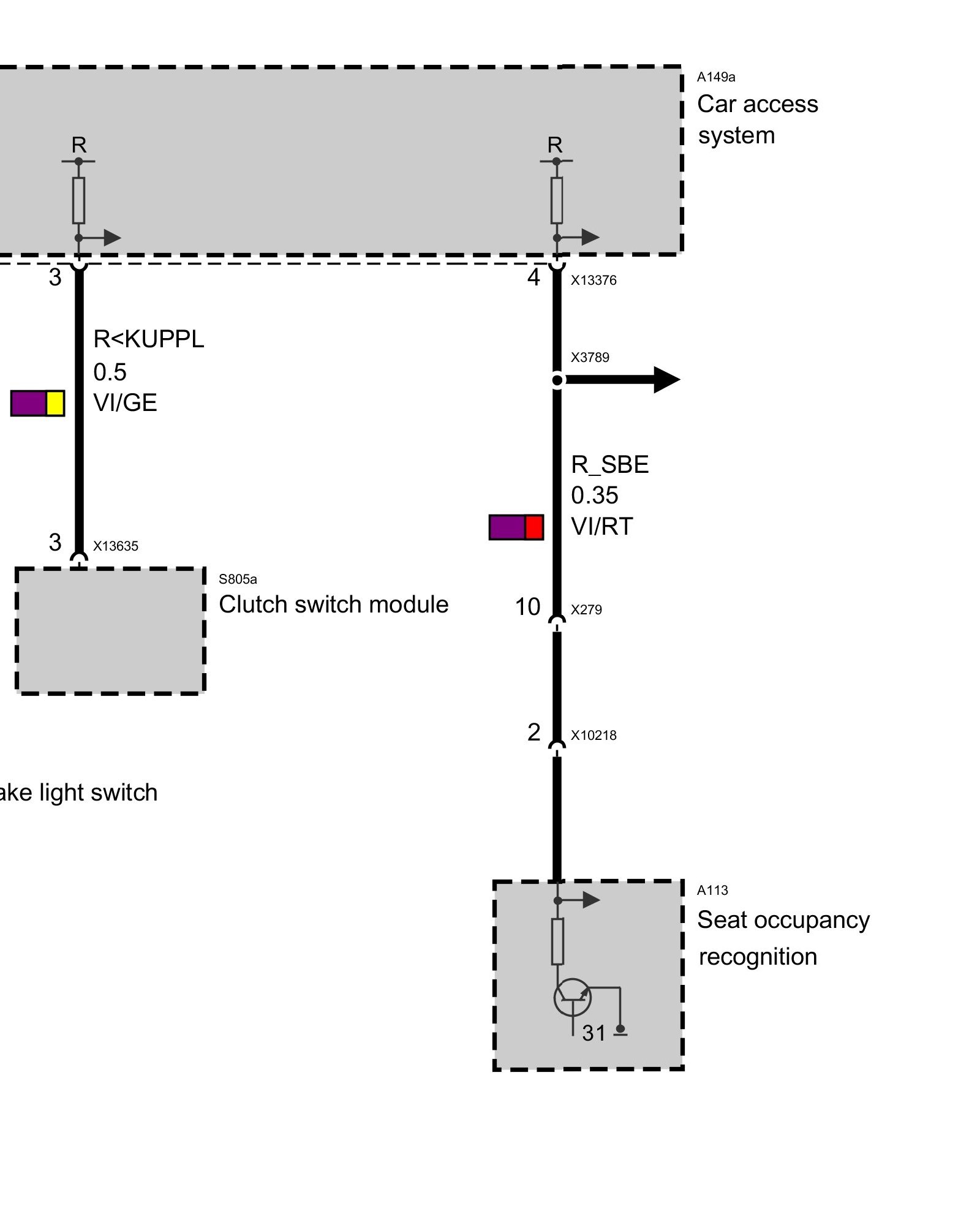

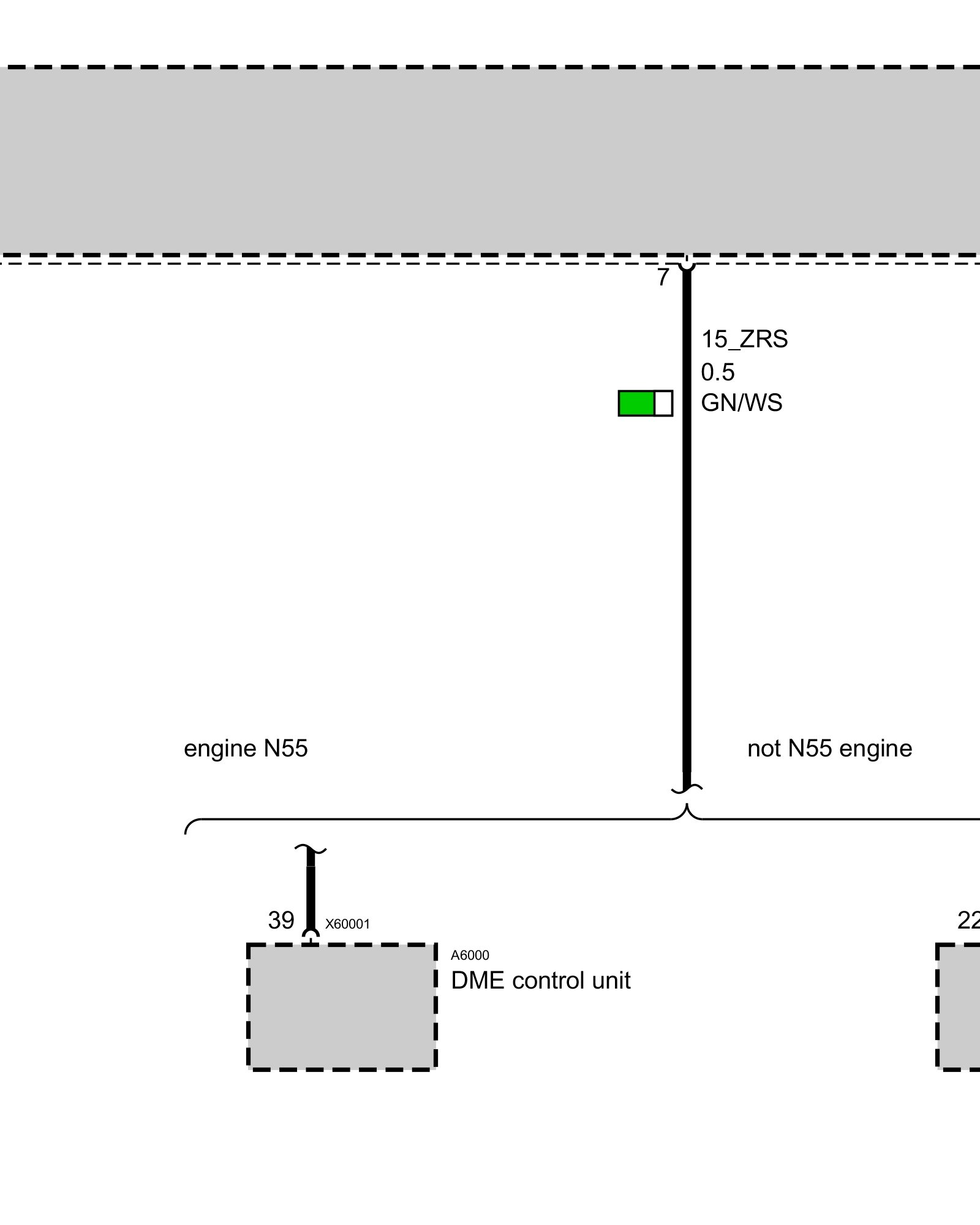

Terminal Control
up to 03/07
as of 03/07 Up to 09/07
As of 09/07
