Home >> BMW >> 2009 >> 135i Convertible (E88) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F26 >> Fuse F26(With 1 Series_E81/E82/E87/E88 (TCU or ULF Universal Charging and Hand-Free Facility) As Of 03/07 Up to 09/07)

Fuse F26(With 1 Series_E81/E82/E87/E88 (TCU or ULF Universal Charging and Hand-Free Facility) As Of 03/07 Up to 09/07)

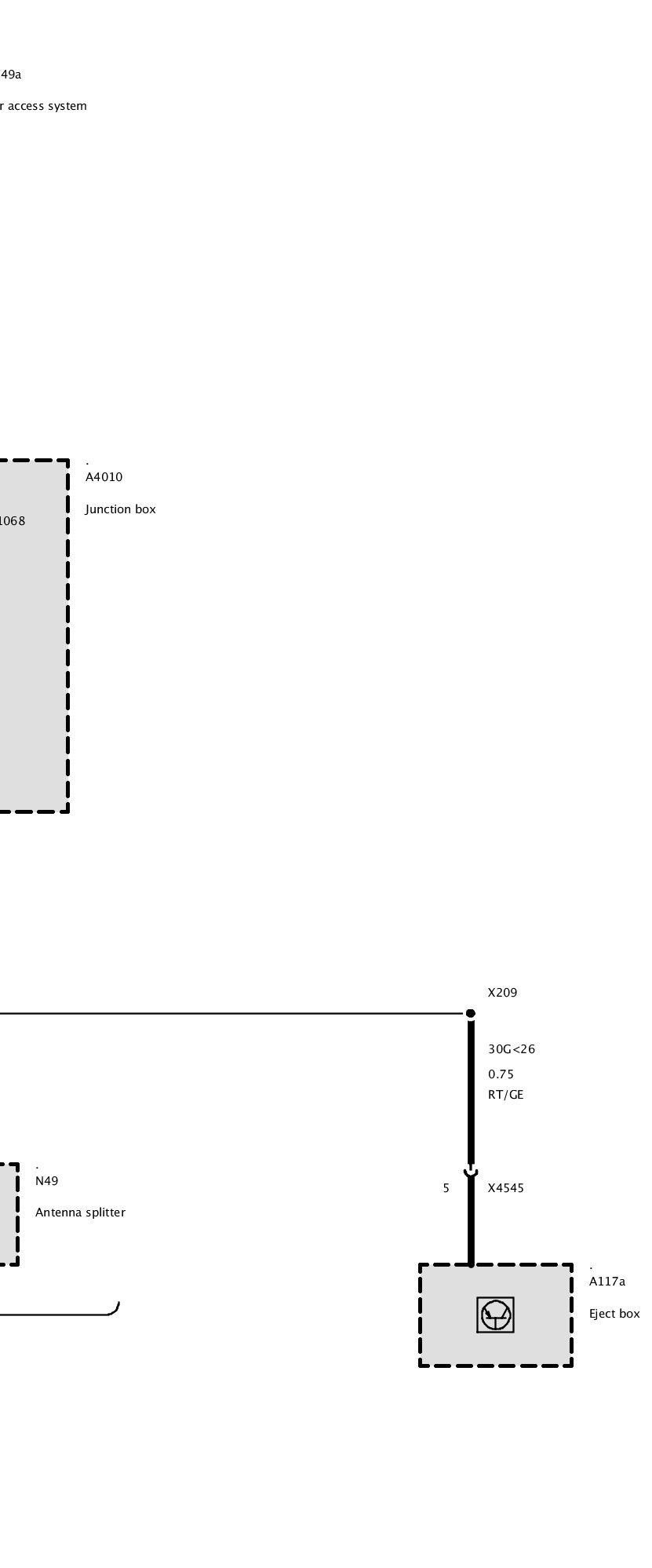

Fuse F26(1 Series_E81/E82/E87/E88(TCU Telematics Control Unit Or ULF Universal Charging And Hand-Free Facility)AS OF 03/07)


Part 1:




Part 2:
