Supply, Heating and Air Conditioning Control Unit
Supply, Heating and Air Conditioning Control Unit
Supply,
Heating And Air Conditioning
Control Unit

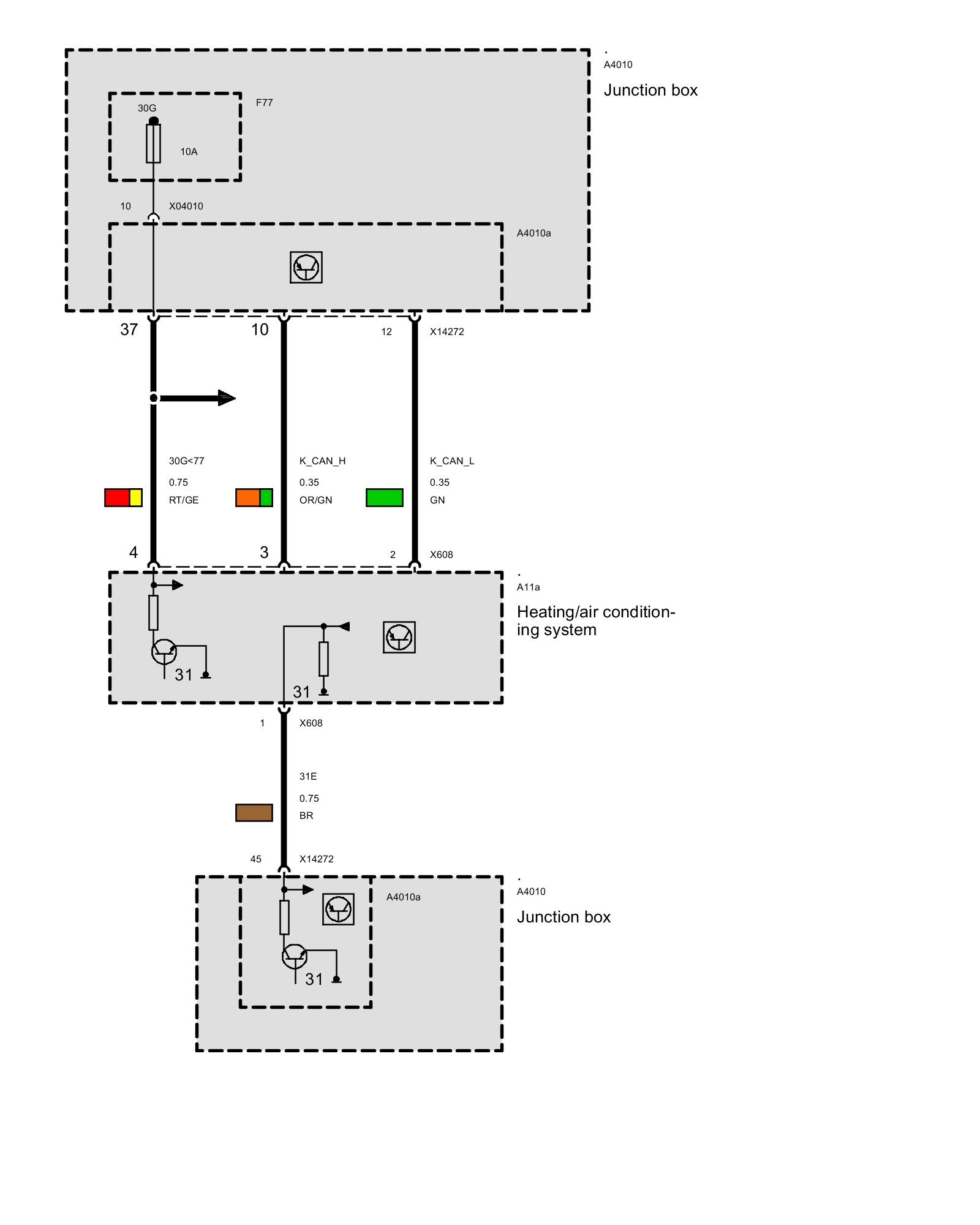

Up To 03/07

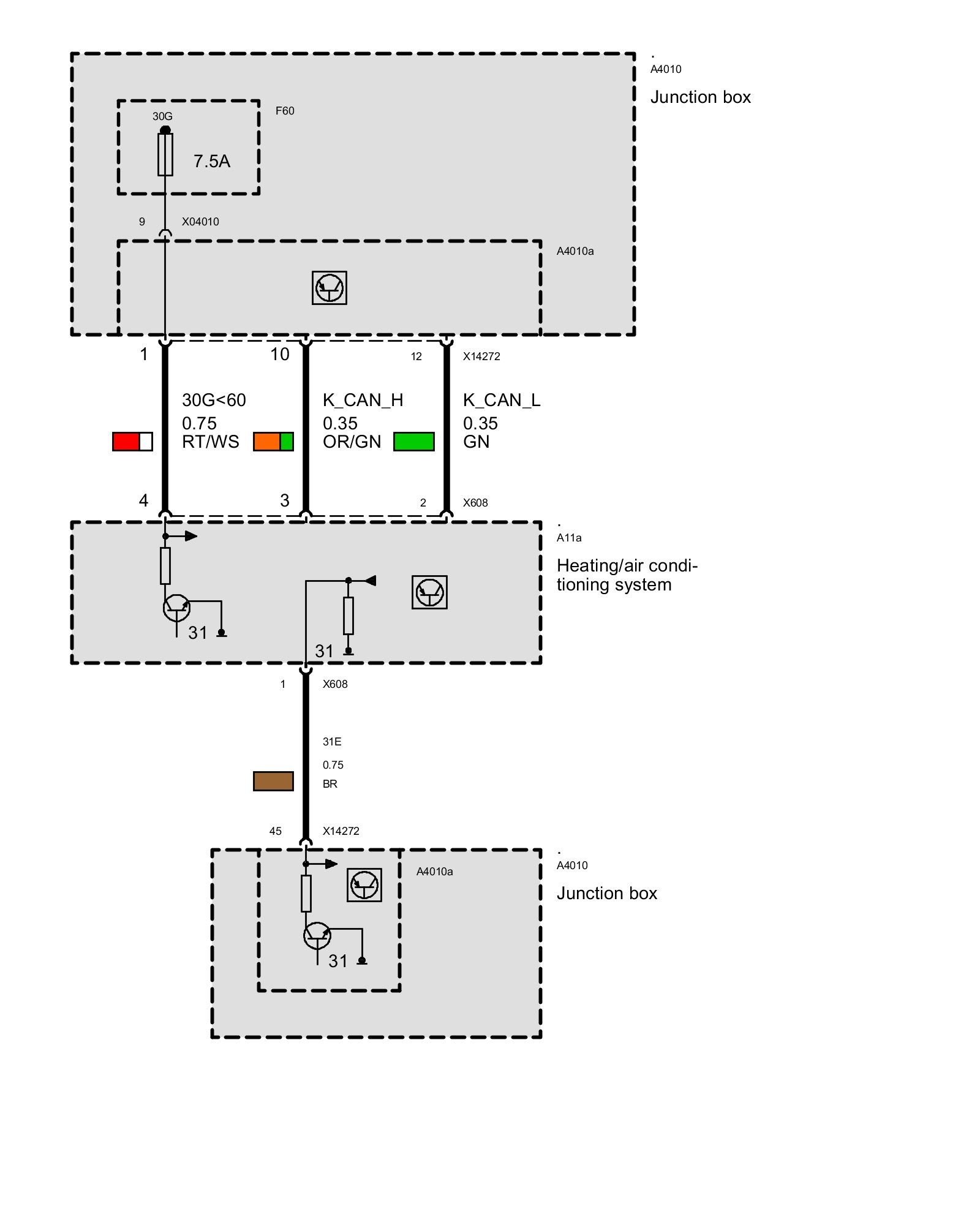

As Of 03/07 Up To 09/07
As Of 09/07
