Parking Assist Control Module

A81A Park Distance Control (PDC)

A81A Park Distance Control (PDC) (1 Series_E81/E82/E87/E88 As of 09/07)

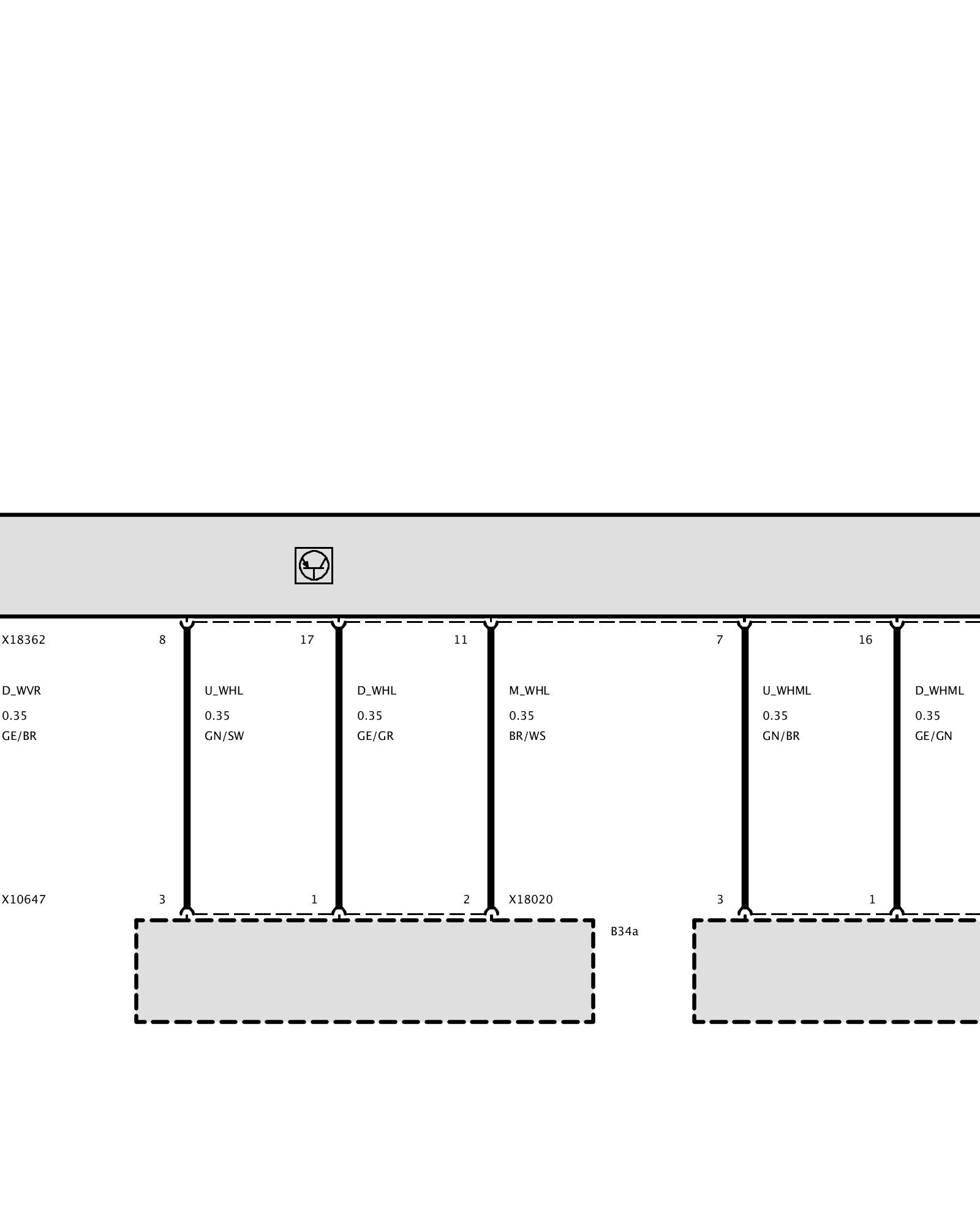

Part 1:

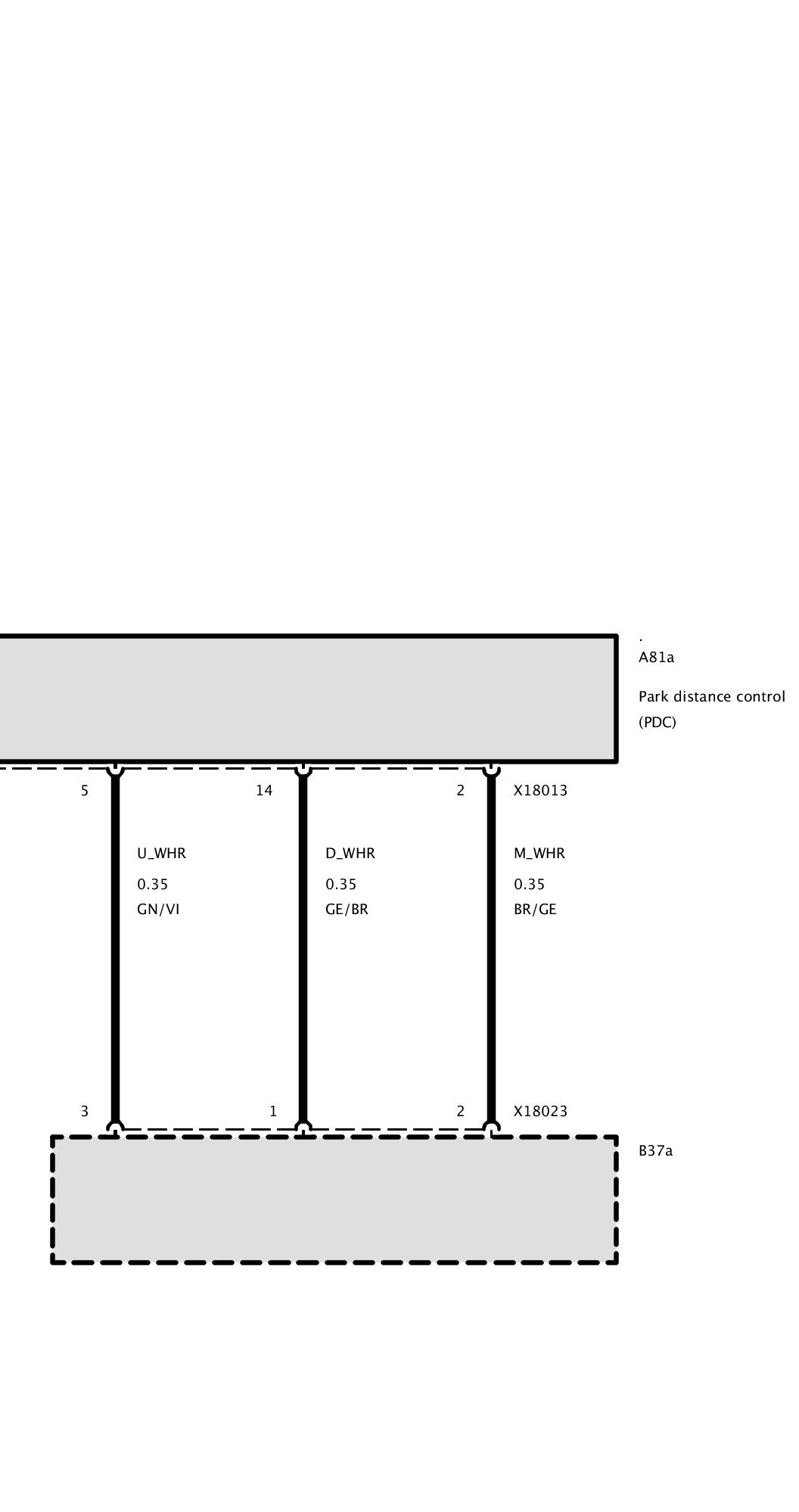

Part 2:

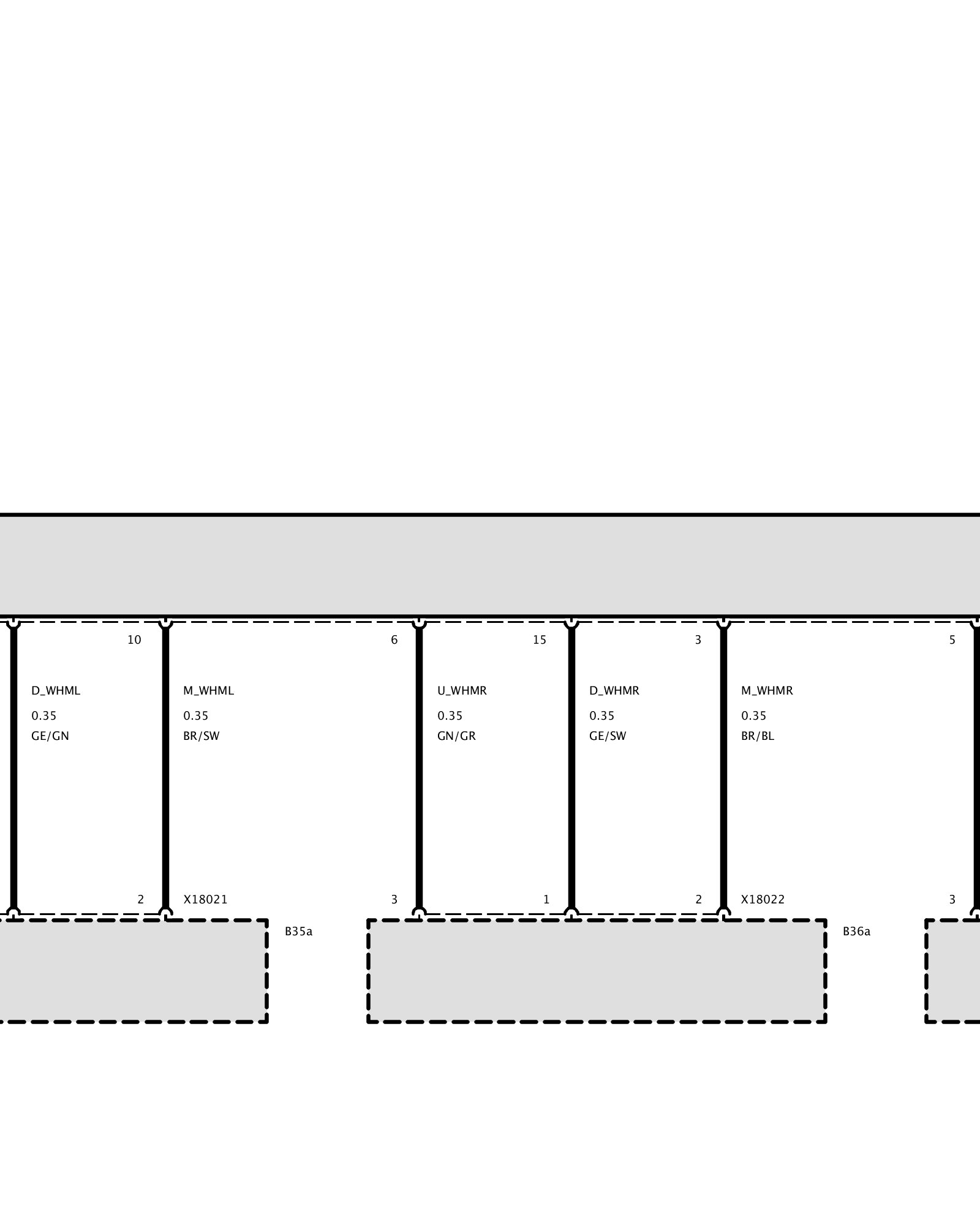

Part 3:

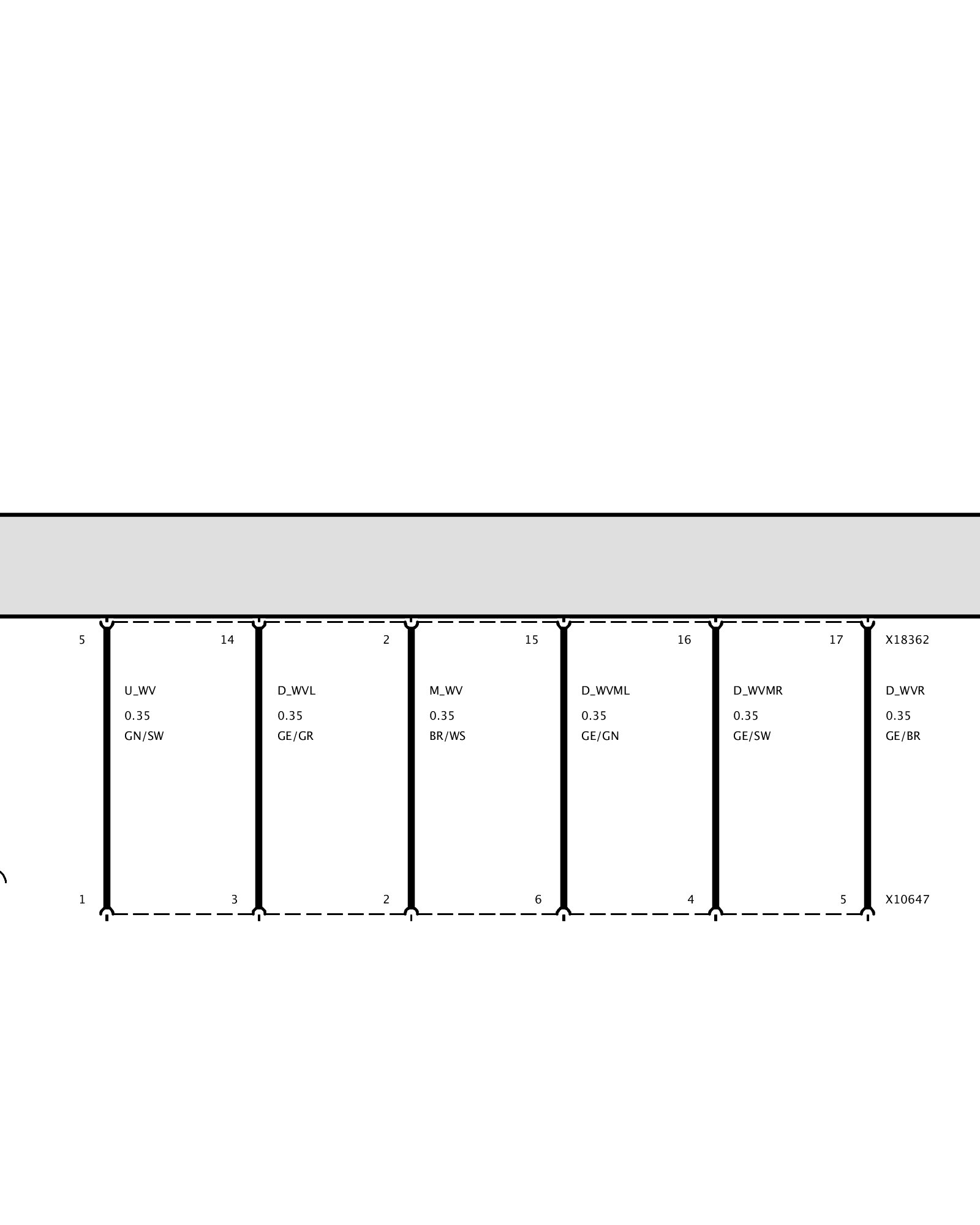

Part 4:

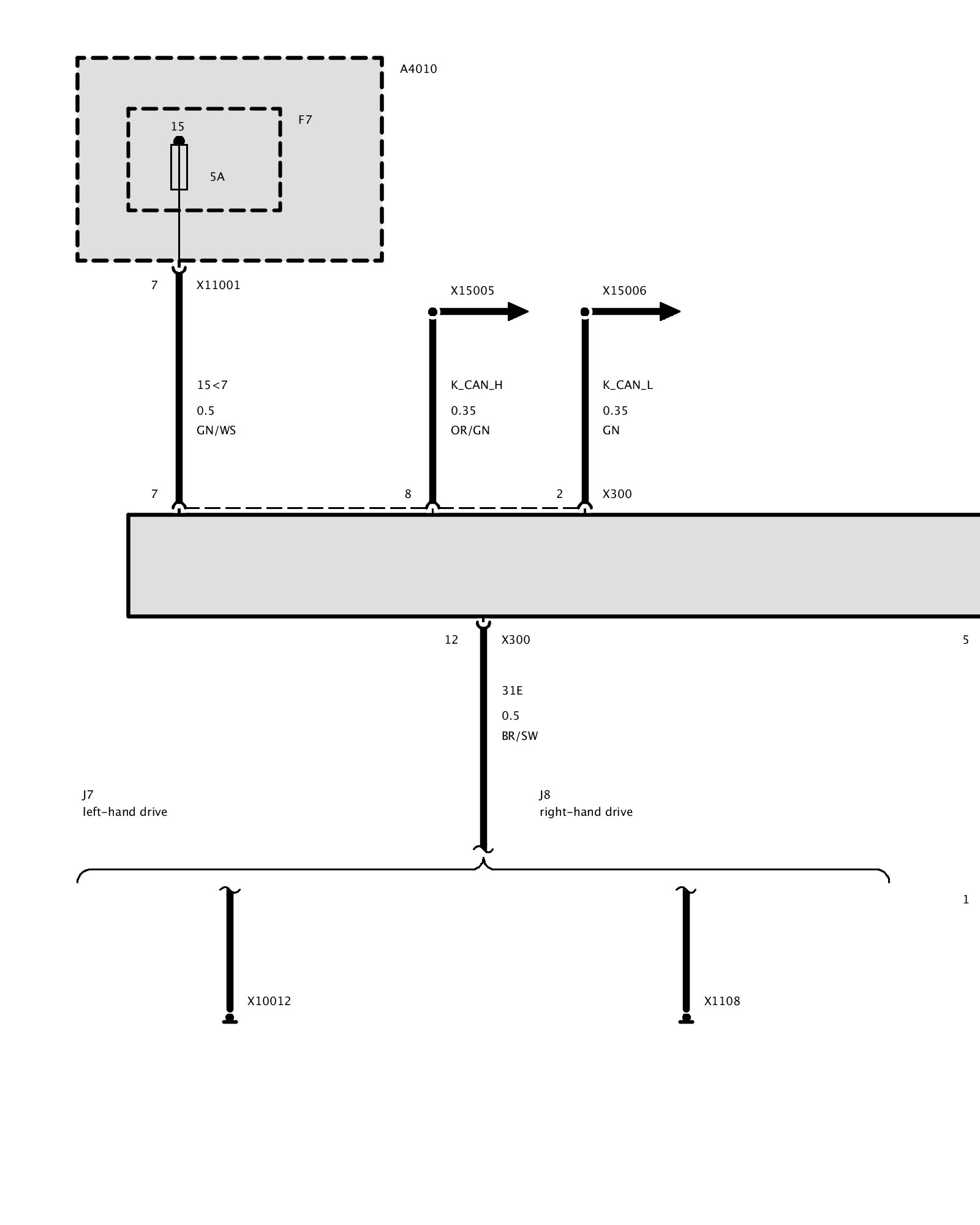

Part 5:
