Home >> BMW >> 2009 >> 135i Convertible (E88) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13823

X13823

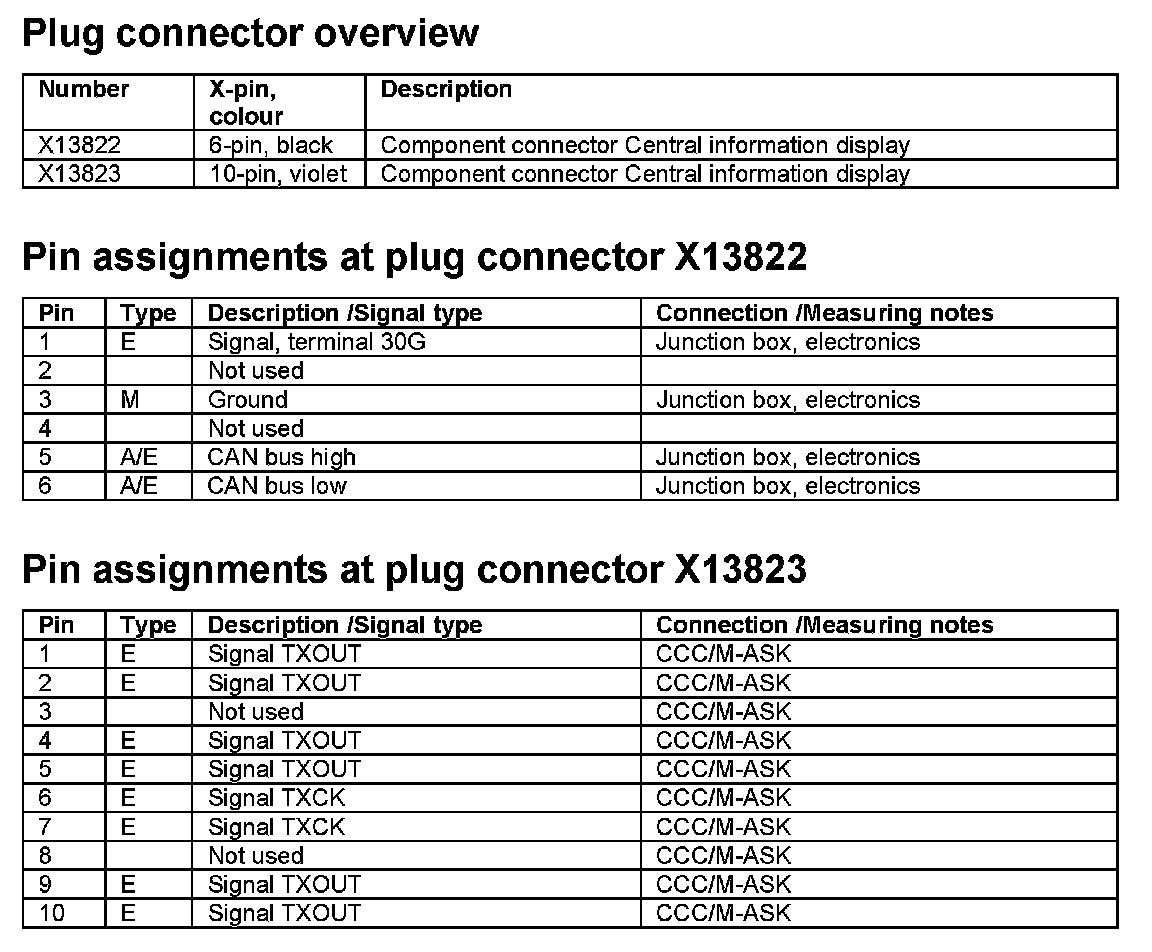

A165a Central Information Display Pin Assignments
