Home >> BMW >> 2009 >> 135i Convertible (E88) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13812 >> N38b Car Information Computer CIC

N38b Car Information Computer CIC

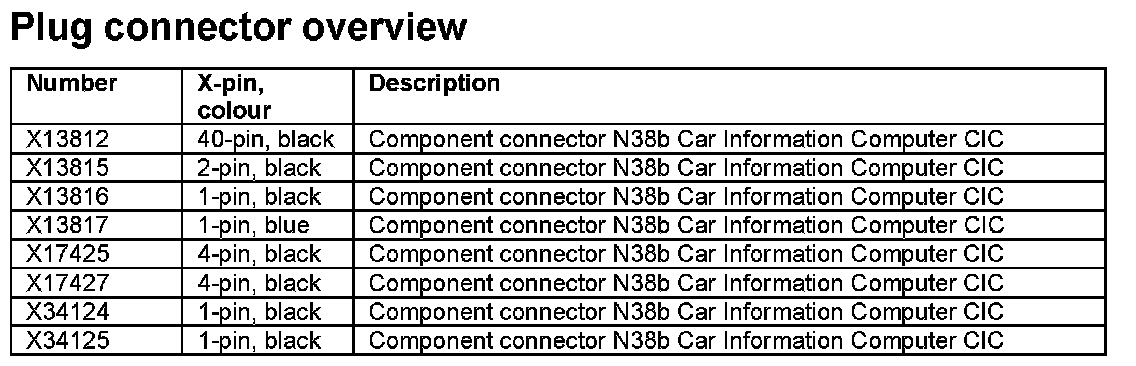

Connector View X13812

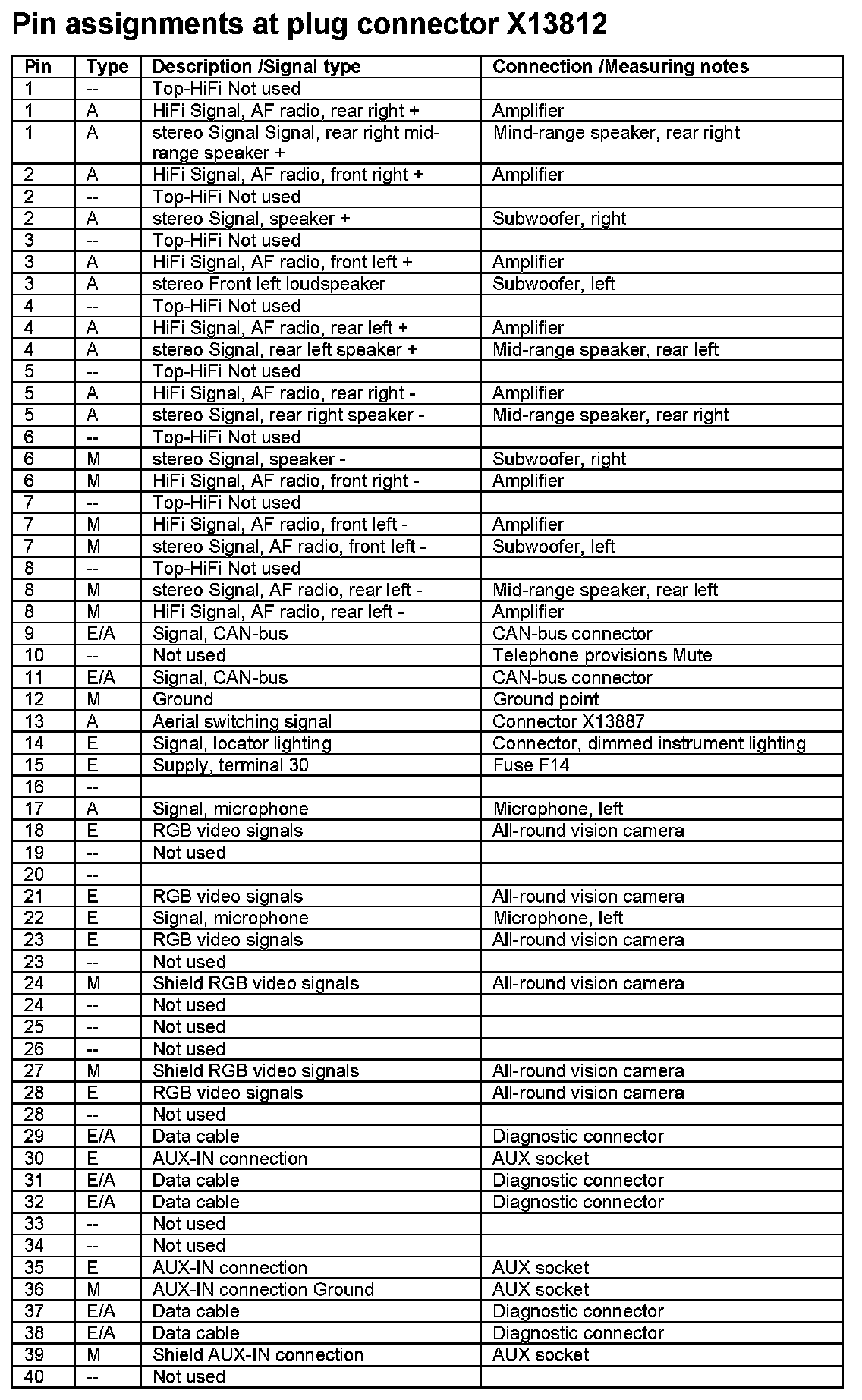

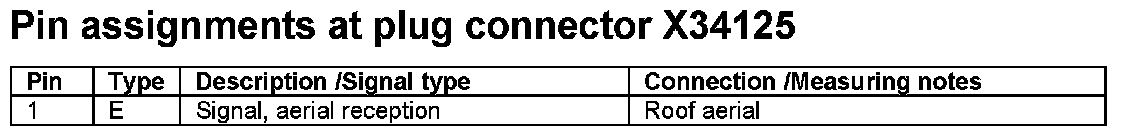

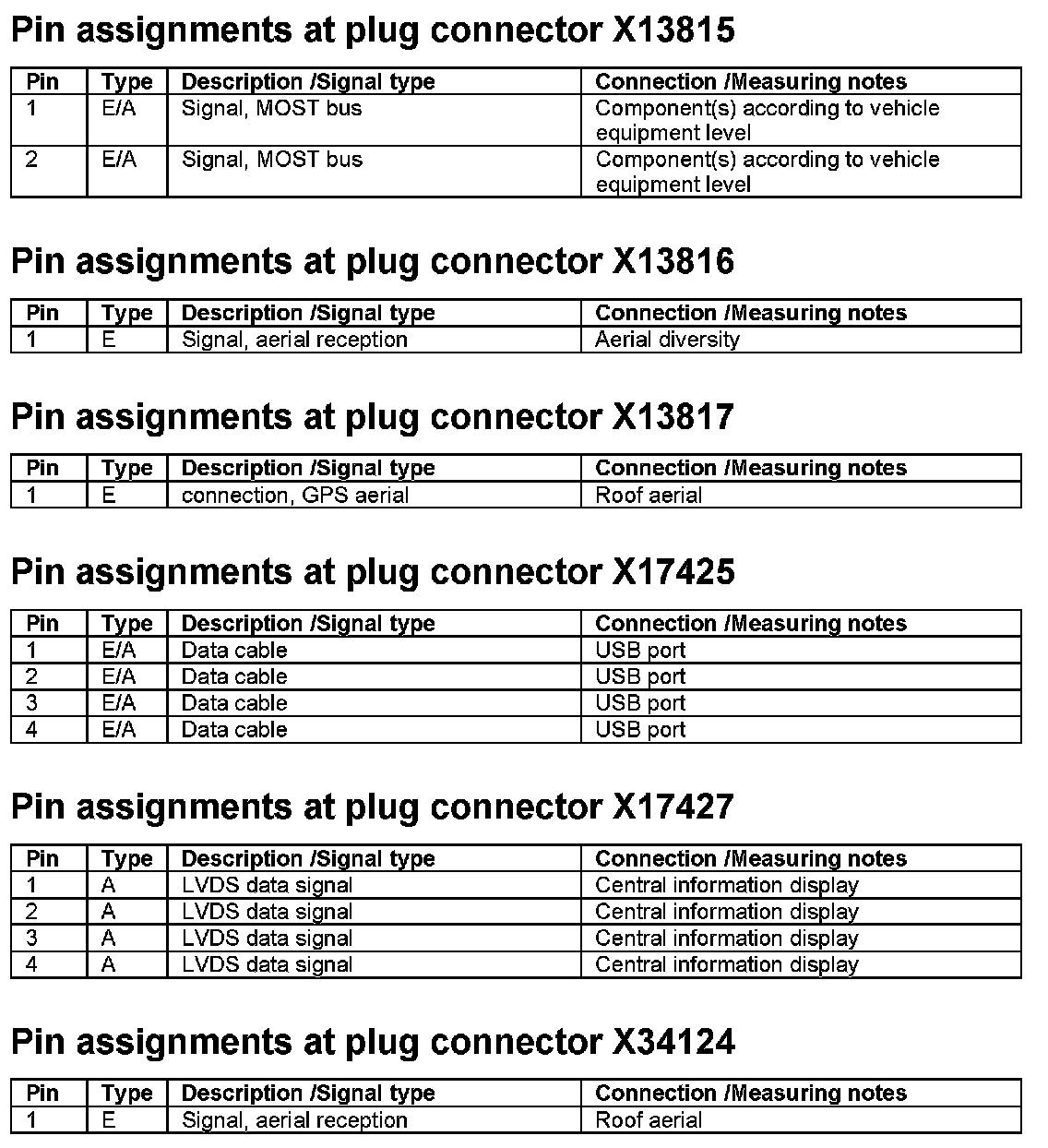

N38b Car Information Computer CIC Pin Assignments
