Rattling, Instrument Panel Against A-Pillar

Rattling From The Area Of The Instrument Panel Trim, A-pillar

Repair instruction for 'rattling from the area of the instrument panel trim, A-pillar'

Complaint
Rattling noise from the area of dashboard to A-pillar panel when driving on poor road surfaces.

Cause: Missing felt on the guide pins of the A-pillar trim panel.

Repair instruction
Remove the A-pillar trim panel in accordance with repair instructions RA5143201.

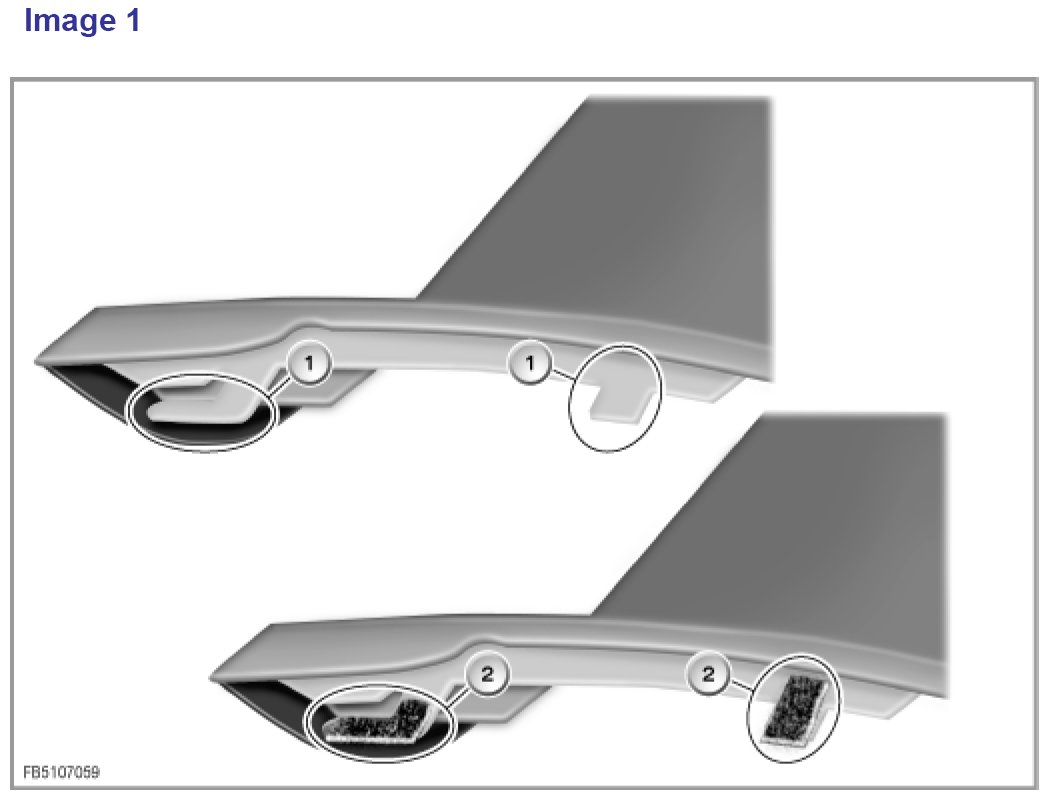

Fit felt strips on the guide pins of the A-pillar trim panel. See Fig. 1.







A-pillar trim panel without felt strips on the guide pins (1).

Apply felt strips to the guide pins (2).
