Function Carrier Crackles
Crackling In The Area Of The Function Carrier

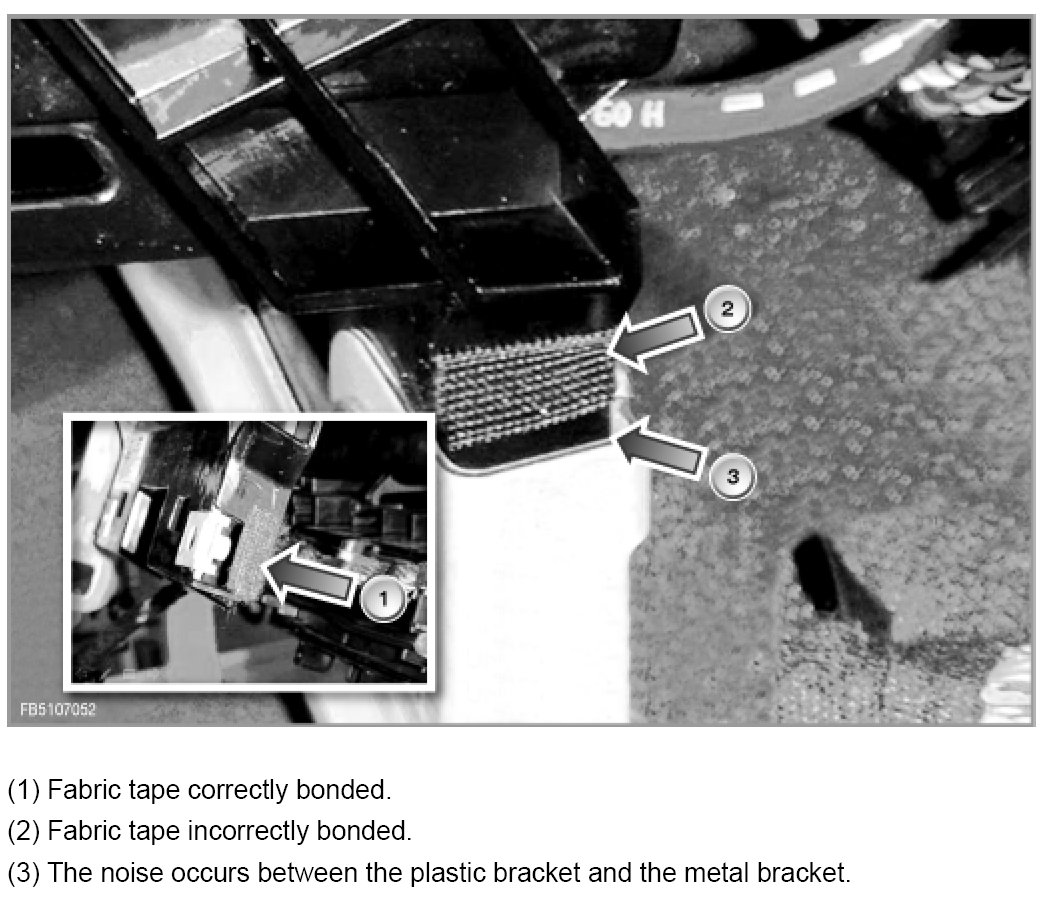

Repair instruction for 'crackling in the area of the function carrier'
Function carrier
Function carrier

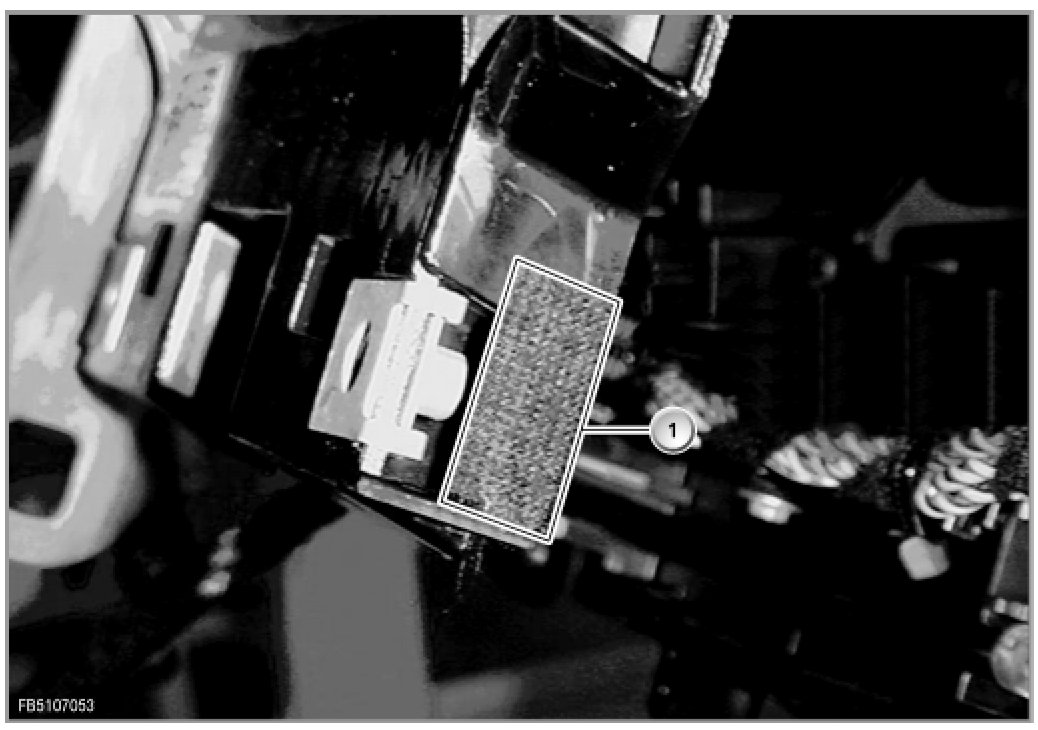

The fabric tape (1) must be bonded in longitudinal direction.
