Removing and Installing/Replacing Left or Right Rear Head Restraint
Removing and Installing/Replacing Left or Right Rear Head Restraint
52 24 390 - Removing and installing or replacing left or right rear head restraint
Move headrest up as far as possible.

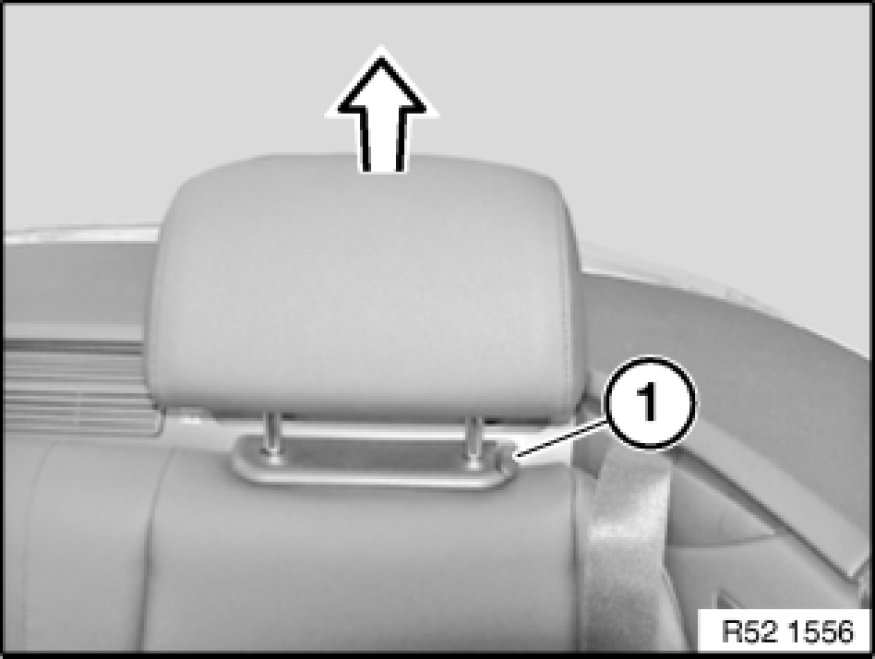

Press lock (1) and pull out head restraint.
