52 13 198 Removing and Installing or Replacing Rear Panel on Left or Right Front Seat Backrest

52 13 198 Removing And Installing Or Replacing Rear Panel On Left Or Right Front Seat Backrest

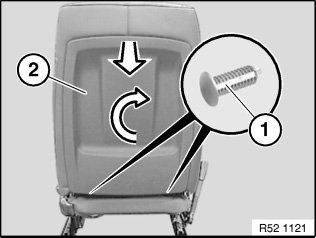

Release clips (1) with diagonal cutting pliers.

Remove rear panel (2) downwards with a turning action.

NOTE: Remove remnants of clips.

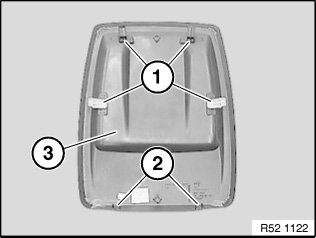

Installation:
Retaining hooks (1) and bore holes (2) on rear panel (3) must not be damaged.

Replace faulty clips.
