67 31 521 Removing and Installing/Replacing Drive Unit For Seat Height Adjustment

67 31 521 Removing And Installing/replacing Drive Unit For Seat Height Adjustment







Necessary preliminary tasks:
- Remove front seat

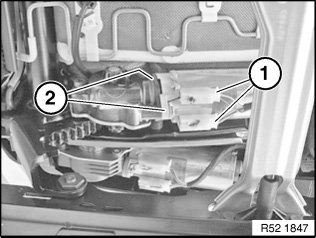

Unlock plug connections (1) and disconnect.

Unfasten screws (2).

Remove drive unit for seat height adjustment.

Installation:
Make sure drive shaft is correctly seated in gearbox.
