67 31 501 Removing and Installing/Replacing Drive Unit For Longitudinal Seat Adjustment

67 31 501 Removing And Installing/replacing Drive Unit For Longitudinal Seat Adjustment







Necessary preliminary tasks:
- Remove front seat

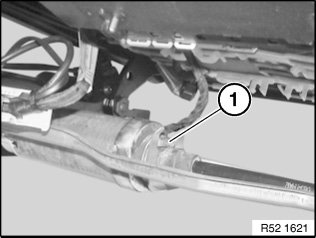

Unfasten plug connection (1) and disconnect.

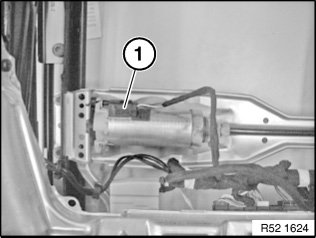

Bend metal tab (1) open.

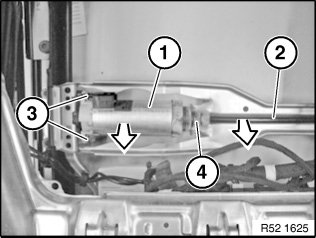

Lift drive (1) and flex shaft (2) out of guide (4) in direction of arrow.

Detach drive (1) from rubber mounts (3).

Detach flex shaft (2) from drive (1).







Installation:
Slide short flex shaft (1) into longitudinal seat adjustment gearing square.
Bend long flex shaft (2) upwards and slide into longitudinal seat adjustment gearing.
Clip motor and flex shafts into carrier plate.
Make sure flex shafts are correctly seated in gearboxes.
