Noises Area, Cowl Panel

Noises From Front From The Area Of The Cowl Panel, A-Pillar

The following list shows all the currently known fault patterns that can lead to noises in the area of the cowl panel, A-pillar.

Noises from front from the area of the cowl panel, A-pillar
Determine the fault pattern on the vehicle and enter the fault code in the keypad field in the next test step. After entering the fault code, the repair instructions are displayed.

Known faults

No. Fault pattern
1 Grating noise from the connection of A-pillar trim to dashboard?
2 Rattling noise from the trim panel for cowl panel due to loose parts?

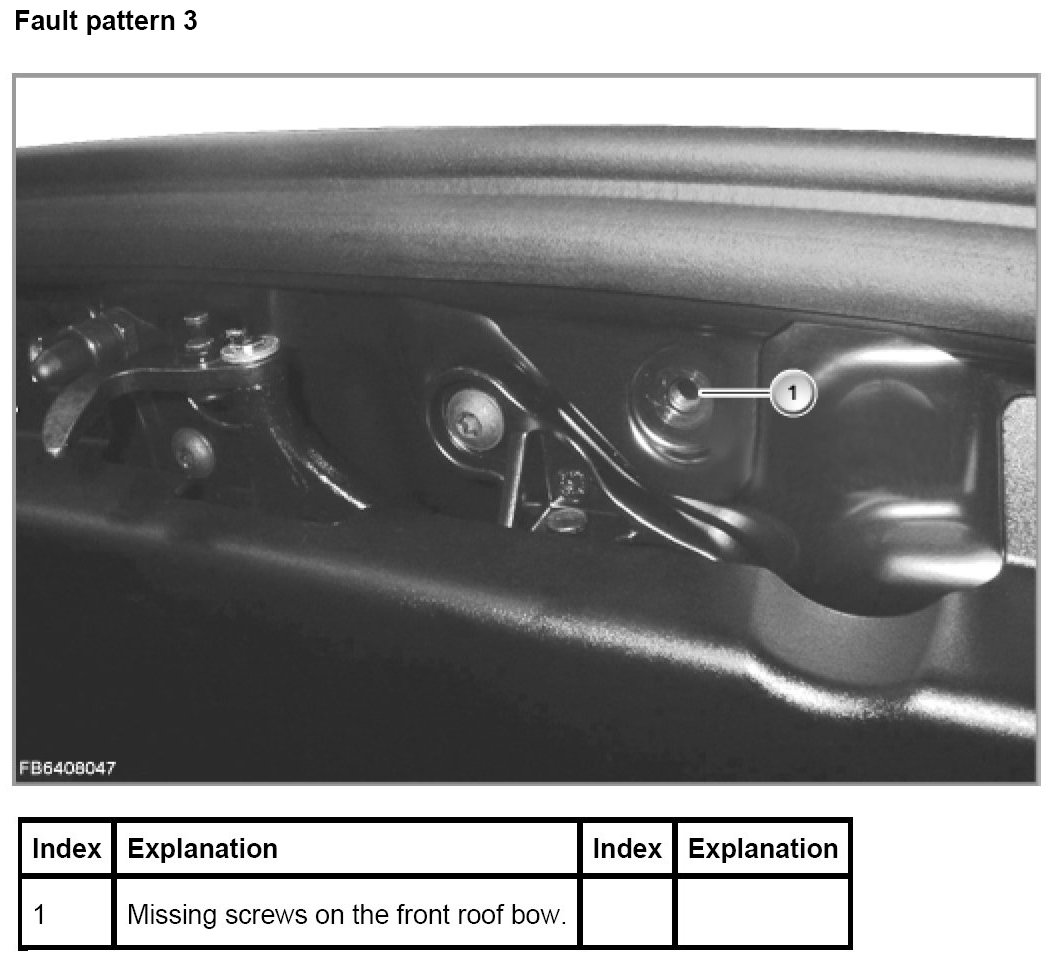

3 Rattling noise from the cowl panel due to loose or missing screws? See illustration.

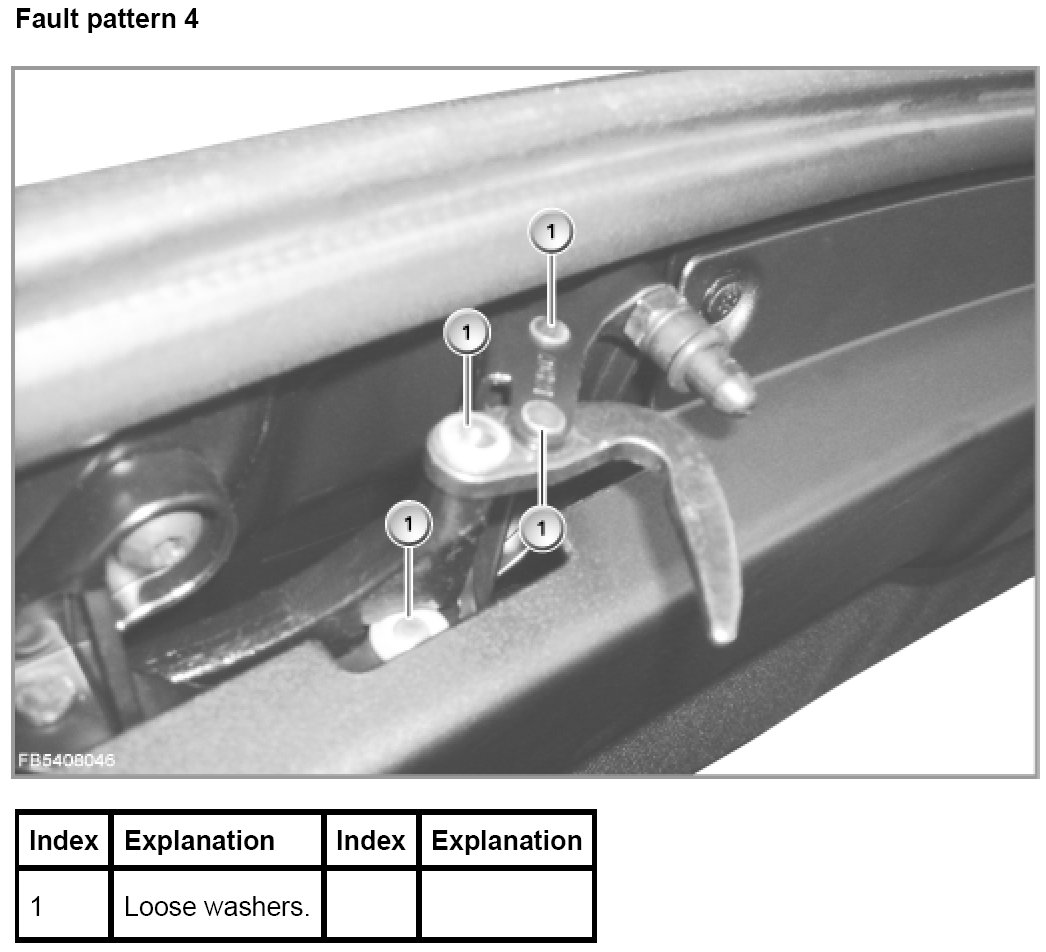

4 Rattling noise from the cowl panel fastener due to loose washers under the riveting? See illustration.
