51 46 030 Removing and Installing/Replacing Trim For Belt Guide on Left or Right

51 46 030 - Removing and installing/replacing trim for belt guide on left or right





Warning!
Risk of injury!
There is a danger of trapping when working in the area of the convertible top system. Make sure convertible top is not actuated during work.





Necessary preliminary tasks:
- Open convertible top compartment lid, fold in convertible top if necessary

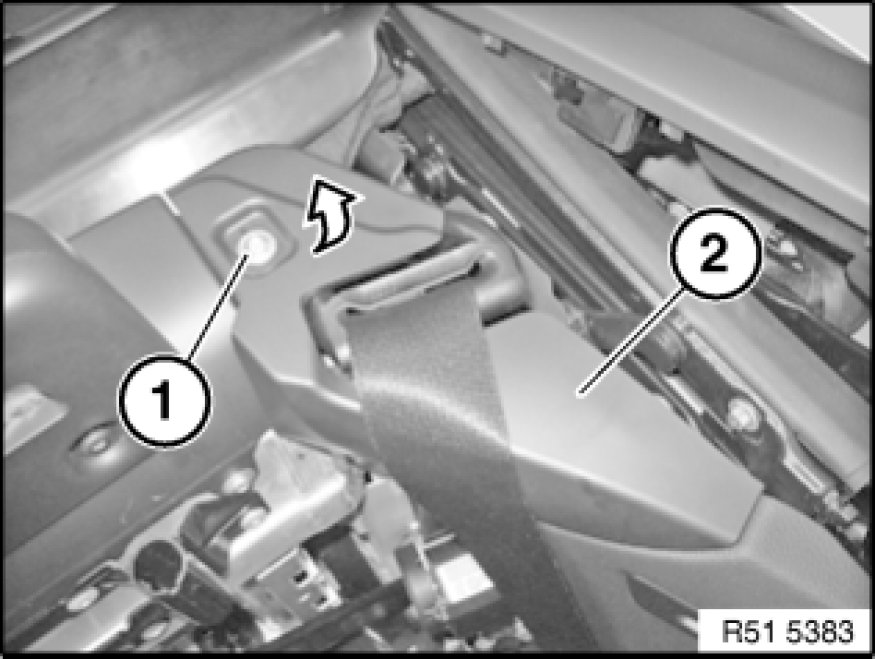

Release screw (1).
Raise belt and remove cover (2) from side panel towards top.

Installation Note:
Make sure cover (2) is correctly seated on side panel.





Installation Note:

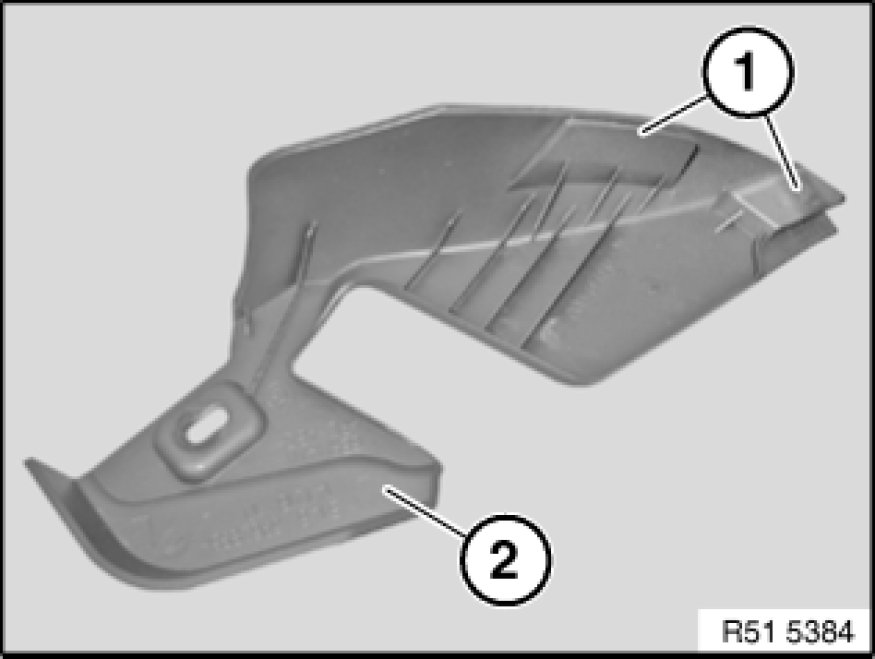

Guides (1) on cover (2) must not be damaged.
