Removing and Installing/Replacing Arrester Hook on Engine Hood

51 23 160 - Removing and installing/replacing arrester hook on engine hood





Raise bonnet/hood lid.

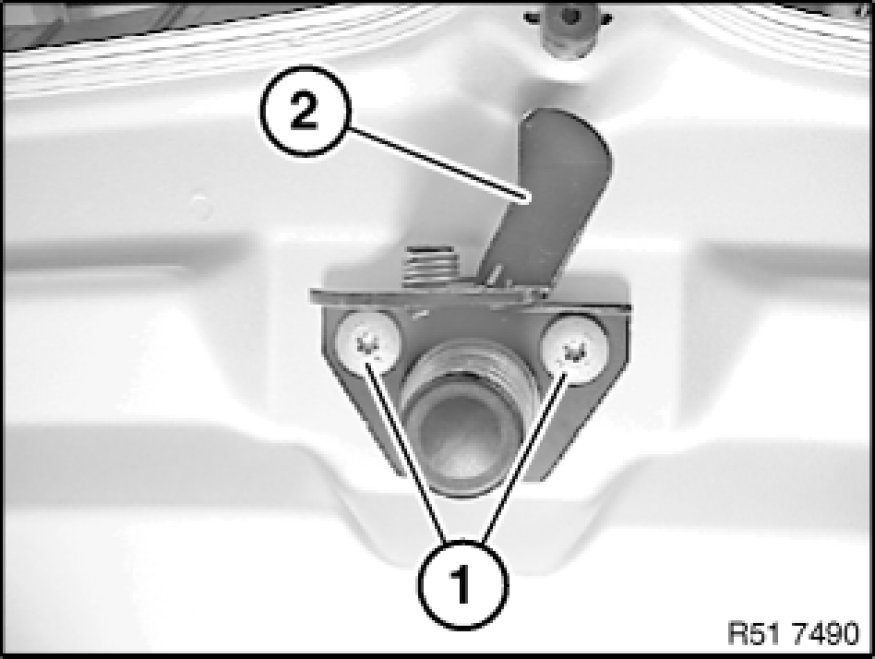

Release screws (1) and remove arrester hook (2).
Tightening torque 51 23 1AZ [1][2]Hood Latch.
