65 13 080 Removing and Installing/Replacing Speaker (Tweeter In Rear Side Trim Panel)

65 13 080 - Removing and installing/replacing speaker (tweeter in rear side trim panel)





Necessary preliminary tasks:
- Remove rear side trim panel Removing and Installing Rear Left or Right Side Trim Panel

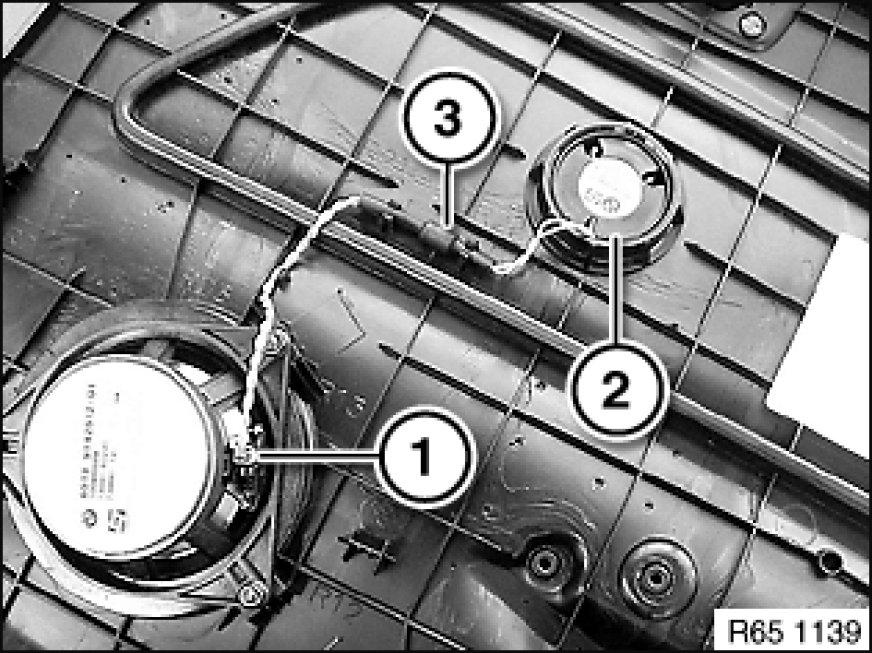

Disconnect plug connection (1).
Release plastic nut (2) in counterclockwise direction and feed out speaker towards front.

Installation:
Ensure correct cable routing (3).
Do not place plastic nut (2) on thread at a skewed angle.

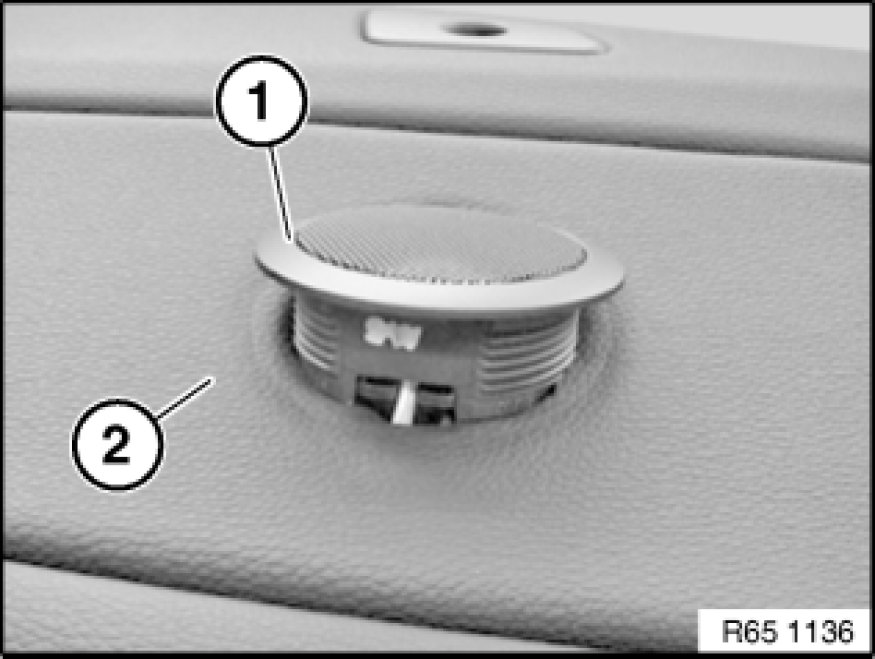

Installation:
Make sure speaker (2) is correctly seated in door trim panel.
Door trim panel (2) must not be damaged.
