65 12 050 Removing and Installing/Replacing Left or Right Central Bass Speaker (Under Front Seat)

65 12 050 Removing And Installing/replacing Left Or Right Central Bass Speaker (under Front Seat)







Necessary preliminary tasks:
- Remove front seat
- If necessary, remove panel for door pillar (bottom)

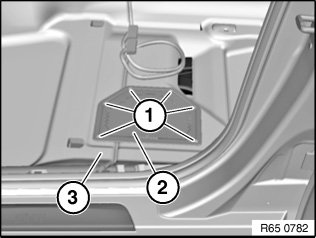

Release screws (1).

Remove central bass speaker trim (2) from floor trim (3).

Fold back floor panel (3) in direction of arrow.







NOTE: Floor panel shown removed for purposes of clarity.

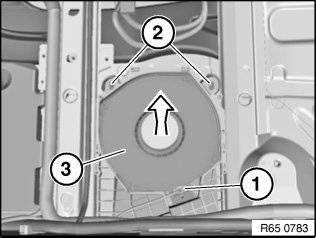

Unfasten plug connection (1) and disconnect.

Unscrew nuts (2).

Feed out central bass speaker (3) in direction of arrow and remove.







Installation:

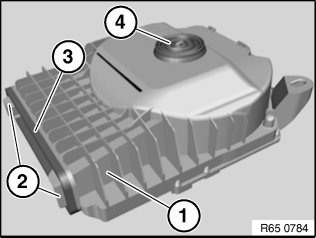

Make sure seal (3) and rubber damper (4) are correctly seated on central bass speaker (1).

Insert central bass speaker (1) with guides (2) exactly in frame side member.
