84 31 020 Removing and Installing/Replacing Hands-Free System Speaker

84 31 020 Removing And Installing/replacing Hands-free System Speaker







Necessary preliminary tasks:
- Remove trim for pedal assembly

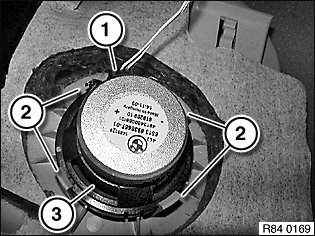

Disconnect plug connection (1).

If necessary, release cable tie from catches (2).

Unlock catches (2) and remove speaker (3) from mounting.

Installation:
Catches (2) must not be damaged.

Guide lugs of mounting must be seated in grooves of speaker (3).

Speaker (3) must snap audibly into place in mounting.
