A149a Car Access System



A149A Car Access System

A149A Car Access System (1 Series_E81/E82/E87/E88 As of 2007_09)

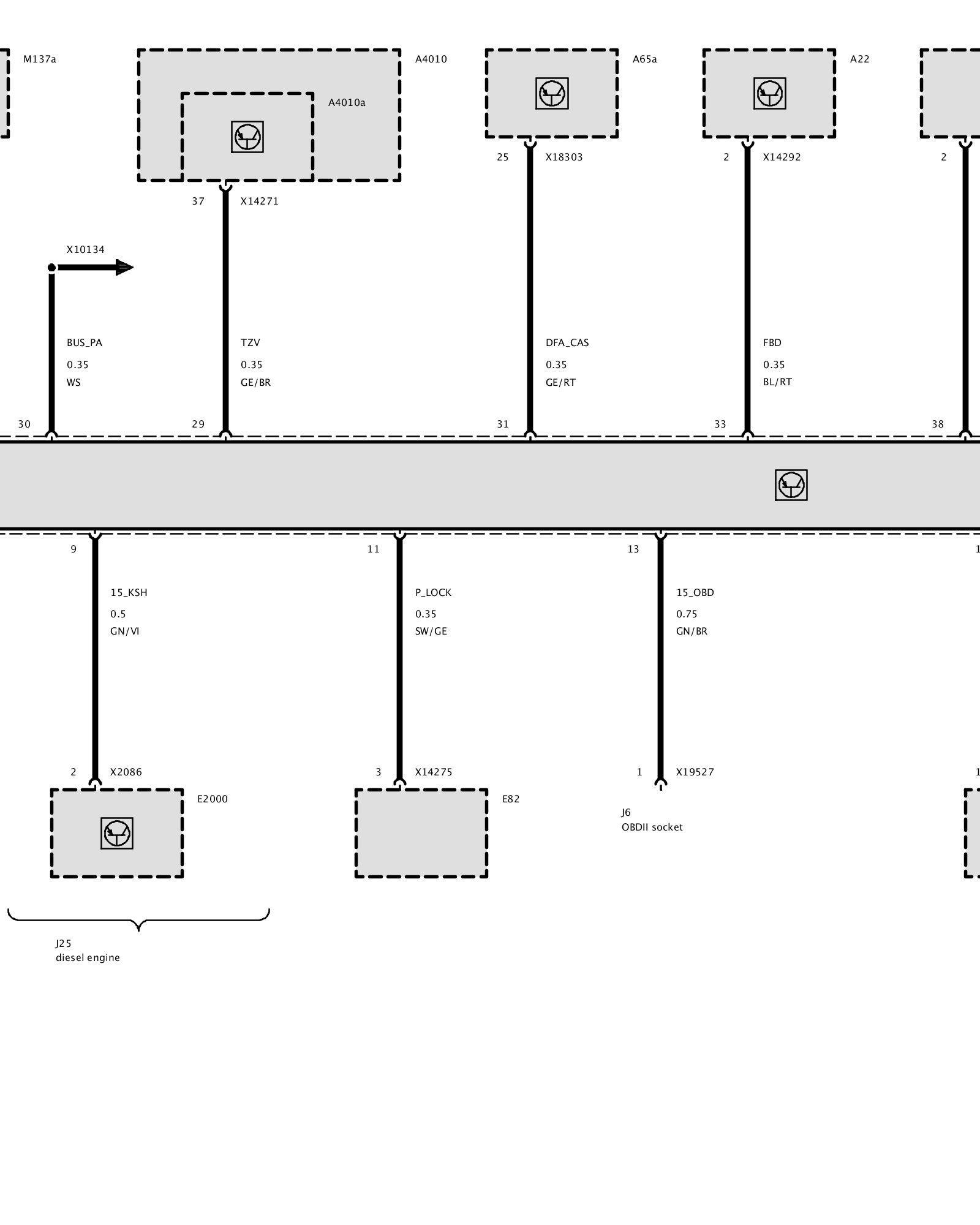

Part 1:

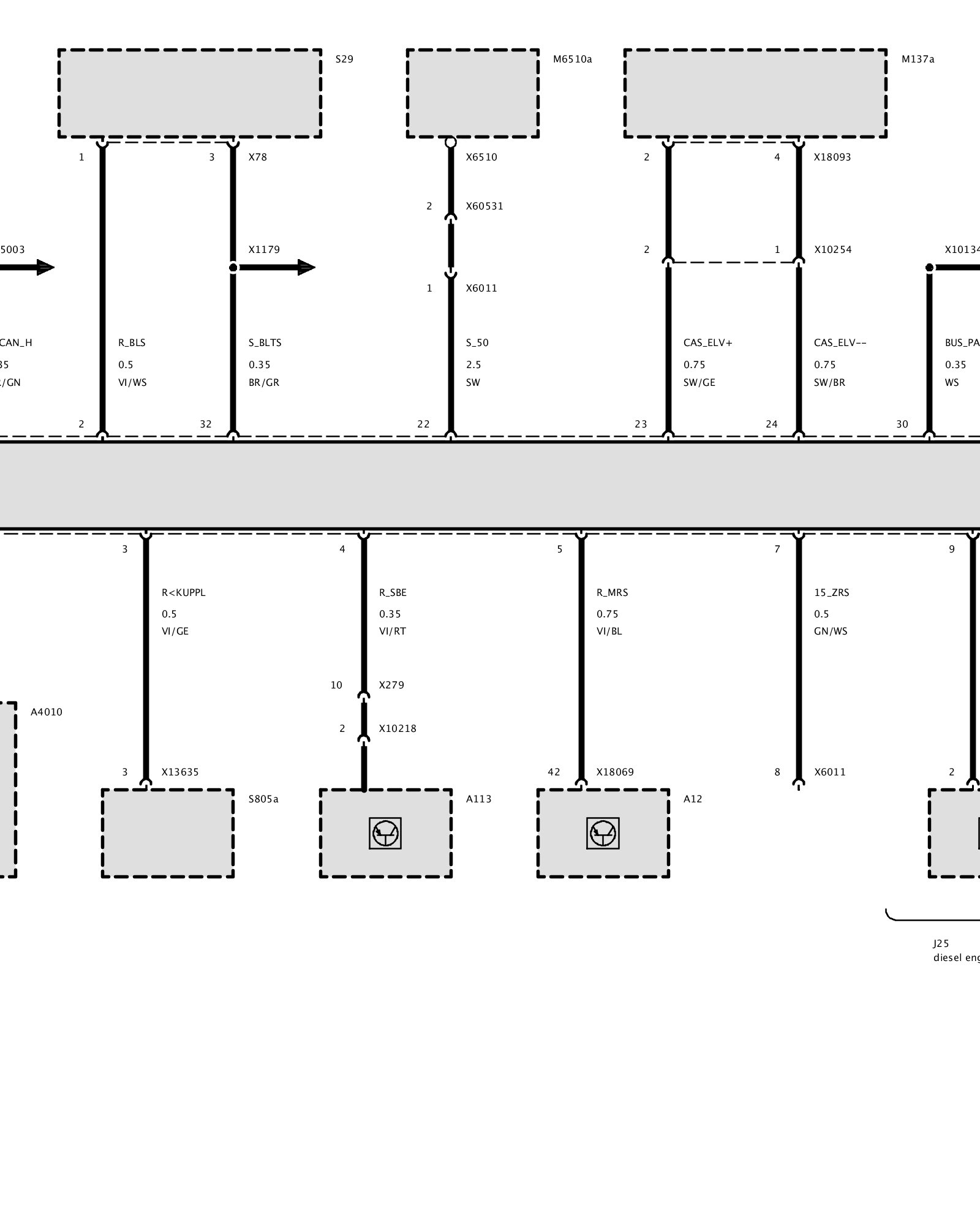

Part 2:

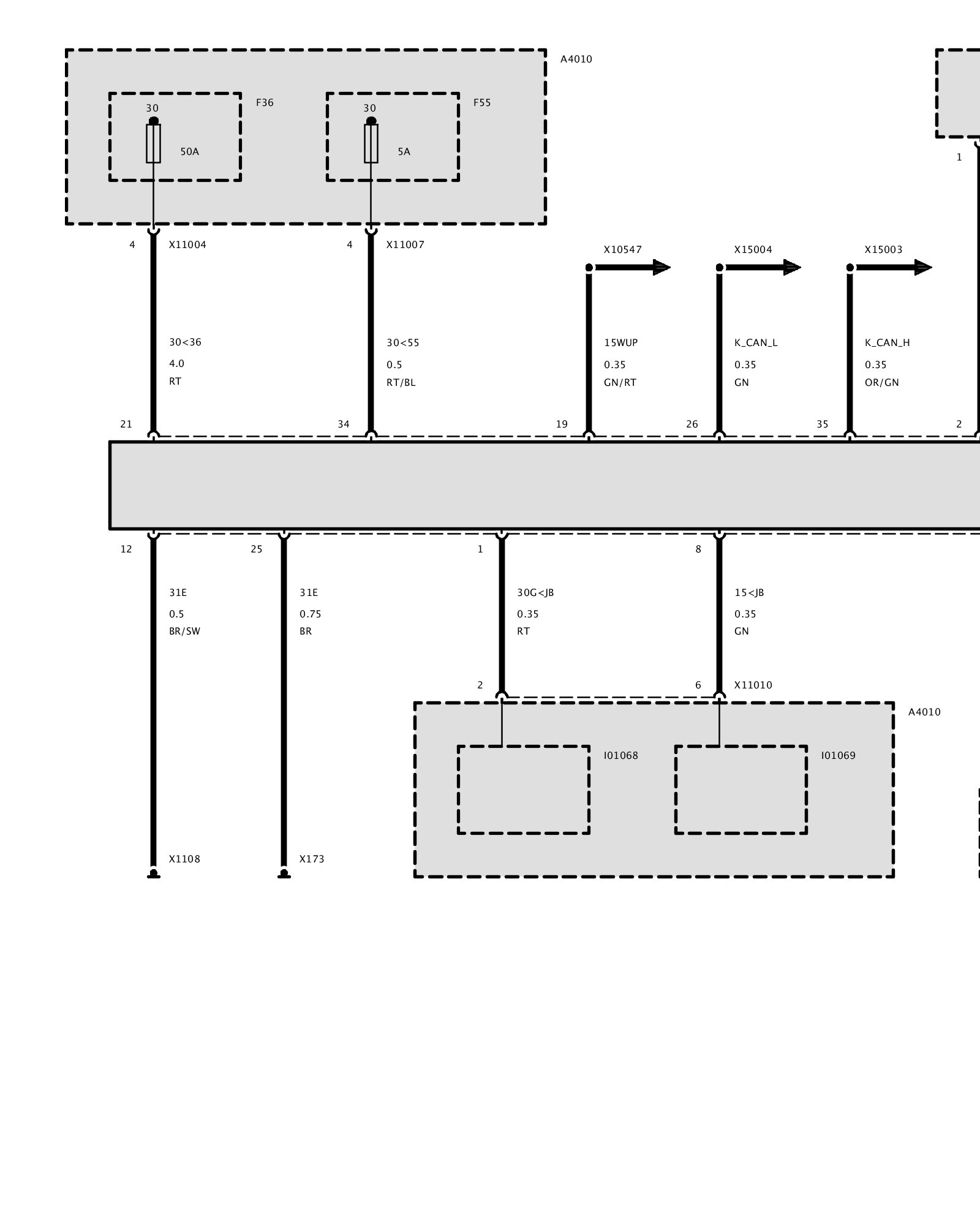

Part 3:

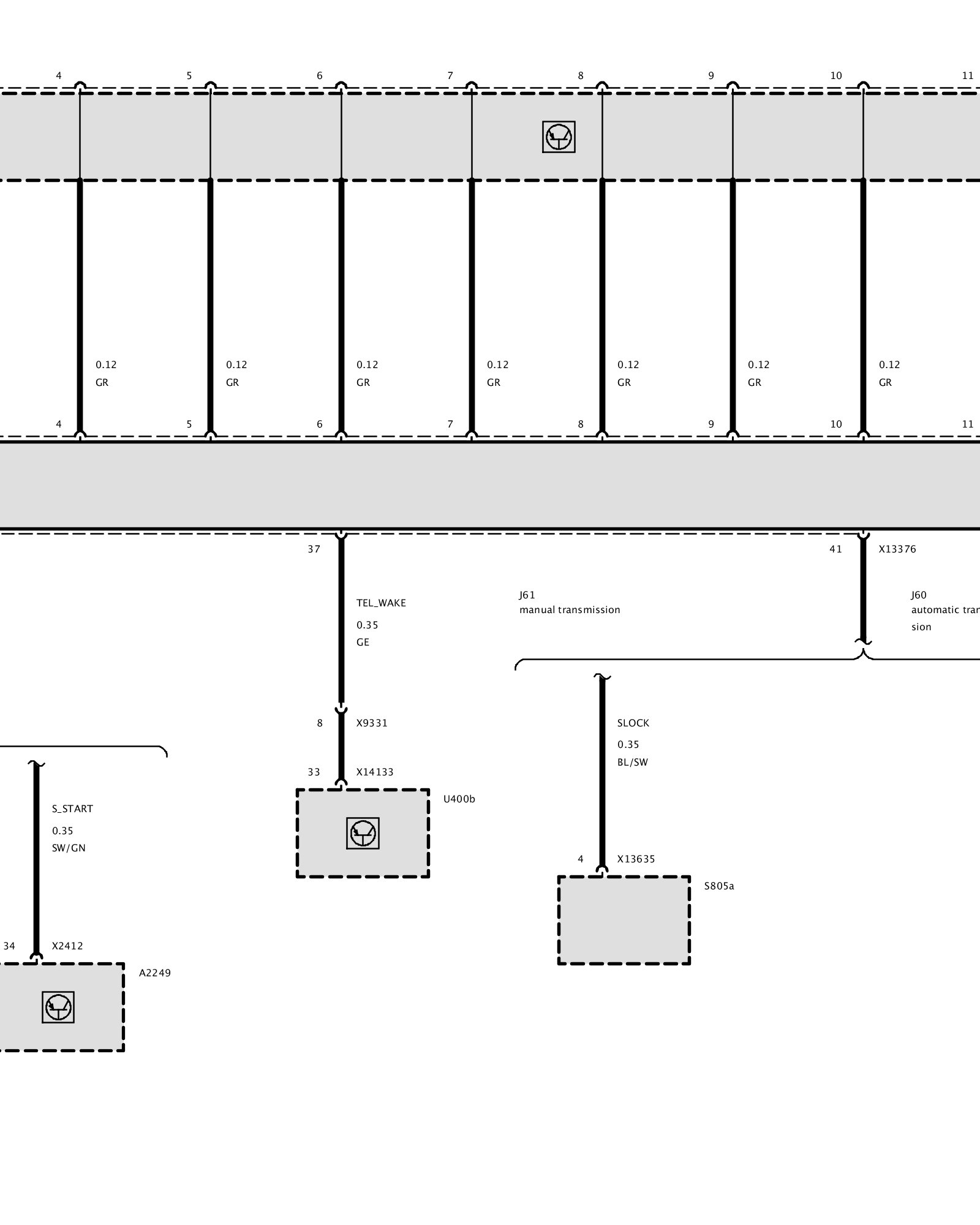

Part 4:

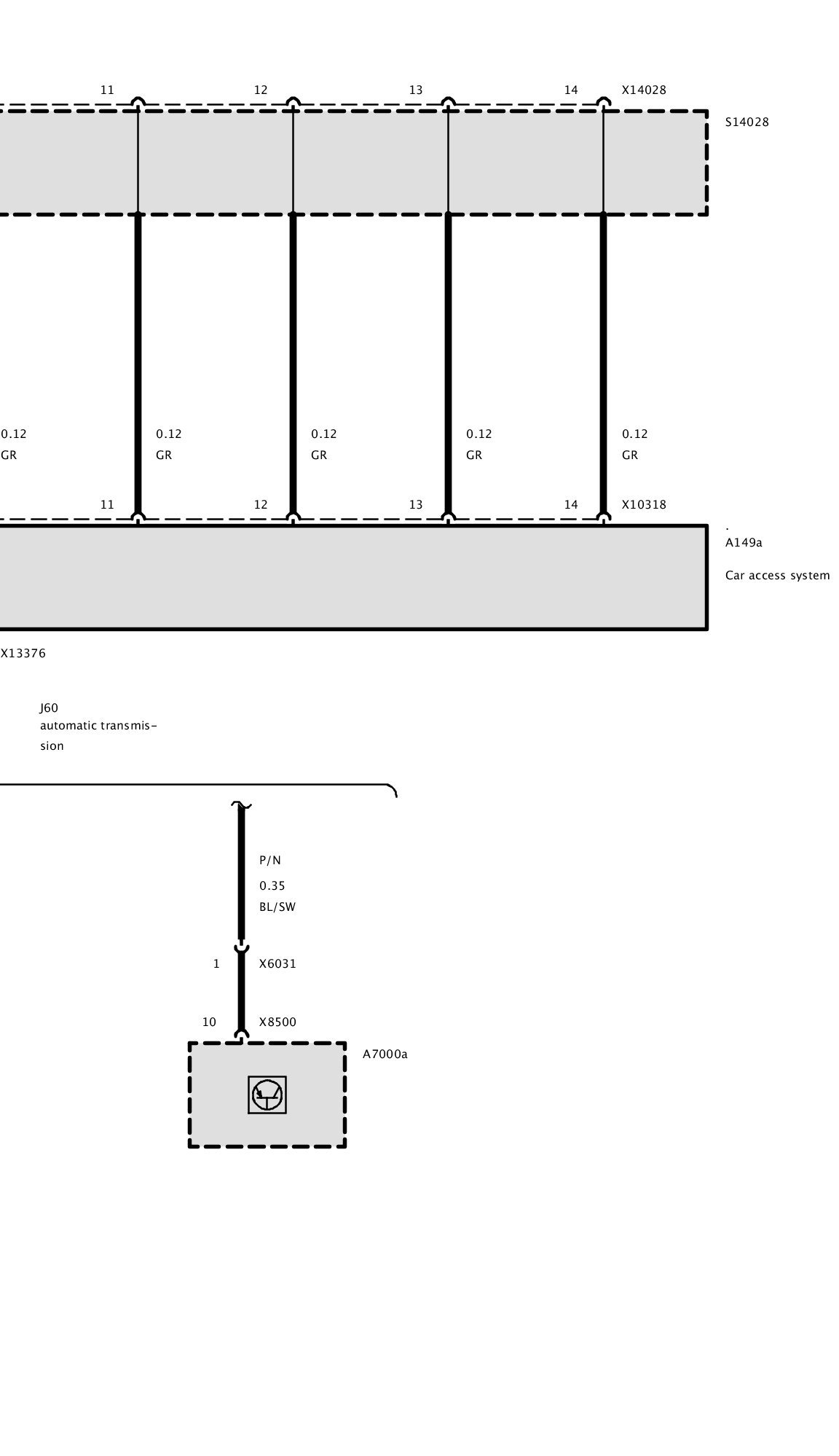

Part 5:

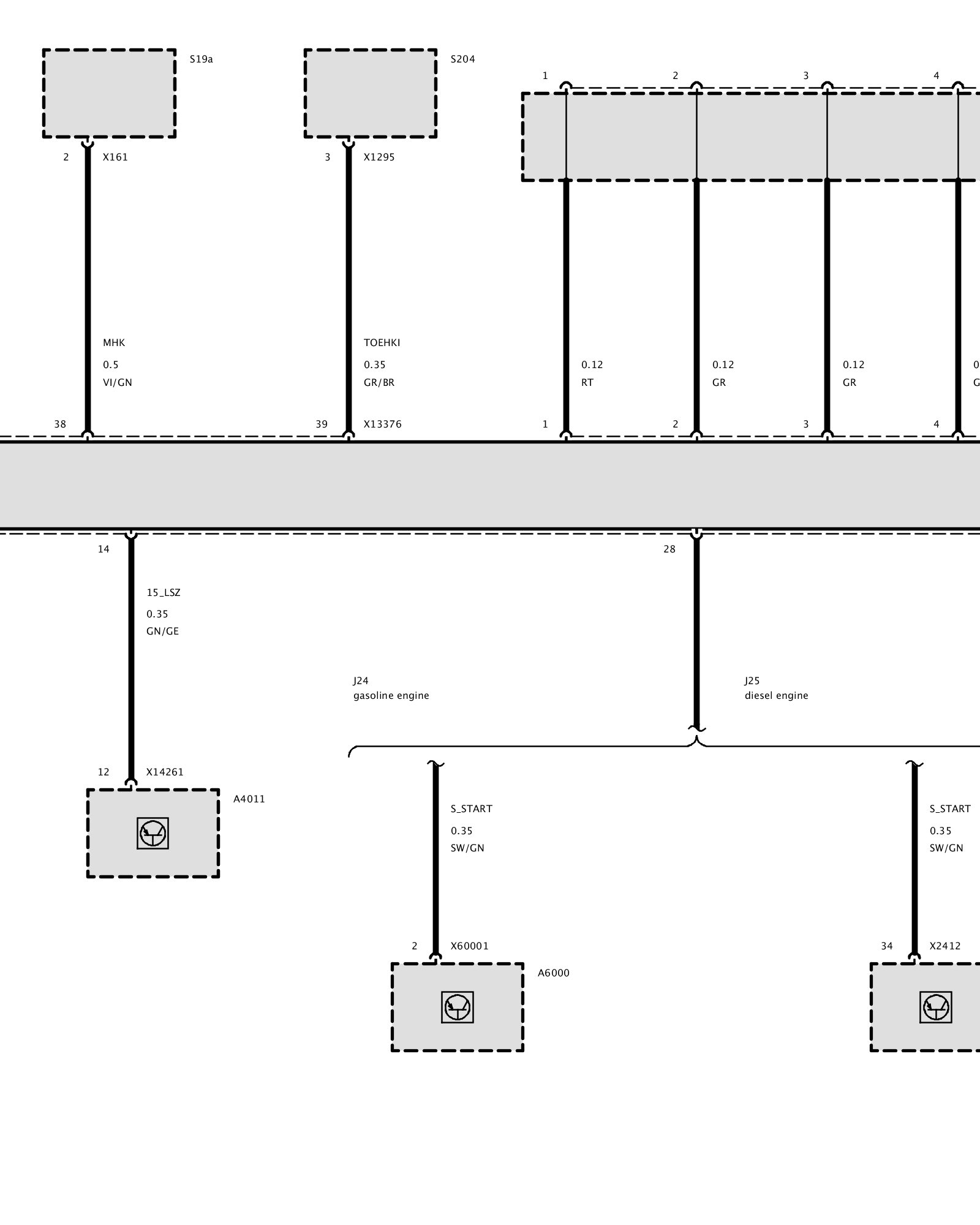

Part 6:
