65 75 100 Removing and Installing/Replacing Module For Passenger Compartment Protection

65 75 100 - Removing and installing/replacing module for passenger compartment protection





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove rear seat back Removing and Installing/Replacing Backrest

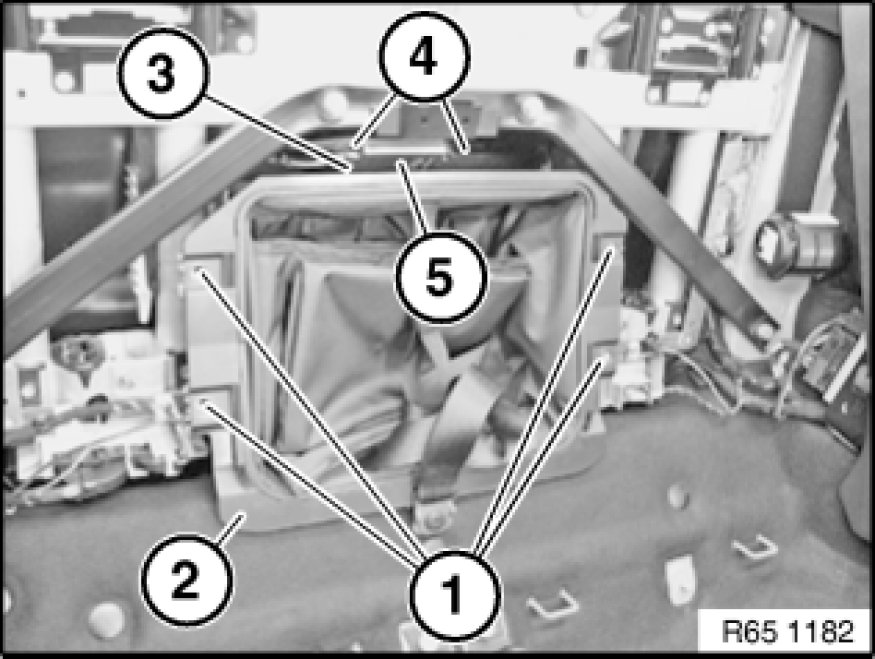

Release screws (1) and lower transportation bag (2).
Disconnect plug connection (3).
Expand catches (4) and remove passenger compartment protection module (5).





Replacement:
Carry out vehicle programming and coding Programming and Relearning.
