65 75 080 Removing and Installing/Replacing Interior Movement Detection Module In Left or Right Front Door

65 75 080 - Removing and installing/replacing interior movement detection module in left or right front door





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove front door trim panel Removing and Installing (Replacing) Front Left or Right Door Trim Panel

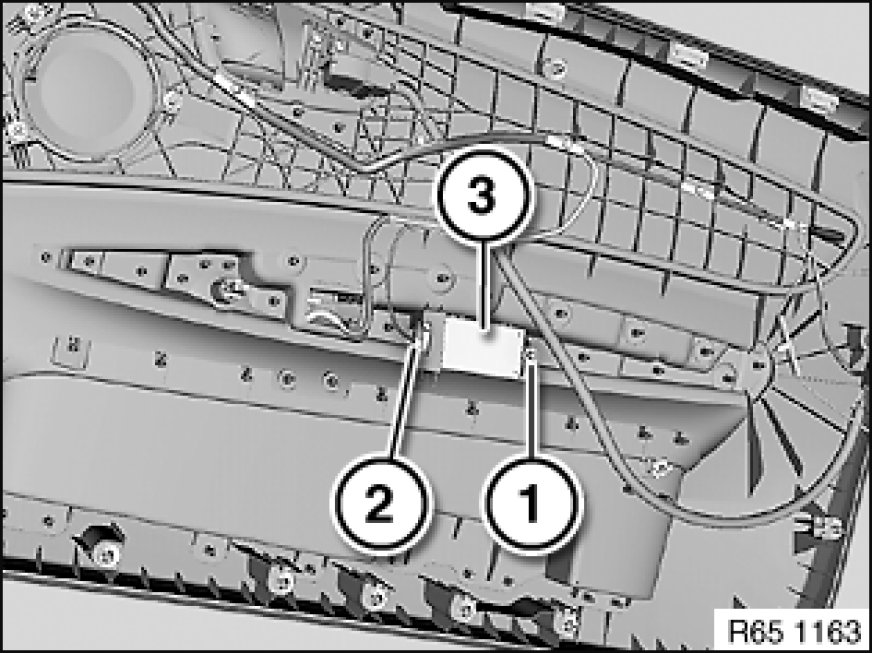

Release screw (1).
Disconnect plug connection (2) and feed out interior movement detection module (3).





Replacement:
Carry out coding/programming Programming and Relearning.
