65 20 405 Removing and Installing/Replacing Aerial For Satellite Digital Audio Radio Service (SDARS)

65 20 405 - Removing and installing/replacing aerial/antenna for Satellite Digital Audio Radio Service (SDARS)





Important!
When bonding the empty housing for the luggage compartment aerial/antenna, it is absolutely essential to adhere to the minimum hardening time Instructions on Gluing Windscreen (vehicle movable)!





Necessary preliminary tasks:
- Remove trim for rear lid

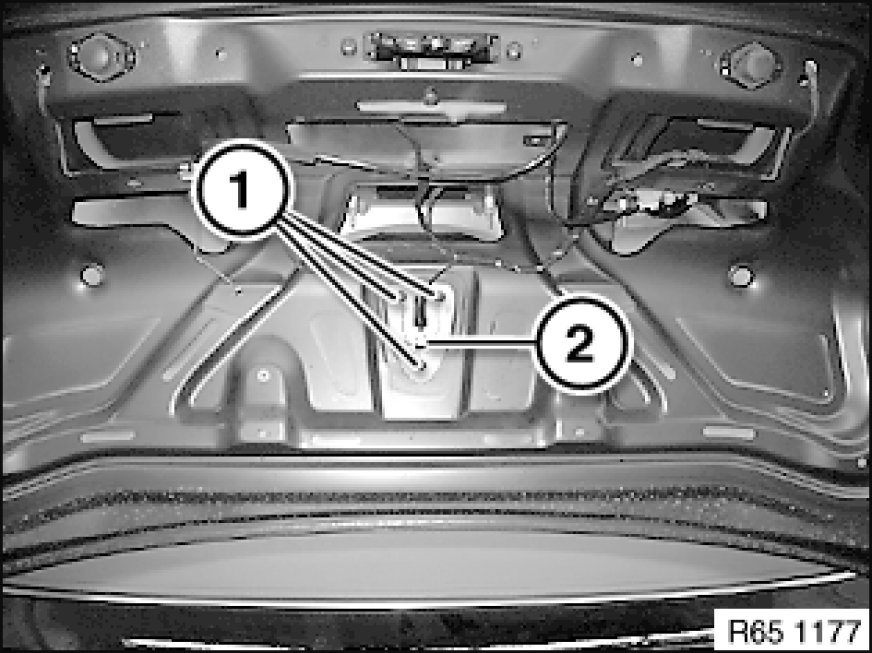

Unscrew nuts (1).
Disconnect plug connection (2) and remove SDARS aerial/antenna.
Tightening torque 65 20 3AZ Specifications.
