Pilot Bearing: Service and Repair

11 21 571 - Replacing roller ball bearing in crankshaft (N52K)





Special tools required:





Necessary preliminary tasks:
- Remove clutch.

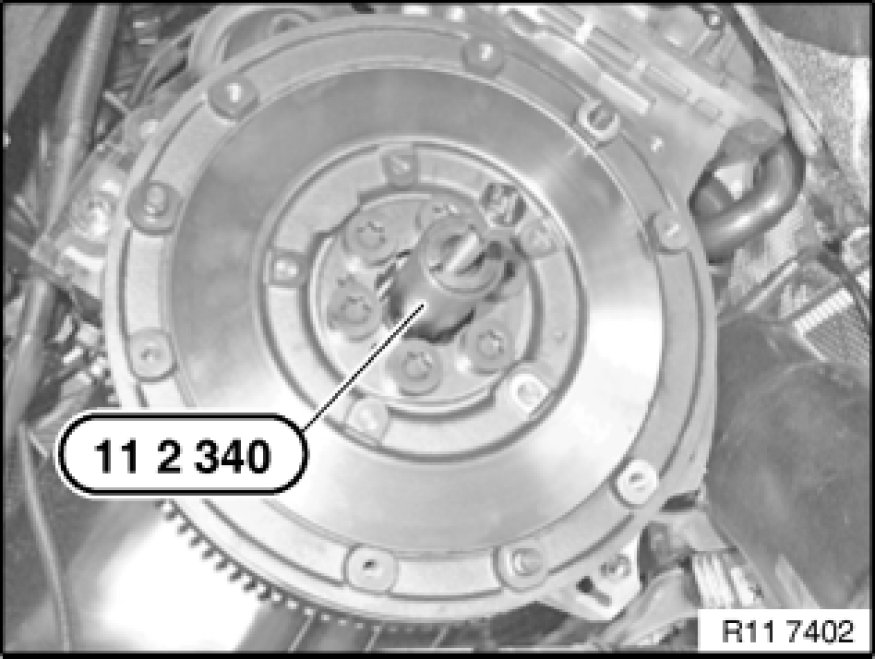

Remove guide bearing with special tool 11 2 340.

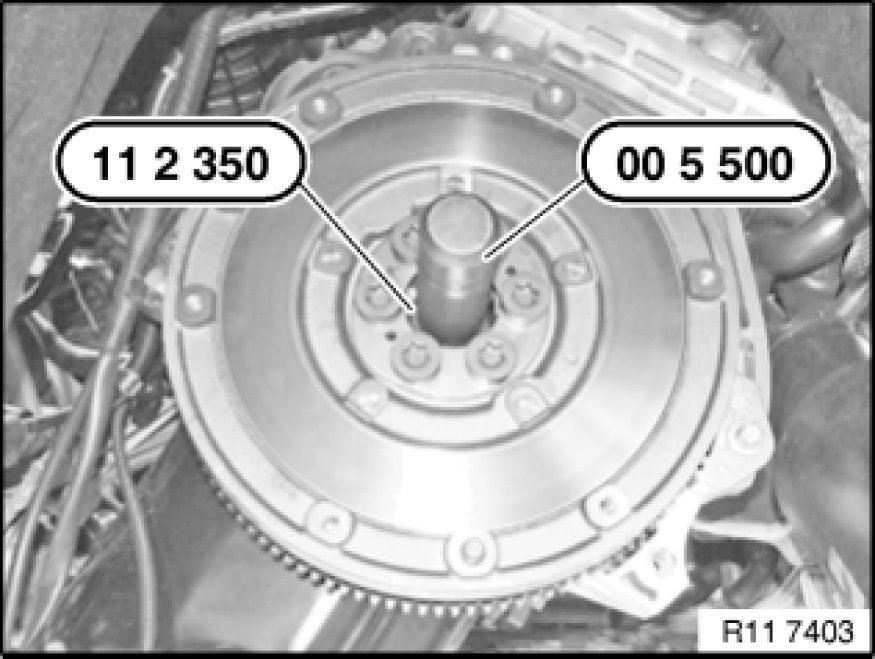

Install new thrust bearing and drive firmly home with special tool 11 2 350 in conjunction with special tool 00 5 500.





Assemble engine.
