64 11 829 Replacing Actuator Drive of Ventilation Flaps

64 11 829 Replacing Actuator Drive Of Ventilation Flaps







Necessary preliminary tasks:
- Remove right glovebox with housing

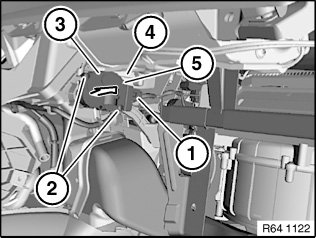

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Detach servodrive for ventilation flaps (3) in direction of arrow from heater/air conditioner (4).

Installation:
Place servodrive for ventilation flaps (3) over guide pin (5).







Replacement:
Servomotors must be re-addressed in the event of replacement.

Addressing can only be carried out with the BMW diagnosis system.

Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors
